AC Motor 85tph 37.05m3 Air Swept Coal Mill Edge Driving

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

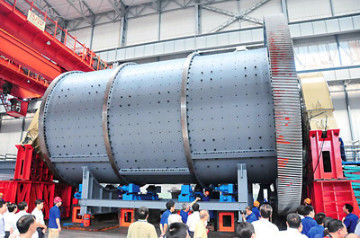

AC Motor 85tph 37.05m3 Air Swept Coal Mill Edge Driving

AC Motor 85tph 37.05m3 Air Swept Coal Mill Edge Driving
AC Motor 85tph 37.05m3 Air Swept Coal Mill Edge Driving

Large Image :  AC Motor 85tph 37.05m3 Air Swept Coal Mill Edge Driving

Product Details:
Place of Origin: Henan, China
Brand Name: ZTIC
Certification: ISO/CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $10,000.00 - $50,000.00 / Set
Packaging Details: Simple packaging for ball mill
Supply Ability: 200 Set/Sets per Year
Detailed Product Description
Name: Air Swept Coal Mill Type: Ball Mill
Motor Type: AC Motor Capacity(t/h): 8-85 Tph
Dimension(L*W*H): 2.1x3.7~3.2x5.8m Weight: 36.7-215 T, 18-85 T
Specification: 2.2x4.4m-3.8x(7.75+3.5)m Particle Size Of Feeding Material (mm): ≤25
Driving Type: Edge-driving, Center-driving Effective Volume: 11.0~37.05m3
Capacity (t/h): 8-85 Power (kw): 250-1400 Kw
Feeding Size: 10--30mm Warranty: 12 Month
Port: QingDao,TianJin,ShangHai
High Light:

37.05m3 Air Swept Coal Mill

,

85tph Air Swept Coal Mill

,

37.05m3 air swept ball mill

Factory Directly Supply Air Swept Coal Mill

Product Description

 Ball mill



Working Principle of Grinding Ball Mill

A cylinder with small diameter and large length is the key parts for wet grate ball mills. It rotates slowly driven by the transmission equipment. Materials are fed into the cylinder from the feeding inlet and smashed by the falling impact and autogenous grinding of steel balls and ores. Due to constant feeding, the pressure propels qualified products to be discharged from the discharging outlet.

Grates are installed in the outlet to compel slurry to discharge, reduce over-grinding and stop discharging steel balls. Among the same production conditions, it has higher production capability.



Advantages

1. Large capacity and continuous work are obvious advantages;

2. Various barrel lining and grinding media, excellent corrosion resistance;

3. Large capacity and crushing ratio; High grinding efficiency, low energy consumption;

4. Large application range, simple structure and convenient maintence;

5. Good sealing performance. It can be adapted to different working conditions;

6. Product fineness is adjustable, uniform and high qualified.

7. Installation and adjustment are very convenient and easy to operate.

Parameters of Air Swept Coal Mill:

Specification (diameter×length ) Rotating speed
(r/min)
Particle size of feeding material (mm) Production  capacity
(t/h)
Loading weight (t) Main motor Main speed reducer Weight (t)
Model Power (kw) Rotating speed (r.p.m) Model Speed ratio
φ2.2×4.4m 22.4 ≤25 8~9t/h 18t YRKK4501-6 250 986 ZD60-11 6.3 36.7
φ2.2×5.8m 22.4 ≤25 5.5~7 23.5~25 Y4005-8 280 750 ZD70-10 5.6 45
φ2.4×4.75m 21.2 ≤25 14 22~24 YR4501-8 315 740 ZD60-8 4.5 49
φ2.4×4+2m 20.2 ≤25 10~11 19 YRKK450-8 250 740 ZDY355 4.5 60
φ2.4×4.5+2m 20.2 ≤25 10~12 20.8 YRKK500-8 280 740 JDX45 4.5 68
φ2.6×(5.25+2.25)m 19.7 ≤25 9~10 28 YRKK500-8 400 740 ZDY450 4.5 87.4
φ2.8×(5+3)m 18.7 ≤25 13~13.5 32 Y5001-8 500 740 JDX560 4.5 102
φ2.9×4.7m 19.1 ≤25 14~19 34.4 YR560-8 500 743 MBY560 5.6 79
φ2.5×3.9m 21 ≤25 14 21 JR138-8 280 740 ZD70-9 5 49.5
φ3×(6.5+2.5)m 18.3 ≤25 17~19 43 YRKK5603-8 630 740 MBY560 5 120
φ3.2×4.8m 16.7 ≤25 20 48 YR630-8 630 740 MBY560 5 118
φ3.2×(6.5+2)m 16.9 ≤25 20 50 YRKK560-8 710 740 JDX630 5 137
φ3.5×8m 17.2 ≤25 55~60 80 YRKK710-8 1000 740 MBY800 6.3 182
φ3.8×(7.75+3.5)m 16.7 ≤25 85 85 YRKK710-8 1400 740 JDX90-WX-2A 5.6 215
AC Motor 85tph 37.05m3 Air Swept Coal Mill Edge Driving 0
Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged      parts

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
