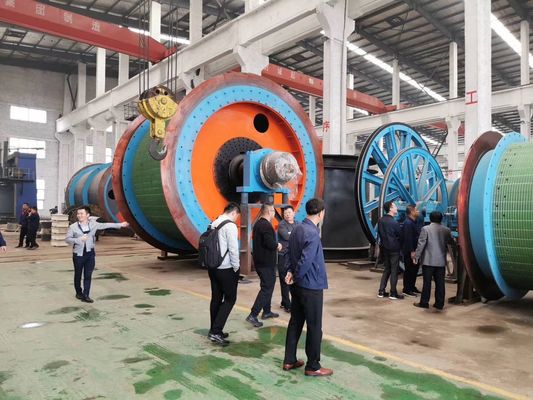

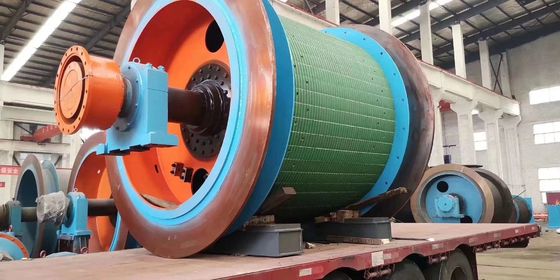

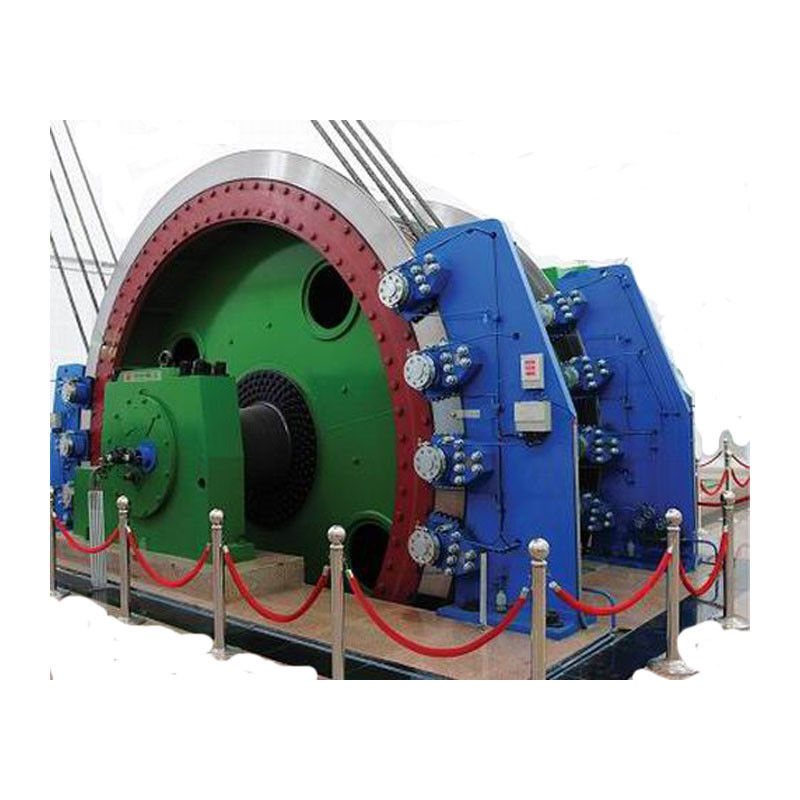

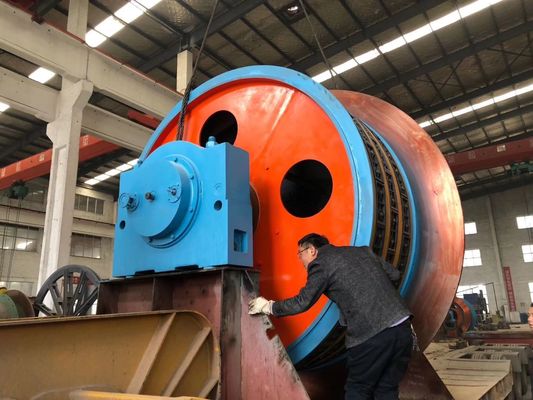

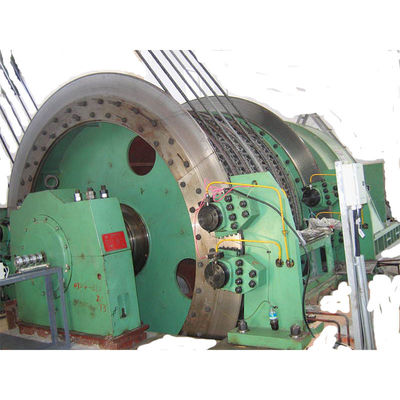

20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting

20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting
20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting 20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting 20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting 20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting 20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting

Large Image :  20kn Wire Rope Electric Blast Furnace Skip Hoist system Material Lifting

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Application: Construction, Mining Product Name: Blast Furnace Skip Hoist
Dimension (mm): Different Model Rated Tension: 20kn
Max Tension: 22kn Reducer Ratio: 54.9
Lifting Capacity: 20kn Lifting Speed: 22m/min
Weight: 550kg Voltage: 220-480V
High Light:

20kn Skip Hoist System

,

Blast Furnace Skip Hoist System

,

20kn lifts and skip hoists

JK fast speed wire rope electric blast furnace skip hoist material lifting



The blast furnace skip hoist is protected against overspeed on the motor side by a mechanical overspeed switch with integrated speed increasing gear. On the drum side two absolute encoders mounted on a distribution gearbox supply position signals. As part of a modernization project outdated sensors need to be replaced with up-to-date systems. Objectives include simplifi- cation of mechanical attachments, elimination of inaccuracies as well as all-round better control response. In addition, susceptibility to EM disturbances is to be reduced and, as a consequence, increase the robustness and availability of the installation.




JK fast speed wire rope electric blast furnace skip hoist mainly is used for material lifting and tract on the weight droops during construction.It also used for crane as main hoist ; It is the special winch of and gantry frame and lifting trolley.It is suitable for construction mine area lifting factory.



Model JK0.5 JK1 JK1.6 JK2
Dimension (mm) 800*650*340 850*820*400 1000*900*520 1200*1000*530
Rated Tension 5kn 10kn 16kn 20kn
Max Tension 5.5kn 11kn 17kn 22kn
Reducer Ratio 36.6 40.59 54.38 54.9
Lifting Capacity 5kn 10kn 16kn 20
Lifting Speed 22 m/min 22m/min 22m/min 22m/min
Weight 160kg 245kg 350kg 550kg





Model JK3.2 JK5 JK8 JK10
Rated Speed 25/30m/min 25/30m/min 25m/min 30m/min
Rope Length 290m 300m 160m 300
Dimension (mm) 1325*1335*840 2250*2500*1300 1533*1985*1045 2250*2500*1300
Weight (kg) 1011 2264 3000 5100
