Product Details:
Payment & Shipping Terms:
|
| Item: | Roller Press | Weight: | 33-313 T |
|---|---|---|---|
| Feed Size Mm: | 25/40 | After-sales Service Provided: | Online Service |
| Production Capacity: | 50-1450 TPH | Output Size Mm: | <2mm 65% <0.08mm 25% |
| Warranty: | 12 Month | Certification: | CE/ISO |
| Applicable Materials: | Mine,stone | Voltage: | 220V |
| High Light: | 941 T/H High Pressure Roller Mill,31T/H High Pressure Roller Mill,941T/H roller mill grinder |
||

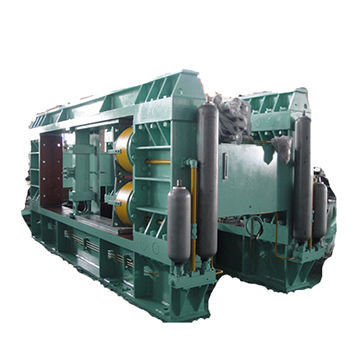

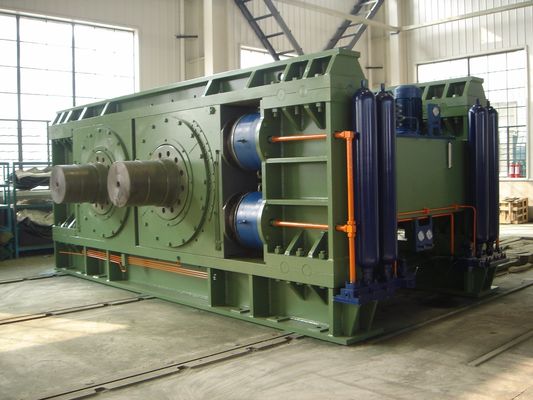

GM 52-20 to GM 200-180 grinding equipment High-pressure roller mill
Mine Roller Press
GM series Mine Roller Press from GM 52-20 to GM 200-180,Our fully equipped laboratory has a HPGR50-20 to undertake any necessary test work.
1. The press roller surface adopts hard alloy stud setting-in structure to increase the life time of the roller sleeve

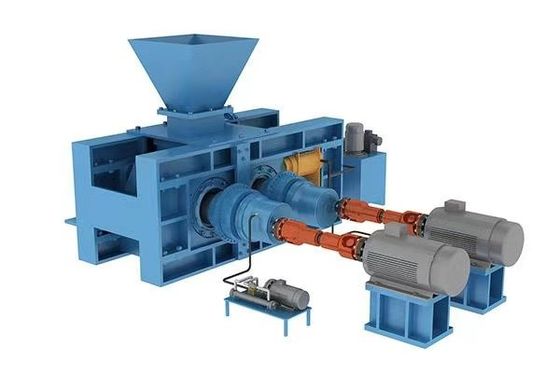

2. Universal coupling-planetary retarder-press roller to consist of shaft flexible drive system
3. Compound structure of non-contact sealing and contact sealing are adopted at the side of the press roller
4. Unique ellipse structure is used for the feeding pipe to make the feeding process smooth
5. Oil spray lubrication system is used for the lubrication of the main bearing
6. The main bearing adopts inner passage fully-sealing structure for cooling
7. The hard alloy welding press roller surface or setting-in surface are available depending on the user’s need.
Applicable scope
1. Applicable for the mineral processing industry; it can be installed before the ball mill as pre-milling equipment or consist of mixing grinding system with ball mill.
2. Applicable for oxide pellet industry instead of the common used damp mill.
3. Applicable for building material and fire-proof material industry; successful application for the grinding of clinker, limestone and bauxite.
Principle structure
High-pressure roller mill is a type of new mineral rock grinding equipment with high efficiency and energy-saving developed based on the lamination crushing principle. The materials enter into the crushing cavity between 2 rollers passing the feeding device with the help of the gravity when working. The material is brought into the cavity continuously. The material is forced to accept the direct pressure from the surface. The 2 rotary rollers will press the material in the crushing cavity solid so that the particles in the group will bear pressure at multiple points. Thus, the material volume weight in the pressing area is 85% of the actual density. The particles are crushed in the group be mutual pressing. Different particle crushing is caused due to different pressures. So the particle size is widely distributed and the piece of material cake is discharged. The material cake contains some sub-particles. There are many cracks in the particles to reduce the particle strength, which is good for the following grinding to reduce the power consumption of the whole milling system significantly.
Type description
|
Type
|
Press roller diameter
(mm) |
Press roller width
(mm) |
Power(kw)
|
Feeding particle size (mm)
|
Product particle size
(mm) |
Passing capacity
(t/h) |
Weight(t)
|
|
|
90%
|
10%
|
70%-80%
|
||||||
|
GM52-20
|
520
|
200
|
2×90
|
≤25
|
26-40
|
≤3
|
31
|
13
|
|
GM65-22
|
650
|
220
|
2×110
|
≤25
|
26-40
|
≤3
|
43
|
19
|
|
GM80-30
|
800
|
300
|
2×132
|
≤25
|
26-40
|
≤3
|
70
|
30
|
|
GM90-30
|
900
|
300
|
2×150
|
≤25
|
26-40
|
≤3
|
129
|
38
|
|
GM100-40
|
1000
|
400
|
2×200
|
≤25
|
26-40
|
≤3
|
192
|
55
|
|
GM100-50
|
1000
|
500
|
2×280
|
≤25
|
26-40
|
≤3
|
240
|
60
|
|
GM120-60
|
1200
|
600
|
2×355
|
≤30
|
26-40
|
≤3
|
312
|
86
|
|
GM120-70
|
1200
|
700
|
2×400
|
≤30
|
26-40
|
≤3
|
403
|
93
|
|
GM120-80
|
1200
|
800
|
2×500
|
≤30
|
26-40
|
≤3
|
460
|
98
|
|
GM140-80
|
1400
|
800
|
2×550
|
≤30
|
26-40
|
≤3
|
538
|
110
|
|
GM140-110
|
1400
|
1100
|
2×800
|
≤30
|
26-40
|
≤3
|
739
|
133
|
|
GM140-140
|
1400
|
1400
|
2×1000
|
≤30
|
26-40
|
≤3
|
941
|
156
|
