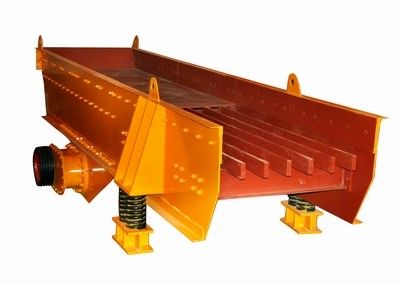

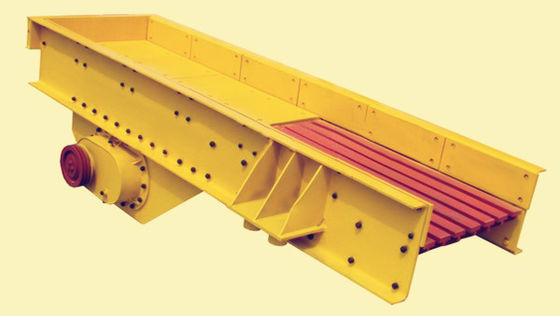

Automatic Mining Raw Rock Small Vibratory Feeder 15 ~ 1300 T/H

Automatic Mining Raw Rock Small Vibratory Feeder 15 ~ 1300 T/H
Automatic Mining Raw Rock Small Vibratory Feeder 15 ~ 1300 T/H
video play

Large Image :  Automatic Mining Raw Rock Small Vibratory Feeder 15 ~ 1300 T/H

Product Details:
Place of Origin: China
Brand Name: ZTIC
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $10,000.00
Packaging Details: Standard packing or according to customer's requirement
Supply Ability: 10.0 Set/Sets per Month
Detailed Product Description
Product Name: Vibrating Feeder Model: GZD,ZSW Series
Capacity(t/h): 15 ~ 1300 T/H Weight: 110 ~ 3700 Kg
Material Size: 120 ~ 800 Mm Motor Speed: 1450 R/m
Conveying Length: 0 ~ 9 Meter
High Light:

1300 T/H Small Vibratory Feeder


1300T/H rotary vibratory feeder


15T/H Small Vibratory Feeder

Small automatic mining raw rock vibrating feeder price


Products Description

Vibrating feeder is used to feed lump, grain and powder material to receiving device from storage bin or hopper at a continuous and even flow during production.

Features and Applications of Mining Vibrating Feeder
1. Easy adjustment, stable flow;
2. Low noise, low power consumption, good performance of regulator, no material clashing;
3. Reliable running, convenient adjustment and installation, light weight, samll voume, easy maintenance.

Ore Vibrating Feeder
Ore vibrating feeder is mainly used for continuous and even feeding of coarse particles and screening of fine aggregate, thus enhancing crushing capacity. When it is in operation, the ore vibrating feeder can send massive and granular materials to the receiving device evenly, regularly and continuously. In the sand making production line, its even and continuous feeding helps to avoid feeding-hole blocking. It can also roughly screen the materials.
Special Advantages of China Vibrating Feeder
China feeder series have two types: vibrating feeder and linear feeder. Vibrating feeder has two engines. Users can adjust
vibrating frequency of feeder freely so as to completely control feeding speed of stone materials to ensure smooth operation of the production line.
Working Principle of Vibrating Feeder
The ore vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, thus avoiding the further crushing, and therefore, screening purpose can be reached.
Automatic Mining Raw Rock Small Vibratory Feeder 15 ~ 1300 T/H 0
Q: Why we believe in luoyang zhongtai industries co., ltd: A: 1. More than 30 years experience. 2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts. 3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates. Q:Delivery time A: parts lead time 1-2months, machines 2-3months. Q:Payment terms A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping Q: Quality warranty? A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply. Q: After sales service? A: we can supply technical guide for machines running test and parts maintenance if end user needs.
