Fine Grinding Equipment 110tph Mine Ball Mill For 35 Mesh Materials

Name: Fine Grinding Equipment 110tph Mine Ball Mill For 35 Mesh Materials
Brand: ZTIC
SKU: Customized
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (179 reviews)

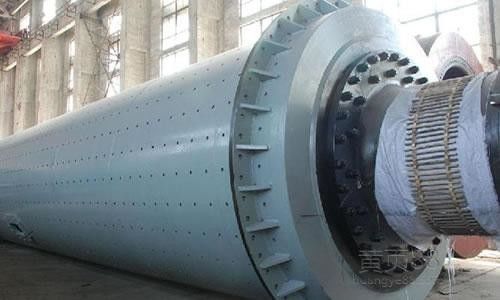

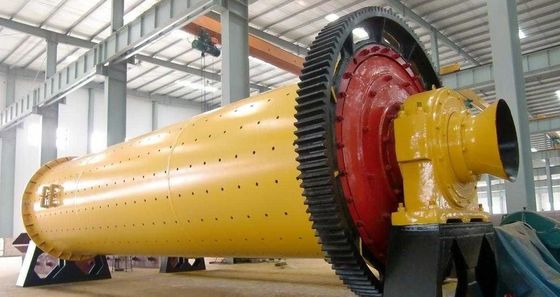

Large Image : Fine Grinding Equipment 110tph Mine Ball Mill For 35 Mesh Materials

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	regular packing
Delivery Time:	1-2 months
Payment Terms:	L/C, T/T
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Item:	Mine Ball Mill	Capacity:	13-110 Tph
Model (m):	2.2x6.5-4.6x14 M	Weight:	53-310 T
Feed In Size Mm:	<25	Medium Load:	31-285 T
2.2x6.5 Cement Ball Mill:	13-14 Tph	3.2x11Cement Ball Mill:	40-45tph
4.2x13Cement Ball Mill:	150tph	4.6x14Cement Ball Mill:	95-110tph
High Light:	110tph Mine Ball Mill , 35 Mesh Mine Ball Mill , 110tph Fine Grinding Equipment

high quality fine grinding equipment mine ball mill for 35 mesh materials

Mine Ball Mill Application:

A ball mill grinds ores and other materials to a typical product size of 35 mesh or finer.

The feed to a ball mill is prepared by...
· Single or multistage crushing and screening
· Crushing, screening, and/or rod milling
· Primary crushing and autogenous/semiautogenous grinding

Mine Ball Mill Normal feed sizes:
· 80% passing 1/4" (6 mm or finer) for hard ores
· 80% passing 1" (25 mm or finer) for softer ores
(Larger feed sizes can be tolerated depending
The length to diameter ratio of cylindrical mills range from 1 to 1 through 3 to 1. When the L/D ratio is 2 to 1 or greater, werefer to the mill as a Tube Mill.
The two most popular types of ball mills are…

Grate or Diaphragm Discharge Ball Mill

In the discharge end of this mill, a slotted full diameter or partial diameter grate with discharge lifter assembly conveys the material to the discharge trunnion opening. The grate serves to retain balls, tramp, and coarse material. A gradient created between the feed opening and the discharge slots eases the flow of material.
Trunnion Overflow Discharge Ball mill
A trunnion overflow mill has an open discharge end. Material flows through the trunnion as a result of the pulp gradient between the feed and discharge openings. A reverse helix in the discharge trunnion liner retains balls in the mill.
Feature
♦The cylindrical mill adopts the driving type edge-driving, center-driving, edge-driving with multi-point meshing, etc; driven by asynchronous motor +reducer +pinion and gear as well as synchronous motor +

air lclutch + pinion and gear.
♦Generally supported by static-dynamic pressure bearing on both ends. Fuuly closed self-aligning 120º osculation rocker bearing is used. Also single or double slipper staic- dynamic bearings can be used. The bush is made by NC machine.

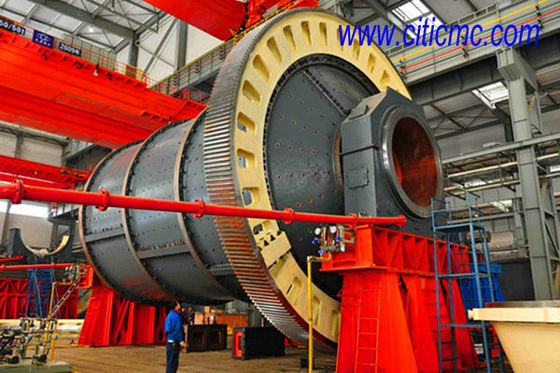

♦ The large open gear is designed using AGMA standard, Equipped with reliably sealed gear housing and grease ahtomatic spraying lubrication system.

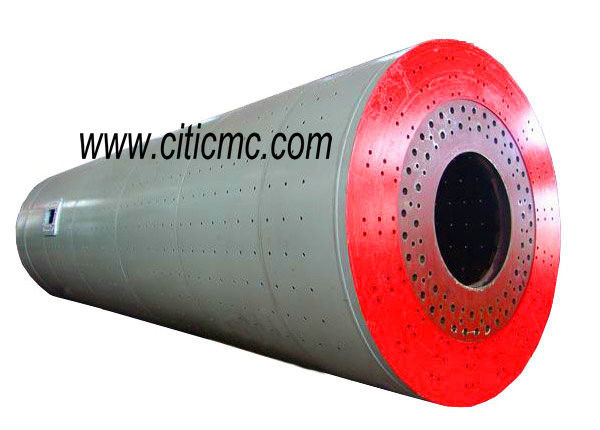

The shell is key part of a mill. Carry out finite element analysis on it with computer to ensure the reliable operation;

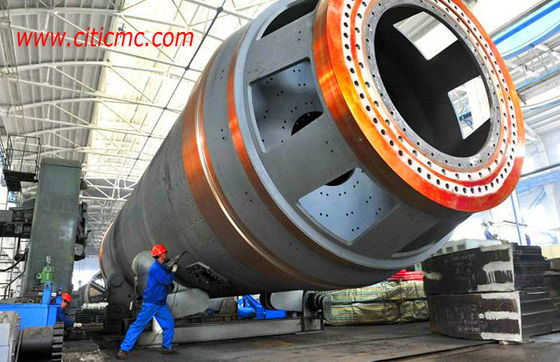

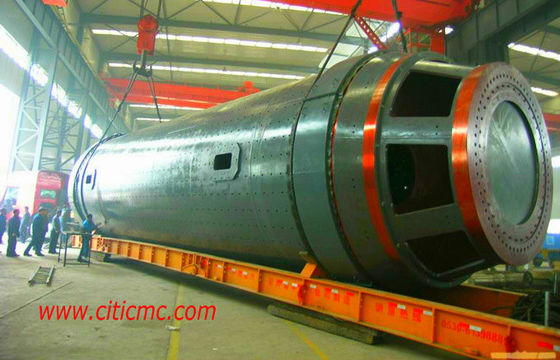

♦ The shell is automatically welded, ultrasonic inspected, wholly annealed and machined by large special machine tools on one chucking; there special seal on static-dynamic connection parts , ch as feed and discharge hoper, trunnion, etc, to prevent oil and slurry leakage;
♦ The liner is of wear-resistance material mad by our company, wich has been specially heat-treated, with high hardness and long service life. Also other wear-resistance casting or rubber liner can be used;
♦ There are slow speed drive for medium and large mill;
♦The high and low pressure lubricating station is equipped for medium and large mill;
♦The control and protection system is controlled by PLC.

Main Technical Parameters of Overflow Ball Mill:

Model	Cylinder diameter	Cylinder length	Effective volume	Rotate speed	Max. ball loading capacity	Motor		Size (L×W×H)	Weight
Model	Cylinder diameter	Cylinder length	Effective volume	Rotate speed	Max. ball loading capacity	motor	speed	Size (L×W×H)	Weight
	mm	mm	m³	r/min	t	kw	r/min	m	t
MQY15×30	1500	3000	5	26.6	9	95	742	7.4×3.4×2.8	18.5
MQY15×36	1500	3600	5.7	26.6	10.6	95	742	8.0×3.4×2.8	17.22
MQY18×61	1830	6100	13.4	24.5	24.6	220	736	10.2×5.1×4.0	37.3
MQY21×30	2100	3000	9.4	22.1	15	200	740	8.5×4.65×3	45
MQY24×30	2400	3000	12.2	21	22.5	250	980	8.8×4.7×4.4	55
MQY24×70	2400	7000	26.66	21	48	475	740	14.3×5.8×4.4	67
MQY27×36	2700	3600	18.5	20.5	39	400	187.5	9.8×5.8×4.7	61.34
MQY27×40	2700	4000	20.5	20.24	38	400	187.5	10.4×5.8×4.7	70
MQY27×45	2700	4500	23.5	20.5	43.5	500	187.5	12.5×5.8×4.7	76
MQY27×60	2700	6000	34.34	19.5	53	630	589	13.5×5.9×4.7	71.2
MQY28×54	2800	5400	30	19.5	55.2	630	167	13×5.83×4.7	97.8
MQY28×80	2800	8000	43	20	78.6	800	137	16.5×7.3×5	115
MQY30×11	3000	11000	69.2	17.3	100	1250	429	28.9×3.8×5	227.8
MQY32×36	3200	3600	26.3	18.3	48.4	500	167	14.3×7.3×6	116.94
MQY32×40	3200	4000	29.2	18.2	60	560	980	16.7×7.3×6	121.4
MQY32×45	3200	4500	32.9	18.3	60.5	630	167	13×7.0×5.82	124.23
MQY32×54	3200	5400	39.4	18.3	73	800	167	14.2×7.0×5.82	129
MQY32×64	3200	6400	46.75	18.3	86	1000	167	15.2×7.0×5.8	140
MQY32×75	3200	7500	55.5	18.3	102	1250	743	17.7×8.4×6.3	154
MQY32×90	3200	9000	64.2	18.3	106.6	1250	150	18.5.7.3×6	173
MQY34×45	3400	4500	37	18.4	74.6	800	167	11.5×7×6.1	129.8
MQY34×56	3400	5600	45.8	17.9	84.3	1120	985	16.7×7.6×6.3
MQY36×45	3600	4500	41.4	17.25	76	1000	167	13×7.3×6.3	144.1
MQY36×50	3600	5000	46.7	17.5	85.96	1250	167	15×7.6×6.2	150
MQY36×50	3600	5000	46.7	17.3	85.96	1250	429	23×4.6×6.3	176
MQY36×56	3600	5600	55.4	17.76	106.3	1250	750	14.4×8×6.3	159.7
MQY36×60	3600	6000	55.7	17.3	102.5	1250	429	24×4.6×6.3	138.73
MQY36×60	3600	6000	54	17.3	102	1250	167	15.6×8.3×6.3	162.7
MQY36×61	3600	6100	55.36	17.76	106.3	1200	980	15.8×8.5×6.2	164.1
MQY36×85	3600	8500	79	17.4	131	1800	743	20×8.2×7.1	251.89
MQY36×90	3600	9000	83.5	17.4	138	1800	743	28×4.6×5.6	286
MQY38×67	3800	6700	70	16.5	130	1400	743	19×8.2×7.1	185.2
MQY40×60	4000	6000	69.8	16.0	126	1500	200	17.4×9.5×7.6	203.5
MQY40×67	4000	6700	78	16.0	136.3	1600	200	15.6×9.6×7.3	206.2
MQY40×135	4000	13500	155	16	233	3300	200	23×10×4.9	343
MQY43×61	4270	6100	80	15.67	144	1750	200	14×10×7.7	215.3
MQY50×64	5030	6408	120	14.4	251	2600	200	14.6×11×9.1	318.5
MQY50×83	5030	8300	152.3	14.4	266	3300	200	22×10.5×9	402.6
MQY55×65	5500	6500	143.3	13.8	264	3400	200	18.5×9.8×8.9	451.5
MQY50×85	5500	8500	187.4	13.8	335	4500	200	20.5×12×9.8
MQY55×65	5500	6500	143.3	13.8	264		3400	200
MQY50×85	5500	8500	187.4	13.7	335		4500	200
MQY55×88	5500	8800	191.5	13.7
MQY60×95	6700	9500	249.3	13
MQY67×116	6700	11600	385	12.5
MQY73×115	7300	11500	495	12
MQY80×120	8000	12000	570.5	11.5

Aftersales service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS

ZTIC's Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
ZTIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts

3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.

Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping

Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
