M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price

Large Image : M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	regular packing
Delivery Time:	1-2 months
Payment Terms:	L/C, T/T
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Type:	Girth Gear	Usage:	Rotary Kiln
Quality Control:	ISO/CE	Size:	Customized Size
Material:	Carbon Steel,Alloy Steel,42CrMo,35CrMo,34CrNiMo6	Weight:	Max 50T Per Piece
Structure:	Forging,casting	Processing:	Forging, Rough Machining, QT, Finish Machining
Module:	Up To M200	Application:	Ball Mill, Rotary Kiln
High Light:	M200 Ring Mill Girth Gear , 50T Ring Mill Girth Gear , 50T Rotary Kiln Girth Gear

Max 50T mill ring girth gear cement kiln cast steel girth gear and spur gear

Rotary kiln spur girth gear used as the actual mechanical part in an engine, which need to drive for the long time rotation, so the quality of the gear will be required very high in the actual manufacture.

Our company can produce different type gear ring accroding to the customer's drawing and requirments.

Product Name	girth gear and and spur gear
Material	Carbon steel,Alloy steel,42CrMo,35CrMo,34CrNiMo6
Weight	Max 50T per piece
Structure	Forging,casting
Heat Treatment	Spur gear,double helical gear,helical gear,horringbone Gear
Heat treatment	Quenching and tempering
Processing	Forging, rough machining, QT, finish machining
Module	Up to M200
Inspection	Raw material inspection, UT,physical property test,dimension inspect
Application	Ball mill, rotary kiln

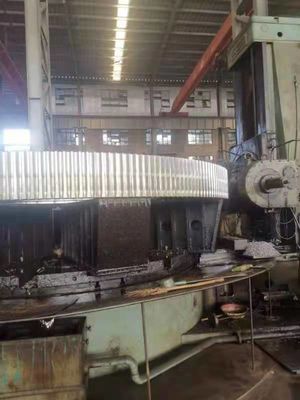

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 1

Product Advantages

Heavy load capacity,long lifespan.
High precision,large diameter and module
Support welding

item	description
normal materials	45 steel, 35simn
better materials	35crmo, 42crmo

42CRMO STEEL DATA

化学成份 CHEMICAL LIST

编辑

碳 C :0.38～0.45%

硅 Si:0.17～0.37%

锰 Mn:0.50～0.80%

硫 S :允许残余含量≤0.035%

磷 P :允许残余含量≤0.035%

铬 Cr:0.90～1.20%

镍 Ni:允许残余含量≤0.030%

铜 Cu:允许残余含量≤0.030%

钼 Mo:0.15～0.25% [1]

力学性能 MECHANICAL DATA

编辑

抗拉强度 σb (MPa):≥1080(110)

屈服强度 σs (MPa):≥930(95)

伸长率 δ5 (%):≥12

断面收缩率 ψ (%):≥45

冲击功 Akv (J):≥63

冲击韧性值 αkv (J/cm2):≥78(8)

硬度 :≤217HB [1]

试样尺寸:试样毛坯尺寸为 25mm

物理性能 PHYSICAL DATA

编辑



1)临界点温度(近似值) Critical point temperature (approximate value)

:Ac1=730°C,Ac3=800°C,Ms=310°C.



2)线胀系数:温度 Linear expansion coefficient: temperature

20~100°C/20~200°C/20~300°C /20 ~400°C/20~500°C /20~600°C,线胀系数

linear expansivity: 11.1×10K/12.1×10K/12.9×10K/13.5×10K/13.9×10K14.1×10K.

3)弹性模量:温度 Modulus of elasticity: temperature 20°C/300°C/400°C/500°C/600°C,

弹性摸 Elastic modulus 210000MPa/185000MPa/ 175000MPa/165000MPa/15500oMPa

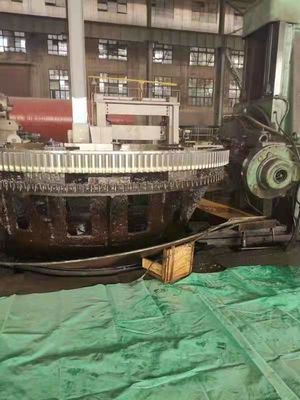

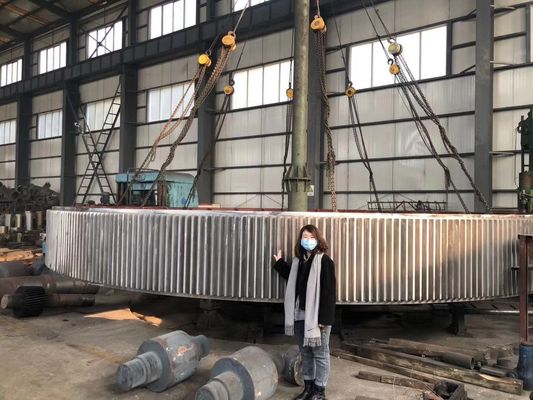

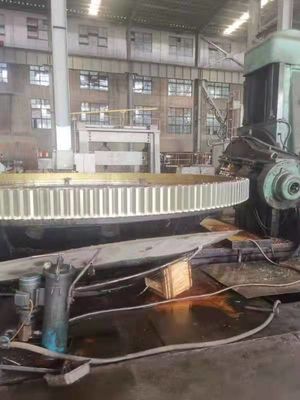

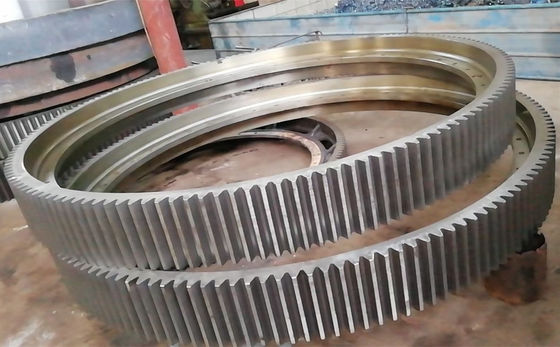

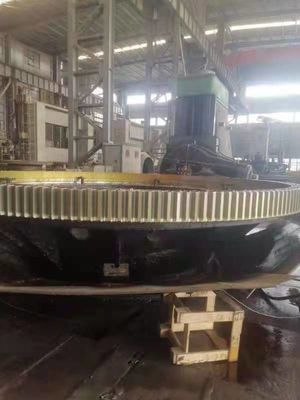

girth gear for ball mill and rotary kiln pictures

item	remark
normal materials	45 steel, 35simn steel
better materials	35cromo, 42crmo

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 2

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 6

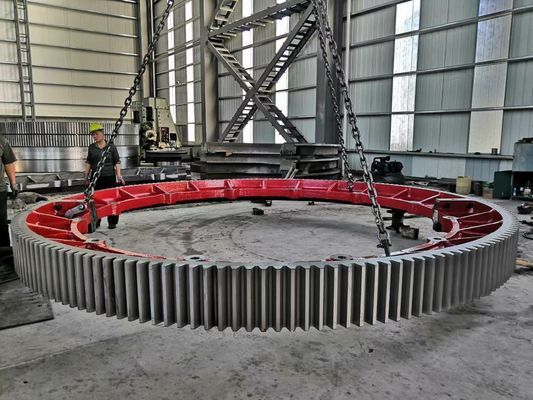

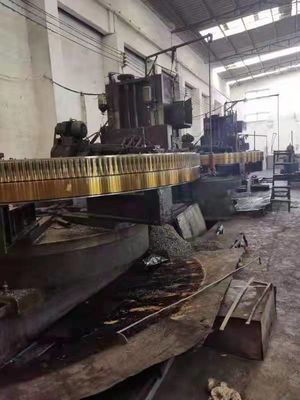

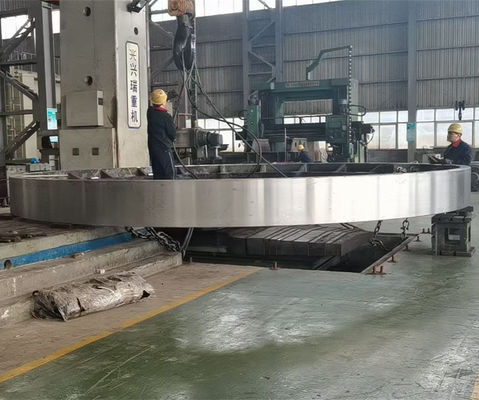

compny show

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 7

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 8

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 9

M200 Max 50T Ring Mill Girth Gear Cement rotary kiln girth gear and spur gear factory price 10
