Product Details:
Payment & Shipping Terms:
|
| Housing: | Cast Iron | Gears: | Helical Gears |
|---|---|---|---|
| Input Configurations: | Equipped With Electric Motors | Applicable Motors: | AC Motor |
| Output Configurations: | Solid Shaft Output | Output Shaft Dia.: | 20-120mm |
| Input Shaft Dia.: | 16-70mm | Power(kW): | 0.18~160 |
| Ratio: | 3.83~196.41 | Max. Torque(Nm): | 85-18000 |
| High Light: | 196.41 Gear Reducer Gearbox,196.41 inline speed reducer,3.83 Gear Reducer Gearbox |
||

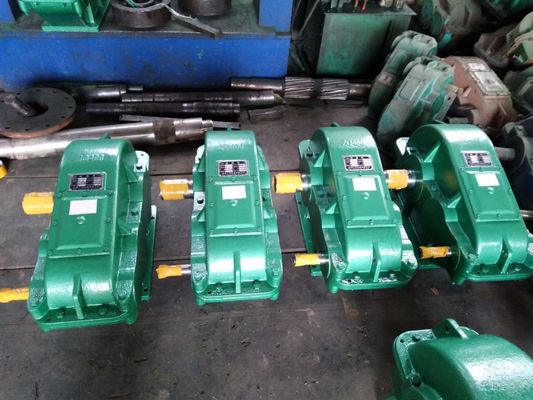

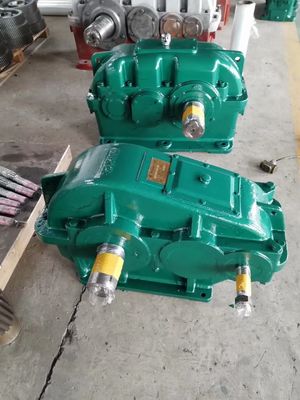

Cast Iron gearbox reducer with High reduction ratio and torque density
Components:
1. Housing: Cast Iron
2. Gears: Helical Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC or NEMA Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors, Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output
Models:
R Series (Foot-mounted): R18~R168
RS Series (Foot-mounted, Solid Shaft Input)
RF Series (Flange-mounted): RF18~RF168
RFS Series (Flange-mounted, Solid Shaft Input)
RX Series (1 Stage, Foot-mounted): RX38~RX158
RXS Series (1 Stage, Foot-mounted, Solid Shaft Input)
RXF Series (1 Stage, Flange-mounted): RXF38~RXF158
RXFS Series (1 Stage, Flange-mounted, Solid Shaft Input)
RM Series (agitator gearboxes): Specially designed for agitating applications
Features:
1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)
Gearbox Parameters
