0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

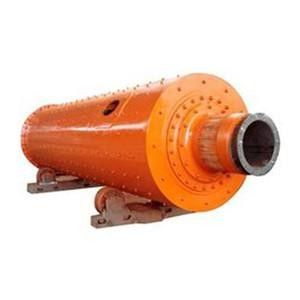

0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry

0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry
0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry

Large Image :  0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 30000 sets per month
Detailed Product Description
Drum Size(m): 0.9x1.8 Speed (r/min): 38.8
Ball Weight(t): 1.92 Feed Size(mm): 0-20
Output Size(mm): 0.074-0.6 Capacity (t/h): 0.4-2.14
Power (kw): 22 Weight(t): 5.34
High Light:

Fine Powder Ore Grinding Mill

,

0.9x1.8M Ore Grinding Mill

,

2.14TPH ultra fine powder grinder

Product Introduction:

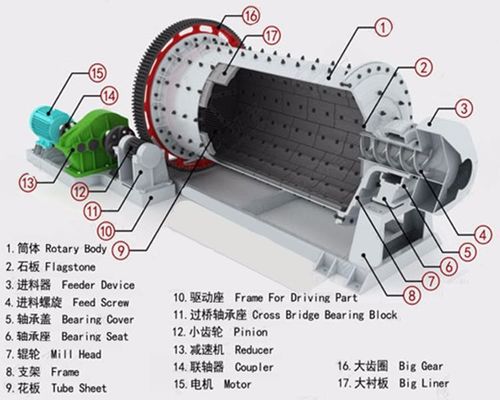

Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements. Ball Mills consist of a large cylinder which slowly rotates around a horizontal axis. The cylinder is partially filled with the material to be ground plus the grinding medium (metal grinding balls). Inside the cylinder, the medium will be lifted to a certain height under the action of centrifugal force and then drop or fall, grinding the ore in between the balls as they interact. Feed material to be ground enters the cylinder via a hopper on one end and after being crushed by the grinding medium is discharged at the other end.

0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 0

Application Field:
It is widely used in the mining process, and it has a wide range of usage in grinding mineral or material into fine powder, such as gold, iron, zinc ore, copper, etc.



Performance Characteristics:
1. High beneficiation efficiency, high fineness of ore powder.
2. Large discharge port, large handling capacity.
3. High production capacity, smooth operation.
4. Easy to install and maintain

0.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 10.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 20.9x1.8M Fine Powder Ore Grinding Mill For Mineral Processing Industry 3

Performance Parameter



Model
Drum Size(m)
Speed
(r/min)
Ball Weight(t)
Feed Size(mm)
Output Size(mm)
Capacity
(t/h)
Power
(kw)
Weight(t)
MQZ0918
0.9x1.8
38.8
1.92
0-20
0.074-0.6
0.4-2.14
22
5.34
MQZ1224
1.2x2.4
31
4.8
0-20
0.074-0.6
0.4-6.8
55
13.43
MQZ1245
1.2x4.5
31
5.2
0-20
0.074-0.6
1.6-12
75
17.4
MQZ1530
1.5x3
27.5
8.1
0-25
0.074-0.4
2.9-16.5
95
18.6
MQZ1557
1.5x5.7
29.2
15
0-25
0.074-0.4
4-25
130
24.54
MQZ1836
1.8x3.6
23.9
11
0-25
0.074-0.4
8-40
155
33
MQZ2136
2.1x3.6
23.8
27
0-25
0.074-0.4
8-61
210
46.8
MQZ2436
2.4x3.6
22
28
0-25
0.074-0.4
7-95
240
73
MQZ2465
2.4x6.5
22
36
0-25
0.074-0.4
7-110
310
76
MQZ2736
2.7x3.6
21.9
39
0-25
0.074-0.4
13-145
400
77
MQZ2740
2.7x4.0
21.9
43
0-25
0.074-0.4
13-150
400
91
MQZ3060
3x6
19
70
0-25
0.074-0.4
100-145
800
155
