Product Details:
Payment & Shipping Terms:
|
| Motor Type:: | DC MOTOR | Capacity(t/h):: | 7.5-17 |
|---|---|---|---|
| Rotary Speed(r/min): | 21-38 | Weight Of Inner Ball (t): | 1.5-38 |
| Feeding Size (mm): | ≤25 | Output Size (mm): | 0.075-0.89 |
| Capacity (t/h): | 0.65-35 | Motor Power(kw): | 18.5-475 |
| Weight (t): | 3.6-62 | ||
| High Light: | 17 TPH Ball Mill Equipment,7.5 TPH Ball Mill Equipment,Wet Grinding industrial ball mill |
||
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Features of our Ball Mill
1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.

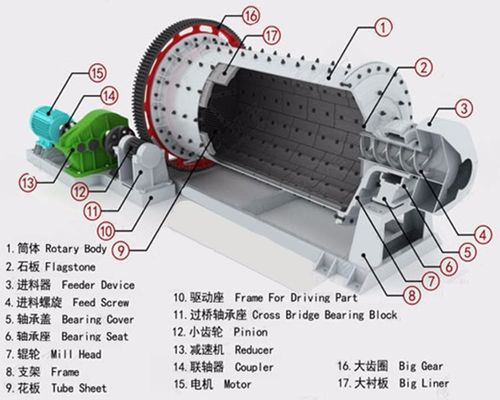

2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.
3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.
4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.
Working Principal
The ball mill is a homitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameter
| Model | Rotary Speed(r/min) | Weight of Inner Ball (t) | Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power(kw) | Weight (t) |
| φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| φ1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
| φ1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| φ1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
| φ1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
| φ1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
| φ1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
| φ1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| φ1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
| φ2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| φ2200×6500 | 22 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
| φ2200×7500 | 22 | 33 | ≤25 | 0.075-0.4 | 16-29 | 380 | 56 |
| φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-35 | 475 | 62 |
