Product Details:
Payment & Shipping Terms:
|
| Name: | Concrete Mixing Station | Application: | Cement |
|---|---|---|---|
| Productivity: | 75m³/h | Discharge Height: | 3.8 M |
| Materials: | Wet And Dry | Place Of Origin: | Henan, China |
| Type: | Cement Plant Equipments | Warranty: | 12 Month |
| High Light: | 75m3/h Concrete Mixing Station,Modular Structure Concrete Mixing Plant,Medium Size Concrete Mixing Plant |
||
I. Introduction to performance
HZS75 concrete mixing plant is a fully automatic concrete mixing equipment composed of batching, mixing, electrical control and other parts.It is one of cement plant equipments suitable for construction sites of medium and above scale, prefabricated parts factory and commercial concrete factory.Its main features:
(1) The modular structure, the machine installation, relocation is very convenient, low equipment cost.
The main machine adopts JS1500 type forced concrete mixer with good mixing quality and high efficiency.
Aggregate adopts batching machine, accurate measurement, high production efficiency.
Cement, water, liquid admixture ingredients are measured by electronic scale, high accuracy of ingredients.
Water supply system adopts pump pressure principle to speed up the water flow and spray evenly.
Aggregate feeding adopts belt conveyor, with long service life and high working efficiency.
The main components of electrical control system are all domestic well-known brands, reliable performance, easy operation and use, with printing function.
(2) Overall beautiful and generous, easy to install and disassemble, easy to repair and replace accessories;
All material scales adopt independent measurement, one scale and one table, improve the measurement accuracy;
All powder in the transportation, measurement, delivery process are in a closed state, completely eliminate dust emissions all parts of the use of reliable performance, smooth transmission mechanism, effectively reduce noise;
Advanced control system, using the world's smallest ingredients control instrument, ingredients accurate and stable, advanced calculation method, effective control error;Has the fault diagnosis system, can guide and help the user to troubleshoot;Formula storage and call flexible, can call any formula at any time.
2.Main technical parameters
| Model | HZS75 | Theoretical productivity | 75 m³/h |
| Mixer model | JS1500 | Discharge height | 3.8 M |
| The stirring power | 2x30kw | Maximum aggregate size | 60/80mm |
| Batching model Number | PLD2400 | Aggregate species | 4 |
| Cement weighing maximum | 3000kg | Water weighing maximum | 1500kg |
| Maximum weight of additive | 50kg | Aggregate weighing maximum | 6000kg |
3.Main configuration
| Name | specifications | Quantity | Unit | |
| JS1500 mixer (3.8m discharge) | Mixing console | JS1500 | 1 | set |
| The main reducer | JS2000 | 2 | set | |
| Main motor | 30Kw | 2 | set | |
| Electric concentrated oil pump | 1 | set | ||
| hydraulic | Hydraulic pressure to open the door | 1 | set | |
| Barrel cover and viewing hole device | 1 | piece | ||
| chassis | 1 | set | ||
| leg | 1 | piece | ||
| Answer the hopper | 1 | piece | ||
| Walk station | 3 | set | ||
| guardrail | 1 | set | ||
| The ladder | 1 | piece | ||
| Liner and blade | High wear resistant metal | 1 | set | |
| Feeding system | Electric drum | 5080-18.5-2.0 | 1 | set |
| The belt frame | C300 | 1 | set | |
| Herringbone belt | B=800mm | 1 | piece | |
| Picking tip | 1 | set | ||
| Roller set | 1 | set | ||
| The tail stick | 1 | set | ||
| leg | 1 | set | ||
| PLD2400 four warehouse accumulator belt scale batching machine | The belt drives the roller mechanically | 4080-11-1. 6 | 1 | set |
| Belt tail frame | 1 | set | ||
| Flat belt | bandwidth of 800 | 1 | piece | |
| Belt weighing machine | 1 | set | ||
| Passive rolling device | 1 | set | ||
| Groove roller group | 1 | set | ||
| Cleaning device | 1 | set | ||
| Storage bin | 4 | piece | ||
| cylinder | SC100 x 275 | 4 | piece | |
| The overall structure | 1 | piece | ||
| Cement metering system | Weighing hopper | 1 | piece | |
| stents | 1 | set | ||
| Pneumatic butterfly valve | Ф 300 mm | 1 | piece | |
| Water metering system | Weighing hopper | 700Kg | 1 | piece |
| stents | 1 | piece | ||
| Pneumatic butterfly valve | Ф 100 mm | 1 | piece | |
| The water pump | 3.0 Kw | 1 | set | |
| The water tank | 2.0 m³ | 1 | set | |
| Upper water line valve | 1 | set | ||
| Admixture measurement | Admixture metering box | 40Kg | 1 | piece |
| Pneumatic butterfly valve | Ф 75 mm | 1 | piece | |
| stents | 1 | set | ||
| Admixture pump | 1 | piece | ||
| Piping and valves | 1 | set | ||
| Screw machine | 8 meters | Ф 219 mm | 2 | set |
| Pneumatic system | Pneumatic components | 1 | set | |
| Air compressor | 0.6 m³ | 1 | set | |
| Solenoid valve | 1 | set | ||
| Oil-water separator | 1 | piece | ||
| Piping and joint | 1 | set | ||
|
Standard Automatic Control System (INDUSTRIAL Machine Mode) |
The computer | 1 | set | |
| display | 1 | block | ||
| The printer | 1 | set | ||
| Operation counters | 1 | set | ||
| Electrical appliances | 1 | set | ||
| The wire | 1 | set | ||

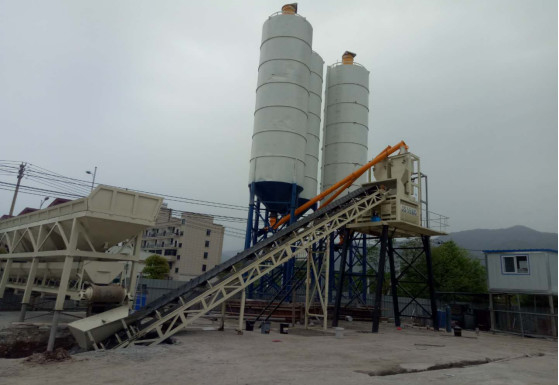

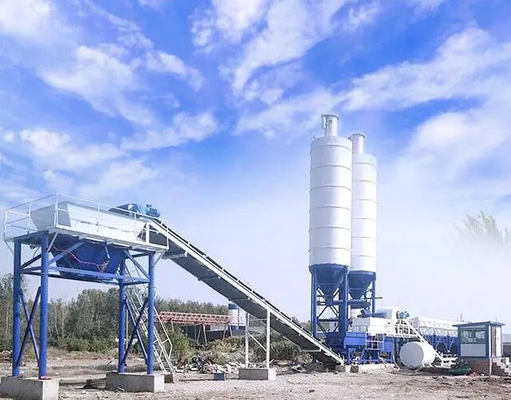

4.Product physical picture (picture for reference)
