| Name: | Overflow Ball Mill | Application: | Ore Grinding Mill |
|---|---|---|---|
| Feeding Capacity: | 625t/h | Main Motor Power: | 5700kw |
| Materials: | Wet And Dry | Place Of Origin: | Henan, China |
| Type: | Φ 6.2× 9.5m (F/F) | Warranty: | 12 Month |
| High Light: | 625t/h Overflow Ball Mill,Material Crushing Ball Mill,6.2m×9.5m Overflow Type Ball Mill |
||

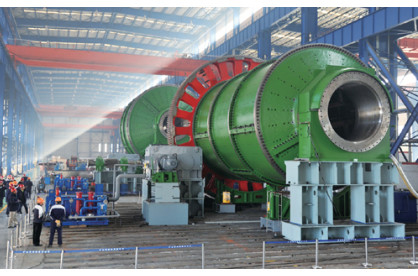

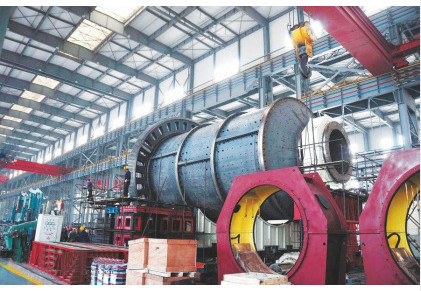

Φ 6.2m× 9.5m (F/F) Overflow Ball Mill And Supporting System With Fully Functional
1. Overview, basic conditions
(1) Overview
Ball mill is the key equipment for material crushing after being crushed. This type of mill is in its cylinder body into a certain number of steel balls as grinding medium.
It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal dressing and glass ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials. Ball mill is suitable for grinding all kinds of ore and other materials, is widely used in mineral processing, building materials and chemical industries, can be divided into dry and wet grinding two ways. According to the different way of ore discharge, it can be divided into two types: lattice type and overflow type.
(2) Geographical and meteorological conditions
For indoor installation, the altitude is less than 1000m.
(3) Rotation of the mill
Right-hand rotation
Rotation interpretation: from the feeding end to the discharging end, the main motor is on the right.The main motor is at the discharging end.
(4) Work System
Continuous work 330d/a, 24h/d, 3 shift /d, 8h/ shift.
(5) Power Supply Conditions
Power supply: high-voltage three-phase four-wire 10kV, output voltage range 10kV±10%, low-voltage three-phase four-wire 380V, frequency 50Hz.
(6) Water Supply Conditions
Water quality: neutral and clean circulating water;Water temperature: ≤30℃;Water pressure: 0.3 ~ 0.4mpa.
2. List of supplied equipment
| No. | Name | Specifications | Quantity |
| 1 | Overflow ball mill | φ 6.2× 9.5m (F/F) | 1 |
3. Scope of Supply (Supply details of a single device)
| No. | Name | Quantity | Main structure | Note |
| Ⅰ | Equipment ontology | 1 |
φ 6.2m×9.5m overflow ball mill |
Made in China |
| 1 | Feeding system | 1 | Box tube bending electric trolley feeding. | Made in China |
| 2 | Main bearings system | 2 | Full hydrostatic lubrication, three tongue seal, copper tile, double arc surface aligning structure. | Made in China |
| 3 | Rotary parts | 1 | Includes: inlet and outlet hollow shaft, inlet and outlet bushing, barrel, end cover liner, barrel liner and other necessary accessories. | Made in China |
| 4 | Driving parts | 1 | Includes: big gear, pinion gear, gear housing and other necessary accessories. | Made in China |
| 5 | Discharge sieve | 1 | Including cylinder screen and screen cover. | Made in China |
| 6 | Base unit | 1 | Includes: device base plate and anchor bolts. | Made in China |
| 7 | Lubricating oil tube | 1 | Stainless steel tubing. | Made in China |
| 8 | Shield | 1 set | Rotating parts. | Made in China |
Technical parameters of overflow ball mill
| No. | Name | The numerical |
| 1 | Mill specifications (mm) | Φ6200 x9500 |
| 2 | Inner diameter of cylinder (mm) | 6200 |
| 3 | Cylinder flange to flange length (mm) | 9500 |
| 4 | Effective volume of cylinder (m³) | 259 |
| 5 | Effective volume of end cover (m³) | 21 |
| 6 | Maximum medium fill rate (%) | 28 |
| 7 | Maximum ball loading (T) | 365 |
| 8 | Cylinder speed (r/min) | 13 |
| 9 | Main motor power | 5700kW |
