Product Details:
Payment & Shipping Terms:
|
| Model: | Metallurgical Chemical Kiln | Type: | Rotary Kiln |
|---|---|---|---|
| Condition: | New | Kiln Body: | High Quality Carbon Steel Or Alloy Steel Plate |
| Application: | Metallurgical Chemical Industry | Thrust Roller Form: | Hydraulic Pressure |
| Keyword: | China Rotary Kiln | Warranty: | 12 Month |
| High Light: | 2.4×38 Titanium Dioxide Rotary Kiln,CE Approved Metallurgical chemical kiln,2.5×60 Refractory rotary kiln |
||
Titanium Dioxide Rotary Kiln Zinc Oxide Rotary Kiln Refractory Rotary Kiln Alumina Rotary Kiln

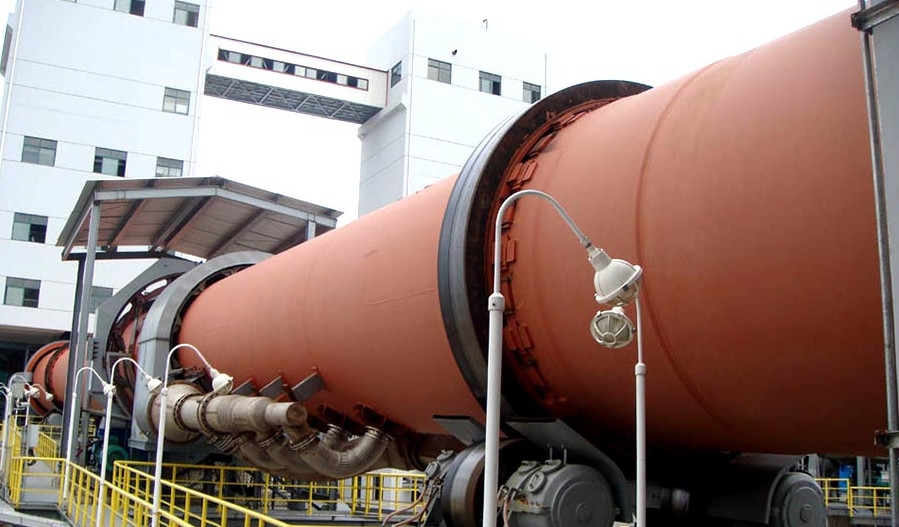

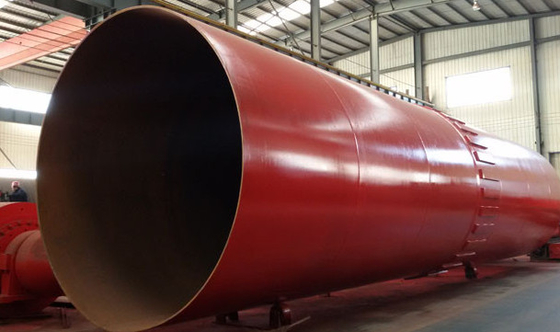

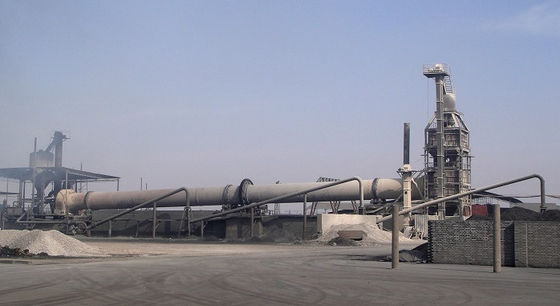

1. Metallurgical chemical kiln introduction
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Titanium dioxide rotary kiln Product parameters
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | iVelocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ2.4×38 | (T929) | 0.2 ～0.6 | 2.2 | 30 | Velocity ratio | 30 | Machine | roll | 150 | ||||
| 2 | Φ2.8×53 | J920 | 0.1 ～0.3 | 4 | 50 | 22 | hydraulic pressure | roll | 271 | |||||
| 3 | Φ3.2×55 | J931A | 0.1 ～0.3 | 4 | 67 | 55 | hydraulic pressure | roll | 275.4 | |||||
3. Zinc oxide rotary kiln product parameters
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| *1 | Φ3.45×52 | J968 | 0.35 ～0.8 | 5 | 350 |
Worm gear drive reducer A=450,i=12 |
75 | hydraulic pressure | roll | 412.5 |
A=3150,m=28,i=10.84 |
|||
| 2 | Φ4×58 | J978 | 0.35 ～3.5 | 5 | 400 | 250 | hydraulic pressure | slide | 341 | |||||
| 3 | Φ4.15×58.2 | J975 | 0.35 ～0.7 | 5 | 756 | 55 ×2 | hydraulic pressure | roll | 637 | fexible drive | ||||
4. Refractory rotary kiln product parameters
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ2.5×60 | (912) | 0.3～1.0 | 4 | 240 | 55 | Machine | roll | 217 | |||||
| 2 | Φ3/3.6×60 | (4 929-2) | 0.7～1.35 | 3.5 | 360 | 80 | Machine | slide | 310 | |||||
5. Alumina rotary kiln product parameters
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×90 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
