Name: | Ore Grinding Mill | Feature: | Efficient Low Consumption |
---|---|---|---|
Feed Size: | 6mm | Discharge Size: | 2mm |
Materials: | Ore Charge | Place Of Origin: | Henan, China |
Application: | Powder Metallurgy, Mechanical Alloying, Metallurgical Raw Material Processing | Warranty: | 12 Month |
High Light: | Metal Ore Vertical Screw Mill,PLC control Vertical Screw Mill,1600KW Vertical Screw Mill |

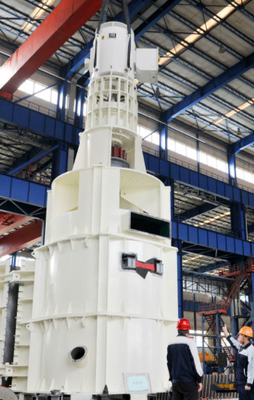

MLL Series Vertical Spiral / Screw Mill Superfine Grinding Equipment Ore Grinding Mill
1. Product usage and characteristics
Vertical screw mill is mainly used in the grinding of metal ore, grinding and deep processing of non-metallic ore, comprehensive utilization of low grade minerals, extraction of useful elements in tailings and other mining industry, Powder metallurgy, mechanical alloying, metallurgical raw material processing, metallurgical waste residue utilization, cemented carbide production and other metallurgical industry and other industrial industries. It is a certain size of ore or other materials grinding into more fine-grained equipment, is a kind of ultra-fine grinding equipment.
Vertical spiral mill is to achieve the purpose of grinding and refining particles by means of agitation. Under the agitation of mixer, mixing multidimensional groove ball medium and ore material do circular motion and rotation motion, the integrated use of medium ball and mineral aggregate, gravity and produced by the rotation of the centrifugal force between medium ball, ore material and medium between the ball and the ore materials, impact, friction and shear action between mine materials in the deformation and fracture under the action of momentum and impulse finally shattered, achieve ideal size. Compared with the traditional ball mill at the same power, the energy saving is 30% ~ 50%. The smaller the product size is, the more obvious the energy saving effect is. The maximum particle size of the feed can be 6mm, the minimum particle size of the discharge can be 0.02mm.
2. Technical features
A. Vertical spiral mill is mainly composed of transmission part, frame part, screw part, overhaul door, coarse grading equipment, screw installation tools and motor, reducer, etc., with simple structure and convenient maintenance.
B. The frame part is lined with wear-resistant and corrosion-resistant rubber, and installed with grid lining board or magnetic lining board to protect the frame and extend the service life.
C. The installation cycle is short, usually 2~4 weeks to complete the installation of the body.
D. The overall force of the mill is balanced, the foundation has no additional load, and the foundation design is simple.
E. When working, there is no impact inside, small loss of grinding medium.
F. Vertical spiral mill is divided into upper feeding and lower feeding two ways, according to the process of free choice.
G. PLC control, with sound and light alarm, fault diagnosis and other functions, realize the integration of electromechanical and hydraulic control.
3.Model specifications
Model |
(kW) |
maximum charge of balls(t) |
Mill about net weight (t) |
Installation dimensions of mill mm×mm |
Mill height mm |
MLL1600 | 1600 | 182 | 200 | 4840×5493 | 15988 |
MLL1250 | 1250 | 156 | 160 | 3870×3663 | 14635 |
MLL1120 | 1120 | 127 | 140 | 4570×4363 | 14347 |
MLL950 | 950 | 91 | 105 | 3870×3663 | 13604 |
MLL750 | 750 | 87 | 95 | 3520×3473 | 13129 |
MLL355 | 355 | 50 | 40 | 2628×2640 | 10038 |
