Model: | Cement Ball Mill | Drive Mode: | Edge,center |
---|---|---|---|
Production: | 14-60 T/H | Material: | Dry |
Motor Power: | 380-3150 KW | Condition: | New |
Voltage: | 6000V | Type: | Ore Grinding Mill |
Place Of Origin: | Henan, China | Warranty: | 12 Month |
High Light: | Cylindrical Rotary Cement Ball Mill,PLC control Ball Mill For Cement Grinding,6000V Ball Mill In Cement Industry |

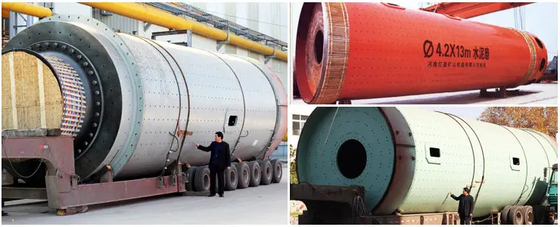

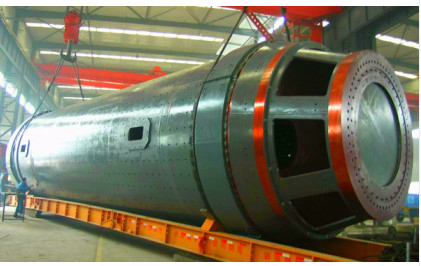

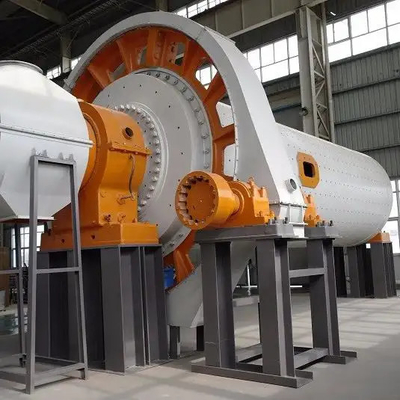

14-60 T/H Dry Cement Ball Mill For Mining Industry Ore Grinding Mill
1. Product introduction of Cement Mill Cement Ball Mill Ore Grinding Mill
Cement mill - cement ball mill is completed in 2003 domestic ten thousand tons of cement production line host equipment, is the material is broken, and then the key equipment for crushing. Ball mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metal dressing and glass ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials.
2. Product parameters Cement Ball Mill Ore Grinding Mill
Luo mine cement mill | cement ball mill get technical indicator:
No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note | |||
Power (kw) | Voltage (V) | L | W | H | ||||||||||
1 | Φ2.2×6.5 | 13-14 | 22 | <25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
2 | Φ2.2×11 | 15-16 | 21 | <25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
3 | Φ2.2×13 | 16-18 | 21.5 | <25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | ||
4 | Φ2.4×8 | 15 | 20.8 | <25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
5 | Φ2.4×13 | 20-23 | 19 | <25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
6 | Φ2.6×13 | 30-32 | 19.6 | <25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
7 | Φ3×9 | 28-32 | 17.8 | <25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
8 | Φ3×11 | 36-40 | 18.9 | <25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | ||
9 | Φ3×11 | 36 | 17.69 | <25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
10 | Φ3.2×11 | 40-45 | 17.4 | <15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
11 | Φ3.5×9.5 | 40 | 18 | <20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | ||
12 | Φ3.5×11 | 45 | 17.2 | <15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | ||
13 | Φ3.6×8.5 | 60 | 16.5 | <20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output | |
14 | Φ3.8×9 | 70-80 | 16.5 | <20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | ||
15 | Φ3.8×12.5 | 55 | 16.4 | <25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
16 | Φ3.8×13 | 60 | 16.3 | <25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
17 | Φ4.2×11 | 120 | 15.75 | ≤3 80% pass | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | With roller press and O-Sepa | ||
18 | Φ4.2×11.5 | 130 | 15.99 | ≤3 80% pass | 199 | 138 | Single side double drive | 2800 | 10000 | 18002 | 8962 | 7520 | 219** | With roller press |
19 | Φ4.2×11.5 | 130 | 16 | ≤3 80% pass | 199 | 138 | Center | 2800 | 17259 | 4960 | 5600 | 220** | With roller press | |
20 | Φ4.2×12.5 | 85 | 16 | ≤25 90% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | with efficient powder separator | ||
21 | Φ4.2×12.5 | 145 | 16 | ≤3 80% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | With roller press | ||
22 | Φ4.2×13 | 75 | 15.6 | ≤25 90% | 209 | 157 | Edge | 3150 | 174450 | 4880 | 8000 | 255** | with efficient powder separator | |
23 | Φ4.2×13 | 150 | 15.6 | ≤3 80% | 209 | 157 | Center | 3150 | 17445 | 4880 | 8000 | 256** | With roller press and O-Sepa | |
24 | Φ4.2×13.5 | 80-85 | 15.8 | ≤25 90% | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |||
25 | Φ4.2×14 | 95 | 15.6 | ≤25 90% | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |||
26 | Φ4.2×14.5 | 95 | 15.8 | ≤25 80% | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |||
27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | Edge | 4200 | 6000 | 23200 | 11054 | 6370 | 310** |
