Product Details:
Payment & Shipping Terms:
|
| Name: | Blast Furnace Hoist | Keywords: | Hoisting Machine |
|---|---|---|---|
| Application: | Steel Transport | Hoisting Machine: | Sinking Hoist |
| Type: | Conveying Hoisting Machine | Certification: | ISO/CE |
| Hydraulic Proof Explosive Winch: | Transport Personnel And Material Under Hazardous Situations | Blast Furnace Hoist: | Main Equipments In Feeding Materials System |
| Place Of Origin: | Henan,China | Warranty: | 12 Months |
| High Light: | ISO Certification Blast Furnace Hoist,Steel transport Conveying Hoisting Machine |
||

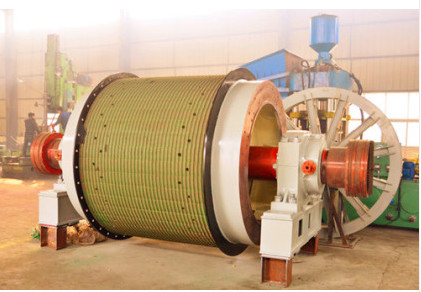

Blast Furnace Feeding Winch Mine Hoist of Conveying Hoisting Machine
1. Product description
Blast furnace transport winch used for steel transport, steel transport is the key equipment. The material transport winch is the winding equipment which pulls the skip car back and forth between the top and the pit along the inclined bridge track. It is the main equipment in the material feeding system of the skip car.
2. Product parameters
| Model | Drum diameter | Drum Width | Steel wire rope | Maximum lifting height | Maximum lifting speed | Electromotor | dimensions(L×W×H) | machine weight | |||||
| Maximum static tension | Maximum static tension difference | Maximum diameter | One-layer | Two-layer | Three-layer |
Power calculated value MAX
|
REV | ||||||
| m | m | KN | KN | mm | m | m/s | KW | r/min | m | t | |||
| JTP-1.2×1 | 1.2 | 1 | 30 | / | 20 | 158 | 353 | 553 | 1.84 |
55 |
725 | 4.75×4.3×1.45 | 8.2 |
| 2.5 | 75 | 975 | |||||||||||
| 1.53 | 55 | 730 | |||||||||||
| JTP-1.2×1.2 | 1.2 | 1.2 | 30 | 30 | 20 | 189 | 423 | 663 | 1.84 | 55 | 725 | 4.8×4.3×1.45 | 9.8 |
| 2.5 | 75 | 975 | |||||||||||
| 1.53 | 55 | 730 | |||||||||||
| 2JTP-1.2×0.8 | 1.2 | 0.8 | 30 | 20 | 20 | 126 | 282 | 442 | 1.84 | 55 | 737 | 5.8×4.3×1.45 | 8.95 |
| 2.5 | 75 | 985 | |||||||||||
| JTP-1.6×1.2 | 1.6 | 1.2 | 45 | / | 24.5 | 216 | 469 | 730 | 2.45 | 110 | 591 | 6×3.1×2.65 | 10.9 |
| 3.06 | 132 | 742 | |||||||||||
| 4 | 185 | 992 | |||||||||||
| JTP-1.6×1.5 | 1.6 | 1.5 | 45 | / | 24.5 | 270 | 586 | 912 | 2.45 | 110 | 591 | 6.3×3.1×2.65 | 13.7 |
| 3.06 | 132 | 742 | |||||||||||
| 4 | 185 | 992 | |||||||||||
| 2JTP-1.6×0.9 | 1.6 | 0.9 | 45 | 30 | 24.5 | 162 | 351 | 550 | 2.45 | 80 | 585 | 6.7×3.1×2.65 | 13.9 |
| 3.06 | 95 | 730 | |||||||||||
| 4 | 130 | 980 | |||||||||||
| 2JTP-1.6×1 | 1.6 | 1 | 45 | 30 | 24.5 | 180 | 390 | 608 | 2.45 | 75 | 585 | 6.8×3.1×2.65 | 15 |
| 3.06 | 90 | 730 | |||||||||||
| 4 | 132 | 980 | |||||||||||
| 2JTP-1.6×1.2 | 1.6 | 1.2 | 45 | 30 | 24.5 | 216 | 469 | 730 | 2.45 | 75 | 585 | 7×3.1×2.65 | 18 |
| 3.06 | 90 | 730 | |||||||||||
| 4 | 132 | 980 | |||||||||||
