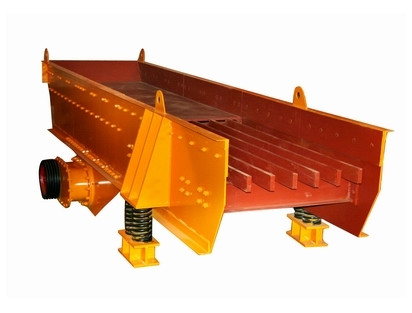

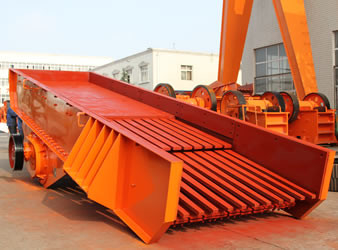

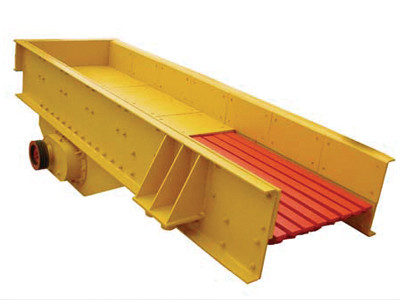

GZT GZG Series Vibrating Feeder Conveying Hoisting For Minning

GZT GZG Series Vibrating Feeder Of Conveying Hoisting Machine For Minning

1. Vibration feeder Of Conveying Hoisting Machineworking principle:
Motor vibration feeder adopts two vibration motors of the same specification as the excitation source, and uses the eccentric block at both ends of the vibration motor to generate excitation force, which is an ideal vibration driving device. The feeding process of motor vibration feeder is achieved by reciprocating linear vibration in the inclined direction of the feeding trough. When the component of the vibration acceleration of the tank is greater than the component of the gravity acceleration in the vertical direction of the tank, the material in the tank is thrown up, and according to the parabolic wheel trace forward jumping movement, each vibration of the tank once, the material will be thrown up once, so, the material continuously to the tank vibration frequency jump forward, to achieve the purpose of feeding.

2. Structural characteristics of vibration feeder:
(1) Steady vibration;
(2) Special grid equipment can prevent material clogging;
(3) The gap of the grid is adjustable;
(4) Optional stepless speed regulating motor, easy to control the feed, no need to start the motor frequently.

3. Characteristics and advantages of vibration feeder:
(1) Small size, light weight, simple and compact structure;
(2) Easy installation and maintenance, low operation cost;
(3) High efficiency, large feeding capacity;
(4) Low noise, conducive to improving the working environment;
(5) Small power consumption, high power factor;
(6) The equipment works in the state of far beyond resonance, so the amplitude is stable, the operation is reliable, and the adaptability to various materials is strong;
(7) With the motor governor without adjusting the eccentric block can easily stepless adjustment of the feed.

4.Vibration feeder product parameters
