Product Details:
Payment & Shipping Terms:
|
| Name: | Bucket Elevator | Application: | Metallurgy, Chemical Industry |
|---|---|---|---|
| Advantages: | Efficient Stable | Usage: | Conveye Materials In Vertical State |
| Keyword: | Belt Bucket Elevator | Condition: | New |
| Brand: | ZTIC | Warranty: | 12 Months |
| Color: | Custom | Type: | Conveying Hoisting Machine |
| High Light: | Bucket Elevator Conveying Hoisting Machine,Mining Industry Bucket Elevator,Conveying Hoisting Bucket Elevator |
||

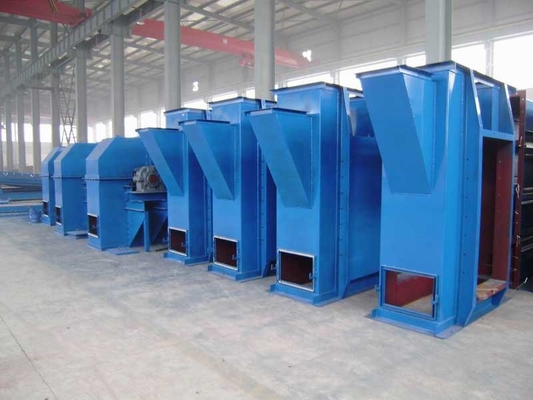

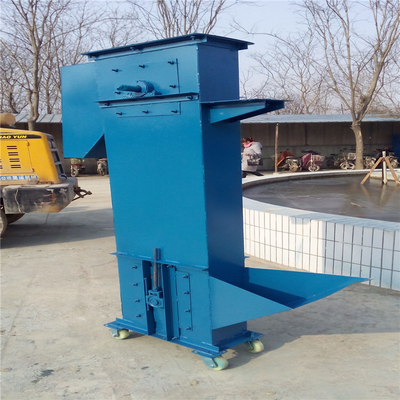

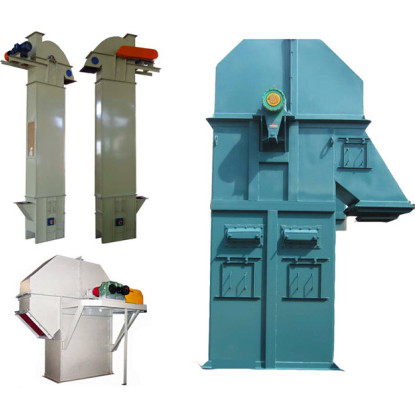

Conveying Hoisting Machine Bucket Elevator Suitable Mining Industry
1. Conveying hoisting machine bucket elevator main components:
Bucket elevator by hopper, driving device, top and bottom roller (or sprocket), tape (or traction chain), tensioning device and housing.
2. Conveying hoisting machine bucket elevator product description:
Bucket elevator is suitable for low to high lifting, the supply of materials through the shaking table into the hopper after the machine automatically continuous operation upward transport.
3. Conveying hoisting machine bucket elevator working principle:
The hopper scoops up the material from the storage below, and as the conveyor belt or chain is lifted to the top, bypits the jacking wheel and flipped down, the bucket elevator pours the material into the receiving tank. Belt drive bucket elevator transmission belt generally adopts rubber belt, mounted on or above the transmission drum and the upper and lower to the drum. Chain drive bucket elevator is generally equipped with two parallel transmission chains, on or below a pair of transmission sprockets, under or above a pair of sprockets. The bucket elevator is generally equipped with a casing to prevent dust from flying in the bucket elevator.
4. Bucket elevator product parameters:
| Model | Production capacity (t/h) |
Feeding size Max(mm) |
Bucket speed(m/s) | Pitch of buckets (mm) | Device weight(kg) | |
| 10m | ±1m | |||||
| D160S/Q | 8/3.1 | 25 | 1.0 | 300 | 1580 | 100 |
| D250S/Q | 21.6/11.8 | 35 | 1.25 | 400 | 2930 | 130 |
| D350S/Q | 42/25 | 45 | 1.25 | 500 | 3315 | 190 |
| D450S/Q | 69.5/48 | 55 | 1.25 | 640 | 4664 | 250 |
| TD160S/Q | 27/9 | 25 | 1.4 | 350/280 | 1640 | 120 |
| TD250S/Q | 59/20 | 35 | 1.6 | 450/360 | 3060 | 150 |
| TD315S/Q | 67/28 | 40 | 1.6 | 500/400 | 3310 | 180 |
| TD400S/Q | 110/40 | 45 | 1.8 | 560480 | 4016 | 210 |
| TD500S/Q | 154/63 | 50 | 1.8 | 625/500 | 5110 | 280 |
| TD630S/Q | 238/142 | 60 | 2.0 | 710 | 8160 | 430 |
| HL300S/Q | 28/16 | 40 | 1.25 | 500 | 3930 | 200 |
| HL400S/Q | 47/30 | 50 | 1.25 | 600 | 4990 | 260 |
| TH315Sh/Zh | 59/35 | 35 | 1.4 | 512 | 3860 | 160 |
| TH400Sh/Zh | 94/58 | 40 | 1.4 | 512 | 4780 | 180 |
| TH500Sh/Zh | 118/73 | 50 | 1.5 | 688 | 5620 | 235 |
| TH630Sh/Zh | 185/114 | 55 | 1.5 | 688 | 8670 | 453 |
| PL250 | 22.3/30 | 35 | 0.5 | 200 | 3012 | 136 |
| PL350 | 50/59 | 45 | 0.4 | 250 | 4180 | 214 |
| PL450 | 85/100 | 50 | 0.4 | 320 | 5660 | 293 |
| ZL250 | 55 | 35 | 0.58 | 250 | 3217 | 148 |
| ZL350 | 80 | 45 | 0.58 | 250 | 4210 | 175 |
| ZL450 | 120 | 50 | 0.58 | 300 | 5692 | 250 |
| ZL600 | 160 | 55 | 0.58 | 300 | 9374 | 480 |
