Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Chain Conveyor |
|---|---|---|---|
| Advantages: | Large Conveying Capacity，Efficient Stable | Belt Width: | 400-1200MM |
| Application: | Mining, Metallurgy, Chemical, Casting, Building Materials | Conveying Speed: | 1.25--2 M/s |
| Feature: | Less Energy Consumption | Keyword: | Mining Machine |
| Brand: | ZTIC | Warranty: | 12 Months |
| Color: | Custom | Type: | Conveying Hoisting Machine |
| High Light: | Chain Conveyor System In Mining,Chain Conveyor System In Metallurgy,chain feeder conveyor In Metallurgy |
||

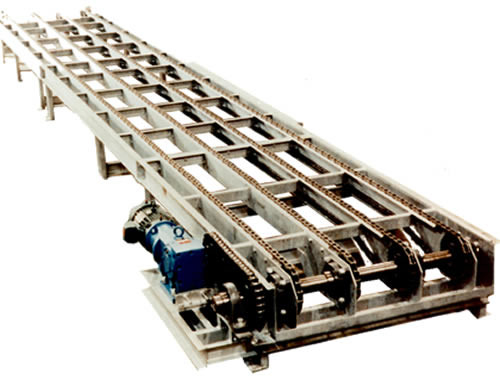

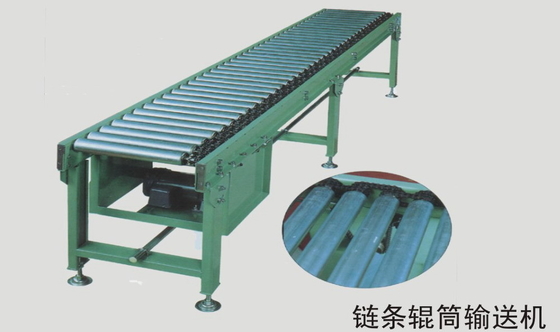

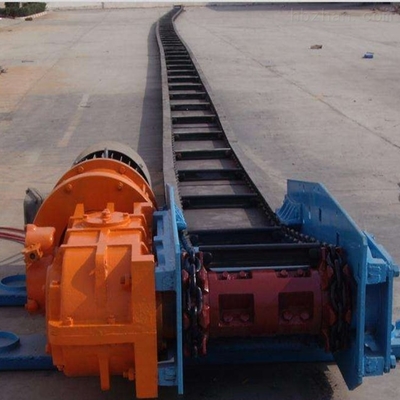

Chain Conveyor Used In Mining Metallurgy Of Conveying Hoisting Machine
1. Chain conveyor Of Conveying Hoisting Machine product description
Widely used in mining, metallurgy, chemical, casting, building materials and other industries of transportation and production lines, hydropower station construction sites and ports and other production departments.
Synchronous chain conveyor two chains synchronous movement, suitable for all kinds of assembly conveyor line belt conveyor because of its large volume, long distance, small energy consumption, welcomed by users, but because of its plane can not bend, so that the scope of adaptation is limited. Coal mine due to the change of geological conditions, transport roadway must be bent in case of faults, forcing the long distance transport system into broken lines, had to use a number of belt conveyor (or scraper), the composition of multi-section broken line transport, complete the transport task. For open-pit mining of coal mines, iron ore and other transport systems, because with the stope changes, the belt can not be a straight line, so we have to use expensive car transport. The latest generation of lateral mobile bendable belt conveyor has a minimum bend radius of 4.5 m. A bendable belt conveyor can replace several belt conveyor and scraper conveyor to realize the total transport of a belt conveyor in underground mining and open-pit stope. Bending Angle and radius of curvature of bendable belt conveyor.
2. Advantages of chain conveyor Of Conveying Hoisting Machine
The conveyor belt moves according to the friction transmission principle, which has the advantages of large conveying capacity, long conveying distance, smooth conveying, no relative movement between materials and the conveyor belt, small noise, simple structure, convenient maintenance, less energy consumption, standardized components and so on.
3. Product parameters of chain conveyor Of Conveying Hoisting Machine
| Belt width(mm) | Conveying length(m) Power (Kw) | Conveying speed(m/S) | Conveying capacity (t/h) | ||
| 400 | ≤12/2.2 | 12∽20/2.2∽4 | 20∽25/3.5∽7.5 | 1.25∽2.0 | 30∽60 |
| 500 | ≤12/3 | 12∽20/3∽5.5 | 30∽30/5.5∽7.5 | 1.25∽2.0 | 40∽80 |
| 650 | ≤12/4 | 12∽20/4∽5.5 | 20∽30/5.5∽11 | 1.25∽2.0 | 80∽120 |
| 800 | ≤6/4 | 10∽15/4∽5.5 | 15∽30/5.5∽15 | 1.25∽2.0 | 120∽200 |
| 1000 | ≤10/5.5 | 10∽20/5.5∽11 | 20∽40/11∽22 | 1.25∽2.0 | 200∽320 |
| 1200 | ≤10/7.5 | 10∽20/7.5∽15 | 20∽40/15∽30 | 1.25∽2.0 | 320∽480 |
