Product Details:
Payment & Shipping Terms:
|
| Model: | Ball Press Machine | Mainly Used: | In Coal, Mining, Metallurgy, Refractory, Chemical, |
|---|---|---|---|
| Condition: | New | Type: | Metallurgy Machine |
| Production Capacity: | 2-100 T/h | Linear Pressure: | 110 KN/cm |
| Total Pressure: | 100-1000 T | Roller Diameter: | 520-2400mm |
| Weight: | Max 156 T | Dimension(L*W*H): | 6523 X 4480 X 4209mm |
| Roller Width: | 196-1200 Mm | Warranty: | 12 Months |
| Main Motor Power: | 55-1000 Kw | Port: | QingDao,ShangHai,TianJin |
| High Light: | High Pressure Metallurgy Machine,High Pressure Ball Press Machine,Strong Ball Press Machine |
||

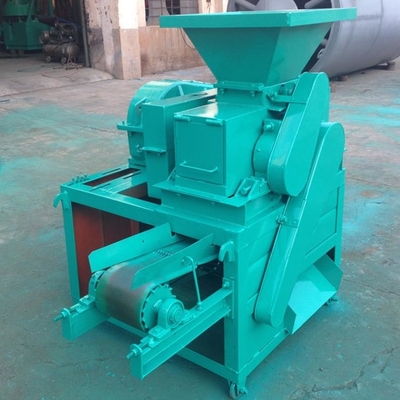

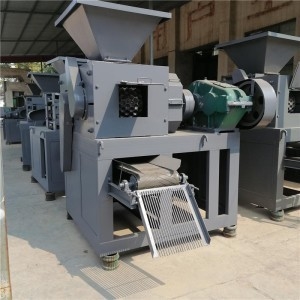

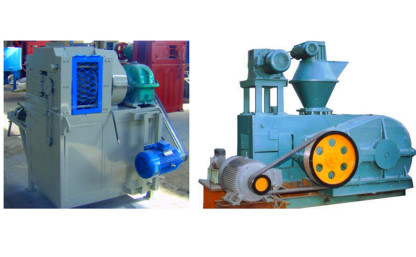

Metallurgy Machine Strong Ball Press Machine High Pressure Ball Press Machine
1. Luo Mine Ball press machine product series includes:
(1) High pressure ball press machine
(2) Medium pressure ball press machine
(3) Strong ball press machine
(4) Ore powder ball press machine
(5) Briquette ball press machine
(6) Lignite pelletizing machine machine
(7) Desulfurization gypsum ball press machine
(8) Laterite nickel ore ball press machine
2. Metallurgy machine Scope of application:
Ball press machine can to pressure or pressure ball, a variety of materials such as laterite nickel ore, lime powder, dolomite powder, magnesium powder, copper powder, chromium ore, manganese ore powder, lead and zinc scrap, aluminium vanadium and soil, non-ferrous metal powder, refractory materials, ceramic materials, steel mills, iron powder, converter sludge, ferric oxide powder, iron, etc., its aim is to reduce dust, control unit weight, return to use, Improve transport characteristics, etc. Mainly used in coal, mining, metallurgy, refractory, chemical, building materials and other industries.
3. Metallurgy machine ball press machine principle structure:

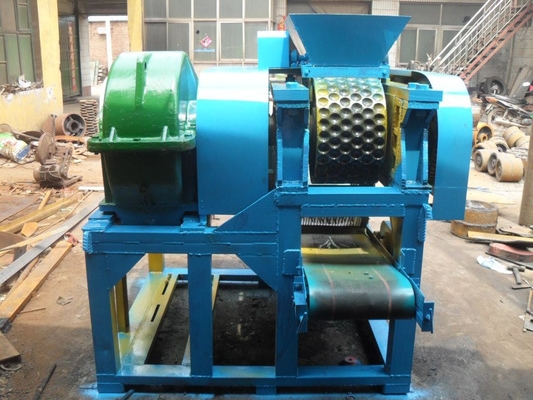

The main structure of the ball press machine is composed of transmission system, main frame, reducer, belt conveyor, prepressure device, roller sleeve ball groove contraption device, hydraulic system and electric control. Work material quantitative, preloading device evenly add pressure ball machine, keep the preloading device within a stable level, and then by preloading device of preloading spiral press material forced into the middle of the roll material for pre compression and delivery to the two arc wall of roller, two evenly distributed on the surface of a roller shape with the roller, through the meshing transmission, Make two pairs of rollers equal speed, reverse rotation, will be conveyed to the groove of the material bite into the groove and forced compression, as the roll continues to rotate, under the action of its elasticity and gravity off the ball, as the motor continued to rotate the pressure roller for periodic rotary pressing molding movement, to achieve mass production.
4. Product parameters of ball press machine metallurgy machine:
(1) Strong ball press machine specifications
| Model | Roll diameter(mm) | Roll width(mm) | Total press(t) |
Maximum linear specific pressure (t) |
Main motor power(kw) | Capacity(t) | Weight(t) | Dimensions(mm) | ||
| L | W | H | ||||||||
| GY520-150 | 520 | 196 | 150 | 8 | 55 | 2.2-3.5 | 13 | 4087 | 2882 | 2709 |
| GY650-180 | 650 | 220 | 180 | 8 | 90 | 4-6.5 | 19.1 | 4576 | 3365 | 3003 |
| GY650-220 | 650 | 200 | 220 | 11 | 110 | 4-6.5 | 19.2 | 4576 | 3365 | 3003 |
| GY750-230 | 750 | 280 | 230 | 8 | 160 | 6-8.5 | 30.2 | 5792 | 2963 | 3174 |
| GY750-270 | 750 | 328 | 270 | 8 | 185 | 7-10 | 35.2 | 5792 | 2963 | 3174 |
| GY750-300 | 750 | 280 | 300 | 11 | 185 | 6-8.5 | 34 | 5792 | 2963 | 3174 |
| GY750-350 | 750 | 328 | 350 | 11 | 220 | 7-10 | 38.5 | 5792 | 2963 | 3174 |
| GY1000-350 | 1000 | 440 | 350 | 8 | 250 | 10-15 | 50.8 | 6123 | 4280 | 3603 |
| GY1000-500 | 1000 | 440 | 500 | 11 | 350 | 10-15 | 65 | 6523 | 4480 | 4209 |
| GY1200-800 | 1200 | 900 | 720 | 8 | 280Kw×2 | 40 | 110 | 8830 | 5111 | 4200 |
(2)High pressure ball press machine specifications
| Model | Roll diameter(mm) | Roll width(mm) | Total press(t) |
Maximum linear specific pressure (t) |
Main motor power(kw) | Capacity(t) | Weight(t) |
| GY520-150 | 520 | 196 | 150 | 8 | 55 | 2.2-3.5 | 13 |
| GY650-220 | 650 | 200 | 220 | 11 | 110 | 4-6.5 | 19.2 |
| GY750-300 | 750 | 280 | 300 | 11 | 185 | 6-8.5 | 34 |
| GY1000-350 | 1000 | 440 | 350 | 8 | 250 | 10-15 | 50.8 |
| GY1000-450 | 1000 | 504 | 450 | 9 | 280 | 14-17 | 58.5 |
| GY1000-500 | 1000 | 504 | 500 | 10 | 315 | 15-20 | 58.5 |
| GYS1000-500 | 1000 | 600 | 500 | 8 | 280 | 17-21 | 56.5 |
| GY1000-540 | 1000 | 900 | 540 | 6 | 185Kw×2 | 30-35 | 60 |
| GY1200-800 | 1200 | 900 | 800 | 8 | 280Kw×2 | 40 | 110 |
| GY1400-1000 | 1400 | 1000 | 1000 | 10 | 400Kw×2 | 50 | 156 |
(3)Large ball press machine specifications:
| Model | Roller size(mm) |
(KN/cm) |
Production capacity(t/h) | |
| diameter | width | |||
| GY1030 | 1000 | 300 | 110 | 10 |
| GY1240 | 1200 | 400 | 110 | 15 |
| GY1460 | 1400 | 600 | 110 | 20 |
| GY1680 | 1600 | 800 | 110 | 30 |
| GY1890 | 1800 | 900 | 110 | 50 |
| GY2011 | 2000 | 1000 | 110 | 80 |
| GY2412 | 2400 | 1200 | 110 | 100 |
