Product Details:
Payment & Shipping Terms:
|
| Model: | Hydraulic Station | Name: | Secondary Brake Hydraulic Station |
|---|---|---|---|
| Type: | TE160/TE161/TE162/TE163 | Tank Storage Capacity: | 500-700 L |
| Oil Pressure: | 6.3 MPa | Second Stage Brake Delay Time: | 0-10s |
| Usage: | Single Machine And Double Station For Single Cylinder | Weight: | 540-800KG |
| Hydraulic Medium: | YB-N46 ANTI-WEAR HYDRAULIC OIL | Classification: | Conveying Hoisting Machine |
| High Light: | Plug Control Conveying Hoisting Machine,Conveying Hoisting Machine Secondary Brake,Hydraulic Station Conveying Hoisting Machine |
||

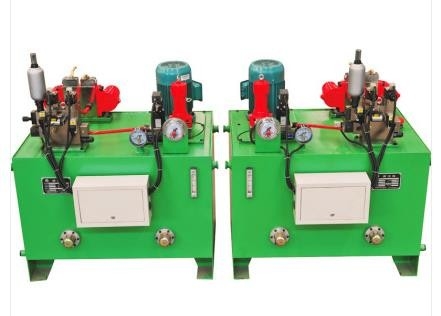

Conveying Hoisting Machine TE Series Plug Control Secondary Brake Hydraulic Station
1. Conveying hoisting machine TE series hydraulic station product description
TE160/TE161/TE162/TE163 plug control secondary brake hydraulic station. This series hydraulic station is a new hydraulic control system developed by our company for the mining industry. With its optimized structure, accurate control and excellent anti-pollution, it makes the work of the hydraulic system of the hoist more reliable. It has been widely recognized by experts at home and abroad and received unanimous praise in the majority of users.
Hydraulic station is an important safety and control component of mine hoist. It combines with disc brake to form a complete brake system, which provides adjustable pressure oil for disc brake and enables the hoist to obtain different braking torque. Make mine hoist run, speed regulation and stop normally. In the case of an accident in the well, the oil pressure of the disc brake can be rapidly reduced to a predetermined value. After a delay, all the oil pressure of the disc brake can be rapidly returned to zero, so that the lifting system is in a full braking state - that is, a two-stage braking process.
Based on our traditional products, the new hydraulic station optimizes the hydraulic circuit, reducing the components and equipment failures they may bring. At the same time the use of advanced domestic and foreign high-quality components, can reliably achieve the established work requirements. The new hydraulic station applies to a wider area, and the anti-pollution ability of components is greatly improved.
2. Product parameters of TE series hydraulic station conveying hoisting machine
| Drawing no. | TE160 hydraulic station | TE161 hydraulic station | TE163 hydraulic station |
| Usage | Single machine single station for single cylinder | Double cylinder single machine single station | Single machine and double station for single cylinder |
| Maximum working oil pressure ( MPa) | 6.3 | ||
| Working oil temperature (℃) | 15～65 | ||
| Tank storage volume (L) | 700 | 500 | |
| Second stage brake delay time (s) | 0～10 | ||
| Working brake control voltage (V) | 0～10 | ||
| Motor power (Kw) | 2.2×2 | 2.2 | |
| Electric heater power (Kw) | 2×2 | ||
|
Installation dimensions Length x Width x Height (mm) |
1400×1200×1450 | 1200×950×1350 | |
| Weight (excluding oil) (kg) | 800 | 550 | |
|
Hydraulic medium |
YB-N46 ANTI-WEAR HYDRAULIC OIL | ||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
