| Type: | ZJA Series Planetary Gear Reducer | Power: | 630-1600 KW |
|---|---|---|---|
| Model: | Nickel-Chromium Steel Planetary Reducer | Rotational Speed: | 650/700 R/min |
| Reducer Type: | ZJA Type 1250, ZJA Type 1450 | Rotation Rate: | 34-44 |
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Port: | QingDao,ShangHai,TianJin |
| Warranty: | 12 Months | Classification: | Gear Reducer Gearbox |
| High Light: | Nickel Chromium Steel Planetary Reducer,Nickel Chromium Steel Gear Reducer Gearbox,Planetary Gear Reducer Gearbox |
||

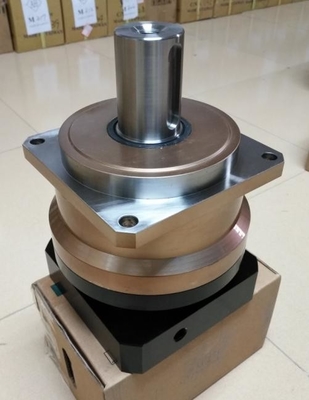

Nickel-Chromium Steel ZJA Series Planetary Reducer And Gear Reducer Gearbox
1. Case introduction of characteristic reducer and gear reducer gearbox
The reducer developed by our hospital features high power, low speed and heavy load, including:
(1) Mining and lifting equipment supporting series of planetary gear reducer, series of parallel shaft cylindrical gear reducer, series of cone-cylindrical gear reducer and series of crusher reducer;
(2) Building materials equipment supporting series of reducer and a variety of large gear ring diameter up to 10m;
(3) Metallurgical equipment supporting reducer: 750, 850 herringbone gear base, series of cold drawing machine reducer, baosteel, Handan steel, Nanjing steel and other nearly ten steel enterprises of the series of combined gear box, and 30T, 50t converter tilt device;
(4) Sugar pressing equipment supporting a series of planetary gear reducer and a series of parallel shaft cylindrical gear reducer;
(5) Power generation, coal grinding equipment supporting series of reducer, and 200 ~ 2000kW series of planetary gear accelerating device;
(6) Series parallel shaft cylindrical gear reducer for lifting and transporting equipment;
(7) Universal equipment supporting series of planetary gear reducer, and a series of parallel shaft cylindrical gear reducer;
Cement production line mill transmission device is a typical high-power, low-speed and heavy-duty transmission device, which can also be used in mechanical transmission under similar working conditions. The input revolution of the transmission device is not more than 1000r/min, and the ambient temperature is -10 ~ 5℃ (if the temperature is lower than -5℃ or higher than 30℃, lubricating oil heating or cooling device shall be attached). The device can be used for positive and negative operation.
2. Technical performance table of ZJA planetary Reducer and gear reducer gearbox
| No. | Power(kw) | Reducer type |
Rotational speed (r/min) |
Rotation rate | Lubrication method | Oil number | Dimensions(mm) | Weight(kg) | |||
| L | B | H | R | ||||||||
| 1 | 630 | ZJA1250 | 750 | 36～44 |
Concentrated circulation lubrication
|
N220~320 Medium load industrial gear oil |
|||||
| 2 | 800 | ZJA1400 | 2135 | 1880 | 530 | 870 | 11000 | ||||
| 3 | 1000 | ZJA1600 | 2270 | 2090 | 570 | 965 | 15000 | ||||
| 4 | 1250 | ZJA1820 | 2430 | 2390 | 670 | 1110 | 22776 | ||||
| 5 | 1600 | ZJA2060 | 600 | 37～41 | |||||||
3.ZJA series planetary reducer, its technical characteristics are:
(1) Two-stage gear transmission;
(2) The sun wheel and the planet wheel are made of advanced nickel-chromium steel. After carburizing and quenching heat treatment and grinding, the precision can reach GB/T10095 level 6 or above. The inner gear ring is made of advanced chromium-molybdenum steel after quenching and tempering treatment, the precision can reach GB/T10095 level 7.
(3) Using floating components and drum gear coupling to ensure the load between the planetary wheels;
(4) The transmission efficiency of the reducer is not less than 0.96;
(5) The service life of the reducer is not less than 10 years;

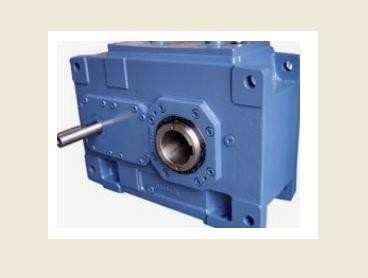

Gear Reducer Gearbox
