Product Details:
Payment & Shipping Terms:
|
| Name: | Brick Making Machine | Type: | QT9-15D Multi-functional Automatic Brick Making Machine |
|---|---|---|---|
| Plate Size: | 1380x780x(25-45)mm | Vibration Force: | 108kN |
| Weight: | 10 T | Power: | 51.5 KW |
| Material: | Slag, Slag, Gravel, Sand, Stone Powder | Usage: | Mining |
| Classification: | Metallurgy Machine | Warranty: | 12 Months |
| High Light: | QT9-15D Metallurgy Machine,QT9-15D Automatic Brick Making Machine,Metallurgy Automatic Brick Making Machine |
||

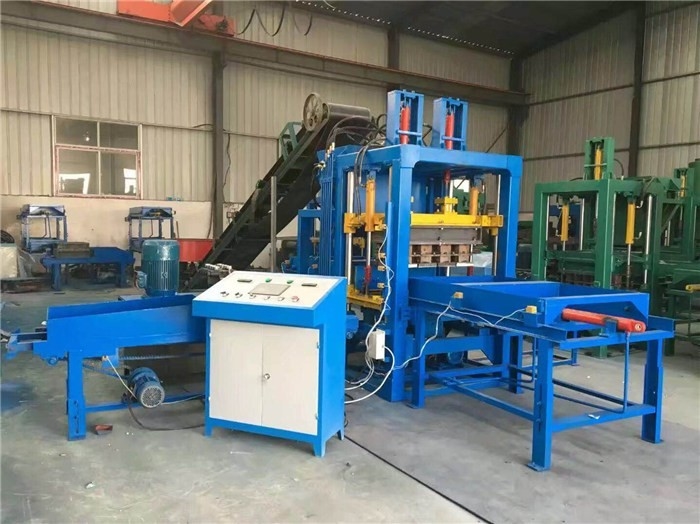

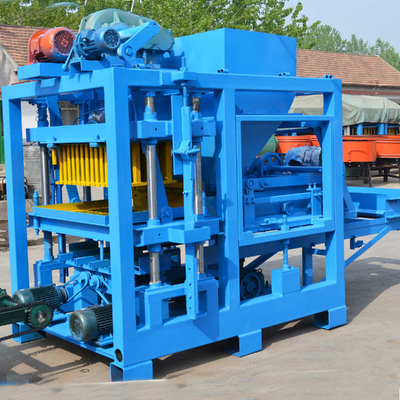

Metallurgy Machine QT9-15D Multi-Functional Automatic Brick Making Machine
1. Characteristics of the Metallurgy Machine QT9-15D Multi-Functional Automatic Brick Making Machine
(1) This model can produce all kinds of special brick types such as roadside stone, phantom color floor tile, sea fill stone, PC sand permeable brick, dangerous waste solid waste, large retaining block, U-shaped water trench, water conservancy slope protection brick, concrete block, standard brick, porous brick, road brick and so on;
(2) The fabric car adopts double cylinder warp arm propulsion, the aggregate car double motor control, the distribution mode adopts double cylinder warp arm propulsion +360° rotating distribution form, fast speed, strong density;
(3) Add aggregate and cotton for two times, and clean the surface of the mold for three times for the fabric to ensure the beauty of the product;
(4) Hydraulic speed, pressure, stroke, high efficiency and energy saving can be adjusted according to different products;
2. Metallurgy Machine QT9-15D Multi-Functional Automatic Brick Making Machine parameters
| The host power | 51.5 kW |
| The host weight | 10t |
| Main engine dimensions | 5030x2300x3650mm |
| Plate size | 1380x780x(25-45)mm |
| The molding cycle | 15-20 seconds/time |
| Vibration force | 108kN |
| Production capacity | 39.6 million RMB/year (240x115x53mm) |
| Execution standard | JC/T2094-2021 |
3.Metallurgy Machine QT9-15D Multi-Functional Automatic Brick Making Machine Output parameters
| Each Time the molding | The Netherlands brick 200 xl00x mm (60/80) | 36 Block/die |
Shift output (10 hours) 72000 pieces |
| 240 x115x53mm standard brick | 55 Block/die |
Shift output (10 hours) 132000 pieces |
|
| PC imitation stone brick 600 x 300x (60/80)mm | 4 Block/die |
Shift output (10 hours) 8800 pieces |
|
| Hollow brick 390 x 190 x 190mm | 9 Block/die |
Shift output (10 hours) 20000 pieces |
|
| 1220 x600x400mm retaining wall | 1 piece/die |
Shift output (10 hours) 1800 pieces |
|
| Block 700 x400x400mm clod | 3 Block/die |
Shift output (10 hours) 5400 pieces |
|
| Block 400 x350x400mm clod | 6 Block/die |
Shift output (10 hours) 10800 pieces |
|
| Block 300 x350x400mm clod | 8 Block/die |
Shift output (10 hours) 14400 pieces |
