| Name: | Brick Making Machine | Type: | QT12-15D Multi-Functional Automatic Brick Making Machine |
|---|---|---|---|
| Plate Size: | 1380x900x(25-45)mm | Vibration Force: | 128kN |
| Weight: | 12 T | Power: | 51.5 KW |
| Material: | Slag, Slag, Gravel, Sand, Stone Powder | Usage: | Mining |
| Classification: | Metallurgy Machine | Warranty: | 12 Months |
| High Light: | QT12-15D Metallurgy Machine,QT12-15D Flyash Bricks Making Machine,Multi Functional Flyash Bricks Making Machine |
||

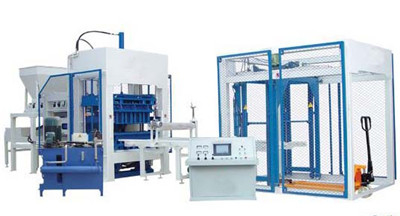

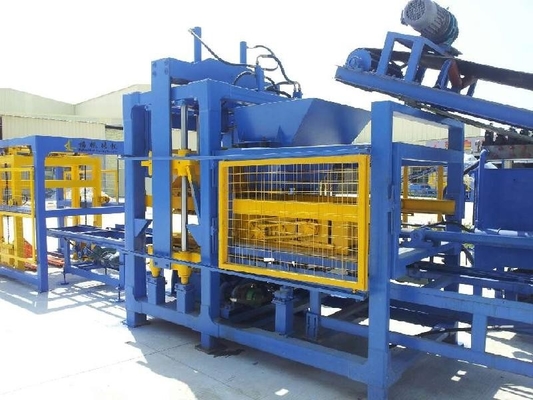

Metallurgy Machine Of QT12-15D Multi-Functional Automatic Brick Making Machine
1. Metallurgy Machine Of QT12-15D Multi-Functional Automatic Brick Making Machine Equipment features:

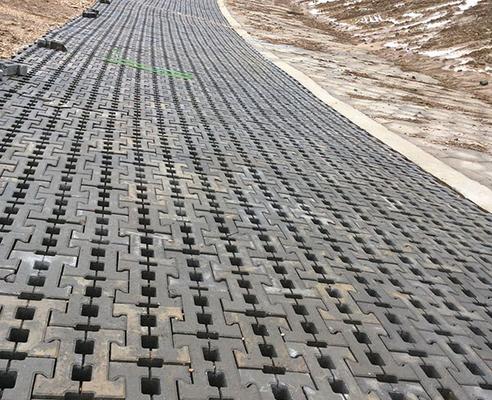

(1) This model can produce all kinds of special brick types such as roadside stone, phantom color floor tile, sea fill stone, PC sand permeable brick, dangerous waste solid waste, large retaining block, U-shaped water trench, water conservancy slope protection brick, concrete block, standard brick, porous brick, road brick and so on;
(2) The extended guide sleeve makes the host run more smoothly, the lifting platform adopts hydraulic automatic lifting, the feeding adopts pneumatic control uninterrupted, and the forming cycle is short:
(3) Compared with the domestic brand block forming machine, the product has more advantages
Smooth operation performance, higher brick making efficiency, and lower failure rate, in performance, efficiency, energy saving, environmental protection and other aspects, far ahead of the same type of domestic products.
2. The equipment parameters ofMetallurgy Machine Of QT12-15D Multi-Functional Automatic Brick Making Machine
| The host power | 51.5 kW |
| The host weight | 12t |
| Main engine dimensions | 5450x2300x3750mm |
| Plate size | 1380x900x(25-45)mm |
| The molding cycle | 15-20 seconds/time |
| Vibration force | 128kN |
| Production capacity | 46.8 /year (240x115x53mm) |
| Execution standard | JC/T2094-2021 |
3. Metallurgy Machine Of QT12-15D Multi-Functional Automatic Brick Making Machine Output parameters
| Each time the molding | Sand machine permeable brick 200xL00x (60/80)mm | 42 Block/die |
Shift output (10 hours) 84000 pieces |
| 240 x115x53mm standard brick | 65 yuan/die |
Shift output (10 hours) 156000 pieces |
|
| Magic color floor tile 300x 300x (60/80)mm | 8 Block/die |
Shift output (10 hours) 1600 pieces |
|
| Hollow brick 390 x 190 x 190mm | 12 Block/die |
Shift output (10 hours) 28800 pieces |
|
| 1280 x400x400mm retaining wall | 2 Block/die |
Shift output (10 hours) 3600 pieces |
|
| 1300 x420x400mm retaining wall | 2 Block/die |
Shift output (10 hours) 3600 pieces |
|
| Block 400 x300x400mm clod | 8 Block/die |
Shift output (10 hours) 14400 pieces |
|
| Block 415 x250x400mm clod | 9 Block/die |
Shift output (10 hours) 16200 pieces |
