| Features: | Efficient Low Consumption | Model: | Super Micron Mill |
|---|---|---|---|
| Grinding Cavity Diameter: | 600 Mm | Classification: | Ore Grinding Mill |
| Type: | HGM60 | Capacity: | 300-12000 Kg/h |
| Weight: | 5t-15t | Warranty: | 12 Months |
| High Light: | Mining Equipment Super Micron Mill,Super Micron Mill Production System,Mining Micro Powder Production System |
||

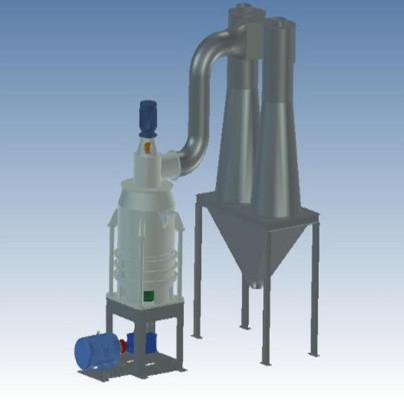

Mining Equipment Super Micron Mill And Micro Powder Production System
1. Working principle of Mining Equipment Super Micron Mill And Micro Powder Production System
The motor of the micro grinding machine drives the spindle and the turntable of each layer to rotate through the reducer, and the turntable drives dozens of ring rollers to roll and rotate freely in the raceway of the grinding ring through the pin.

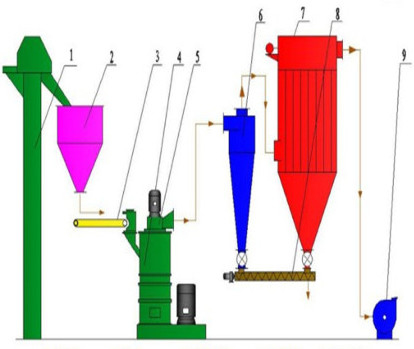

Large pieces of material by the hammer crusher broken into small particles into the storage bin by elevator, electromagnetic vibrating feeder will material evenly to the centre of the wheel, on the material under the action of centrifugal force to circle around, and fall into the inside of the ring raceway is stamping ring rolling, roll grinding, grinding and crushing, the material after the first layer crushing and fall into the second and third layer, Small particles of material after thousands of times of impact, rolling and rubbing into ultrafine powder, in the high pressure centrifugal fan suction action will be external air inhalation machine, and the third layer of pulverized coarse powder into the powder separator.
The eddy current generated by the rotating turbine in the powder separator makes the coarse granular materials fall back and reground. The fine powder enters the cyclone powder collector with the airflow and is discharged from the discharge valve at the bottom of the cyclone powder collector, which is the finished product. The airflow with a small amount of fine dust is purified by the pulse dust collector and discharged through the fan and muffler.
2.Product parameters of Mining Equipment Super Micron Mill And Micro Powder Production System
| Model |
Grinding cavity diameter
(mm) |
Grinding wheel and roller table
|
Feeding size Max ( mm ) |
Finish finenes (Mesh) | Capacity (kg/h) |
Motor power(kw) | dimensions (L×W×H) (m) |
Weight t(kg) | ||||
| Roll QTY | QTY of grinder roll | QTY of roller table |
Main machine |
particle size um | Mesh | Main machine | powder concentrator | air blower | ||||
| HGM60 | 600 | 15 | 3 | ≤10 | 5-45 | 3250-300 | 350-2500 | 37 | 11 | 30 | 10×2×5.5 | 5900 |
| HGM80 | 800 | 21 | 3 | ≤10 | 5-45 | 3250-300 | 600-4000 | 55 | 18.5 | 45 | 11.9×2.7 ×5.8 | 7800 |
| HGM100 | 1000 | 27 | 3 | ≤10 | 5-45 | 3250-300 | 900-6000 | 90 | 30 | 75 | 14.5×3.8 ×6.3 | 10500 |
| HGM1280 | 1280 | 44 | 4 | ≤10 | 5-45 | 3250-300 | 1200-8000 | 132 | 45 | 90 | 17.5×4.5 ×7.5 | 15000 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
