Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | Air Swept Coal Mill |
|---|---|---|---|
| Production Capacity: | 8-9 T/h | Speed Ratio: | 6.3 |
| Feed Size: | ≤25mm | Weight: | 36.7 T |
| Warranty: | 12 Months | Classification: | Ore Grinding Mill |
| High Light: | 1400 KW Ore Grinding Mill,1400 KW Air Swept Coal Mill,250 KW Air Swept Coal Mill |
||

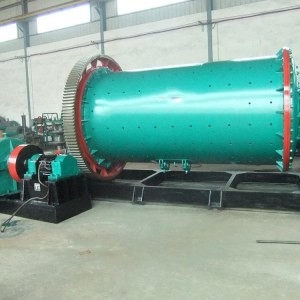

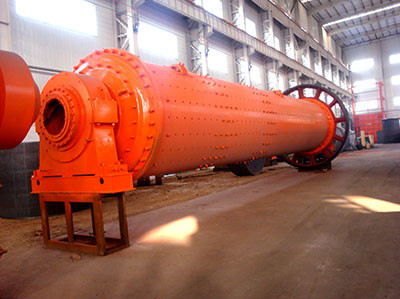

250-1400 KW Power YR Series Air Swept Coal Mill Of Ore Grinding Mill
1. Product description of ore grinding mill air swept coal mill
(1) Air swept mill | air swept coal mill specifications:
φ4×8 3.5m = cylinder diameter × cylinder effective length drying bin length.
(2) Development process of wind-swept coal mill
From the past φ2.2m, φ2.8m, φ3m, φ3.2m, etc., the development of the current φ3.8m, φ4m, etc. Equipment capacity from 500T /d, 700T/D, 1000T /d, 2500T/D, 5000T /d, 6000T /d
2. Product parameters of ore grinding mill air swept coal grinding
| SPEC(diameter×length) | Rev (r/min) |
Feed size(mm) | Production capacity(t/h) | Load of grinding media (t) |
Main motor | Main reducing gear | Weight (t) |
|||
| Type | Power (kw) | Re(rpm) | Type | Speed ratio | ||||||
| φ2.2×4.4 | 22.4 | ≤25 | 8～9t/h | 18t | YRKK4501-6 | 250 | 986 | ZD60-11 | 6.3 | 36.7 |
| φ2.2×5.8 | 22.4 | ≤25 | 5.5～7 | 23.5～25 | Y4005-8 | 280 | 750 | ZD70-10 | 5.6 | 45 |
| φ2.4×4.75 | 21.2 | ≤25 | 14 | 22～24 | YR4501-8 | 315 | 740 | ZD60-8 | 4.5 | 49 |
| φ2.4×4 2 | 20.2 | ≤25 | 10～11 | 19 | YRKK450-8 | 250 | 740 | ZDY355 | 4.5 | 60 |
| φ2.4×4.5 2 | 20.2 | ≤25 | 10～12 | 20.8 | YRKK500-8 | 280 | 740 | JDX45 | 4.5 | 68 |
| φ2.6×(5.25 2.25) | 19.7 | ≤25 | 9～10 | 28 | YRKK500-8 | 400 | 740 | ZDY450 | 4.5 | 87.4 |
| φ2.8×(5 3) | 18.7 | ≤25 | 13～13.5 | 32 | Y5001-8 | 500 | 740 | JDX560 | 4.5 | 102 |
| φ2.9×4.7 | 19.1 | ≤25 | 14～19 | 34.4 | YR560-8 | 500 | 743 | MBY560 | 5.6 | 79 |
| φ2.5×3.9 | 21 | ≤25 | 14 | 21 | JR138-8 | 280 | 740 | ZD70-9 | 5 | 49.5 |
| φ3×(6.5 2.5) | 18.3 | ≤25 | 17～19 | 43 | YRKK5603-8 | 630 | 740 | MBY560 | 5 | 120 |
| φ3.2×4.8 | 16.7 | ≤25 | 20 | 48 | YR630-8 | 630 | 740 | MBY560 | 5 | 118 |
| φ3.2×(6.5 2) | 16.9 | ≤25 | 20 | 50 | YRKK560-8 | 710 | 740 | JDX630 | 5 | 137 |
| φ3.5×8 | 17.2 | ≤25 | 55～60 | 80 | YRKK710-8 | 1000 | 740 | MBY800 | 6.3 | 182 |
| φ3.8×(7.75 3.5) | 16.7 | ≤25 | 85 | 85 | YRKK710-8 | 1400 | 740 | JDX90-WX-2A | 5.6 | 215 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
