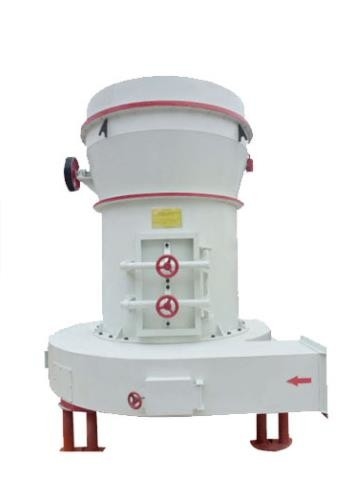

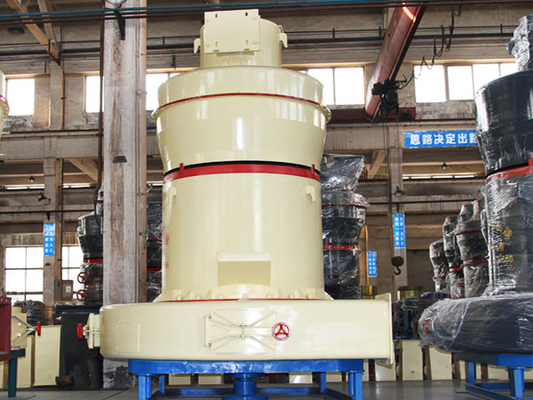

High Pressure Ore Grinding Mill Gypsum Raymond Roller Mill Machine

Ore Grinding Mill High Pressure Gypsum Raymond Roller Mill Machine

1. Main structure of Ore Grinding Mill High Pressure Gypsum Raymond Roller Mill Machine

The machine structure is mainly composed of main machine, analyzer, fan, finished cyclone separator, micro powder cyclone separator and air duct. Among them, the host machine consists of a frame, air inlet volute, shovel, grinding roller, grinding ring, cover shell.

2. Product parameters of Ore Grinding Mill High Pressure Gypsum Raymond Roller Mill Machine

3. Working principle of Raymond mill:

Work, will need to crush materials from hood shell side into the hopper add machine, relying on roller device of hanging on the host plum flower shelf, around the vertical axis of revolution, itself rotates at the same time, due to the effect of rotating centrifugal force when the roller swing outward, press in ring, the shovel knife scooping up material to between grinding roller and grinding ring, The purpose of crushing materials is achieved by rolling and pressing the grinding roller.

Air selection process: after the material is ground, the fan will blow the wind into the main machine housing, blowing the powder, sorting by the analyzer placed above the grinding room, the fine and coarse materials fall into the grinding room for regrinding, fineness in accordance with the specifications of the wind into the cyclone collector, collected after discharging through the powder outlet, that is, the finished product. The air flow is returned to the fan by the return duct at the upper end of the big cyclone collector. The wind path is circulating and flows under negative pressure. The increased air volume of the circulating air path is discharged through the exhaust pipe between the fan and the host machine, and enters the small cyclone collector for purification treatment.

Company Information:

Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.

Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
