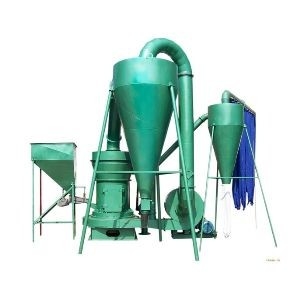

Small Noise Ore Grinding Mill High Pressure Centrifugal Superfine Mill
1. Introduction of centrifugal superfine mill of Ore Grinding Mill
Centrifugal superfine mill (superfine mill for short) is a new generation of superfine mill equipment developed by our factory on the basis of advanced powder making equipment at home and abroad. Can replace Raymond mill, smooth production of ultrafine powder, fineness can be adjusted between 80 mesh -1500 mesh.
2. Characteristics of centrifugal superfine mill of Ore Grinding Mill
(1) Small noise, small vibration;
(2) high pressure, much fine powder;
(3) Uniform wear of ring and roller, long service life, 3-5 times of ordinary Raymond mill;
(4) Suitable for hard material processing;
(5) The iron content of micro powder is low;
(6) Can operate continuously, during the operation does not affect the roller bearing room oil filling;
(7) Small power consumption, high efficiency, convenient installation and maintenance;
(8) There is no scraper feeding in the mill, and the failure rate is low.
3. Application of High fine mill roller mill
High fine mill suitable for barite, calcite, potassium feldspar, talc, marble, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, manganese ore, titanium ore, copper ore, chrome ore and other minerals, refractories, coal powder, carbon black, clay, bone powder, titanium dioxide, iron oxide, such as quartz, urea Morse hard The degree is not more than 7, humidity below 6% of non-flammable and explosive minerals, chemical building materials and other industries more than 300 kinds of materials.
4. Technical parameters of high fine mill
| Type | -18 | -21 | -26 | -27 | -30 |
| Feed size(mm) | 8-15 | 8-15 | 10-15 | 15-20 | 15-25 |
| Finished size(mm) |
0.04-0.02 (400-600 mesh) |
0.04-0.02 (400-600 mesh) |
0.04-0.02 (400-600 mesh) |
0.04-0.02 (400-600 mesh) |
0.04-0.02 (400-600 mesh) |
|
Center shaft speed (rev/min) |
300 | 190 | 180 | 170 | 150 |
| Motor power(kw) | 24-29 | 32.2 | 35.7-38 | 40-42.5 | 57.5-59.5 |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
