1. Product introduction of cement mill cement ball Mill ore grinding mill

Cement mill - cement ball mill is completed in 2003 domestic ten thousand tons of cement production line host equipment, is the material is broken, and then the key equipment for crushing. Ball mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metal dressing and glass ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials.

2. The technical characteristics of cement mill cement ball Mill ore grinding mill

(1) The transmission forms of the drum mill are edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;

(2) The support mode of static and dynamic pressure bearings at two ends is generally adopted, and fully enclosed self-allocating 1200 line contact "rocker type" bearings are adopted. Single-slide track, double-slide track static and dynamic pressure support mode or full static pressure support can also be adopted.

(3) The large open gear adopts the American AGMA standard design, equipped with a reliable sealing gear housing, with glycerin automatic spray lubrication device;

(4) The cylinder is the key part of the mill, and the finite element analysis of it is carried out by computer to ensure the reliability of its use;

(5) Large and medium-sized mill equipped with slow driving device;

(6) Large and medium-sized mills are equipped with high and low pressure lubrication stations;

(7) Control and protection system adopts PLC control.

3. Working principle of cement mill cement ball Mill ore grinding mill

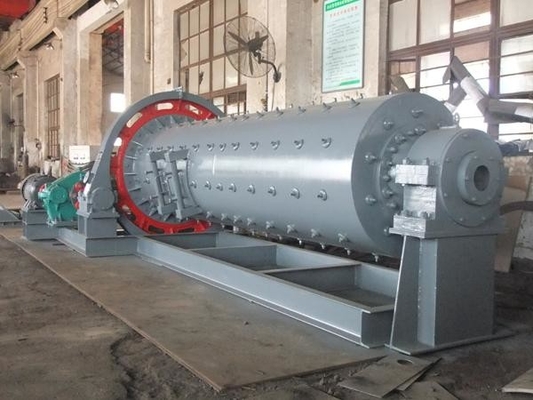

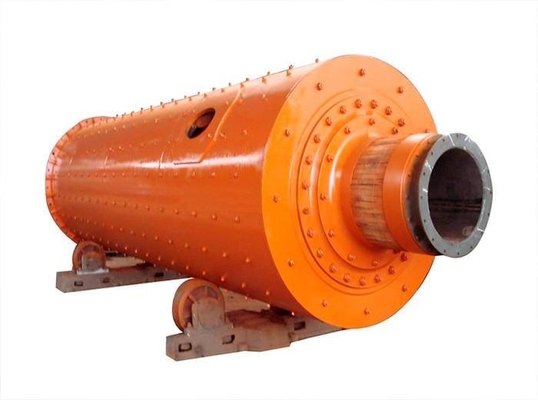

This machine is cylindrical rotary device, external along the gear transmission, two bin, lattice ball mill. The material from the feeding device through the feeding hollow shaft spiral evenly into the first bin of the mill, the bin has stepped lining plate or corrugated lining plate, loaded with different specifications of steel balls, cylinder rotation produces centrifugal force will bring the steel ball to a certain height after falling, the material has a heavy blow and grinding effect. After the material is roughed in the first warehouse, it enters the second warehouse through the single layer partition board. The warehouse is inlaid with flat lining board and steel ball, and the material is further grinded. The powder is discharged through the unloading grate to complete the grinding operation.

4. Product parameters of cement mill cement ball Mill ore grinding mill

Luo mine cement mill | cement ball mill :
