| Product Name: | Concrete Mixing Station | Type: | HZS35 Concrete Mixing Plant |
|---|---|---|---|
| Blender Model: | JS750 | Productivity: | 35m³/h |
| Nominal Capacity Of Blender: | 750 L | Maximum Aggregate Size: | ≤ Φ80mm |
| Classification: | Cement Plant Equipments | Warranty: | 12 Months |
| High Light: | 35m3/H Cement Plant Equipments,35m3/H HZS35 Concrete Batching Plant,Mining HZS35 Concrete Batching Plant |
||

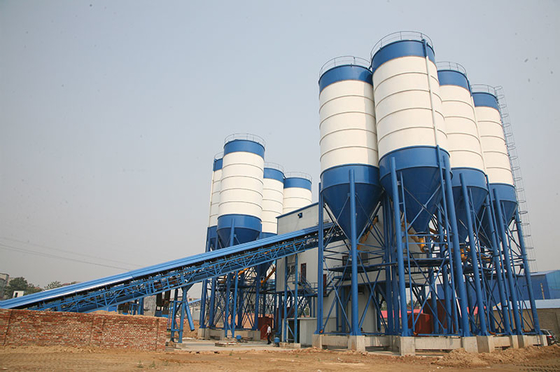

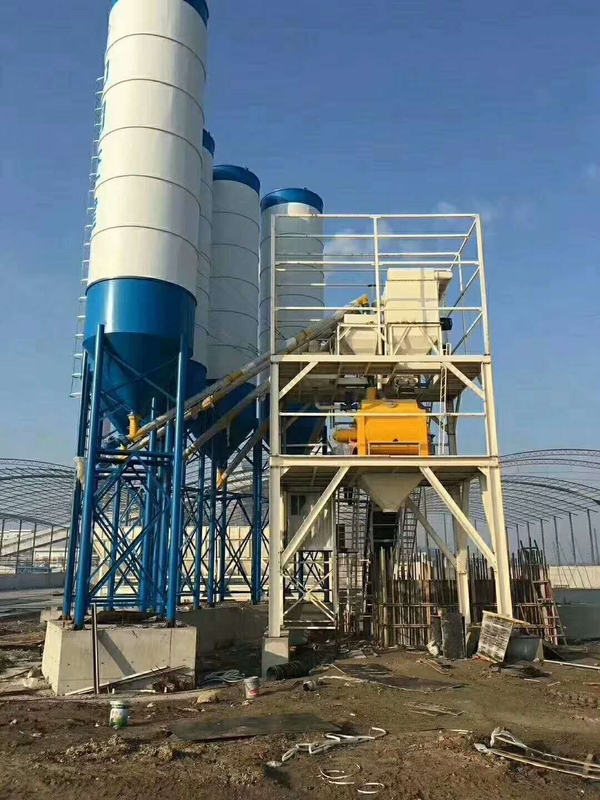

Cement Plant Equipments HZS35 Concrete Mixing Plant For Mining
1. Performance profile of HZS35 concrete mixing plant Cement Plant Equipments
HZS35 concrete mixing station is composed of batching, mixing, electrical control and other parts of the automatic concrete mixing set of equipment.It is suitable for medium and above scale construction site, prefabricated parts factory and commercial concrete production plant.
2. Main technical parameters of HZS35 concrete mixing plant Cement Plant Equipments
| Main technical parameters | |||
| Model | HZS35 | Theoretical Productivity | 35m³/h |
| Model of blender | JS750 | Discharge height | ≥3.8m |
| Stirring power | 30KW | Maximum aggregate size | ≤ Φ80mm |
|
Ingredient Model No. |
PLD1200 | Bone bin capacity | 3x2.5m³ |
| Nominal capacity of blender | 750L | Powder bin capacity | 1*100t |
| Aggregate belt conveyor production rate | 100T/h | Maximum yield of screw conveyor | 40T/h |
| Aggregate weighing range and accuracy | (0 ~ 3000 kg), ±2% | Cement weighing range and precision | (0 ~ 1500 kg), ±1% |
| Water weighing range and accuracy | (0 ~ 600 kg), ±1% | Admixture weighing range and accuracy | (0 ~ 150 kg), ±1% |
3. Main features of HZS35 concrete mixing plant Cement Plant Equipments:
(1) The modular structure, the machine installation, relocation is very convenient, low cost of equipment.
The main machine adopts JS750 (JS750) type double horizontal shaft force concrete mixer, mixing quality is good, high efficiency.
The aggregate is batched by batching machine with accurate measurement and high production efficiency.
The ingredients of cement, water and liquid admixture are measured by electronic scale, with high accuracy. The water supply system adopts the principle of pump pressure, so that the water flow rate is accelerated and the spray is uniform
The aggregate feeding adopts rail hopper feeding, simple installation, less occupation area, high efficiency.
The main components of the electrical control system are domestic famous brands, reliable performance, easy to operate and use.
(2) Overall beautiful and generous, easy to install and disassemble, easy to repair and replace parts;
All material scales are independent measurement, a scale a table, improve the measurement accuracy;
Advanced control system, accurate and stable ingredients, advanced calculation method, effective control error;The storage and call of the formula is flexible, and any formula can be called at any time.
4. Main components of HZS35 concrete mixing plant Cement Plant Equipments
| ③ Parameters of measurement system | ||||
|
Water metering system |
Weighing hopper | 200Kg | 1 | pcs |
| stents | 1 | pcs | ||
| The sensor | 500Kg | 3 | pcs | |
| Discharge the water pump | 1 | set | ||
| Pneumatic butterfly valve | Ф 300 mm | 1 | pcs | |
| On the pump | 1.1 kw | 1 | set | |
| Water pump bracket | 1 | set | ||
| Sheung water line, valve | 1 | set | ||
|
Cement metering system |
Weighing hopper | 400Kg | 1 | pcs |
| stents | 1 | pcs | ||
| The sensor | 500Kg | 3 | pcs | |
| Pneumatic butterfly valve | Ф 250 mm | 1 | set | |
|
Additive counting system |
Admixture counting box | 30Kg | 1 | pcs |
| The sensor | 50Kg | 1 | pcs | |
| stents | 1 | pcs | ||
| Pneumatic butterfly valve | Ф 50 mm | 1 | pcs | |
| Admixture pump | 0.55 KW | 1 | set | |
| Pipe and valve door | 1 | set | ||
HZS35 Concrete Mixing Plant Cement Plant Equipments With 35m³/H Capacity
