HZS35 Concrete Mixing Plant Of Cement Plant Equipments
1. Performance profile of HZS35 concrete mixing plant Cement Plant Equipments
HZS35 concrete mixing station is composed of batching, mixing, electrical control and other parts of the automatic concrete mixing set of equipment.It is suitable for medium and above scale construction site, prefabricated parts factory and commercial concrete production plant.
2. Main technical parameters of HZS35 concrete mixing plant Cement Plant Equipments
| Main technical parameters | |||
| Model | HZS35 | Theoretical Productivity | 35m³/h |
| Model of blender | JS750 | Discharge height | ≥3.8m |
| Stirring power | 30KW | Maximum aggregate size | ≤ Φ80mm |
|
Ingredient Model No. |
PLD1200 | Bone bin capacity | 3x2.5m³ |
| Nominal capacity of blender | 750L | Powder bin capacity | 1*100t |
| Aggregate belt conveyor production rate | 100T/h | Maximum yield of screw conveyor | 40T/h |
| Aggregate weighing range and accuracy | (0 ~ 3000 kg), ±2% | Cement weighing range and precision | (0 ~ 1500 kg), ±1% |
| Water weighing range and accuracy | (0 ~ 600 kg), ±1% | Admixture weighing range and accuracy | (0 ~ 150 kg), ±1% |
3. Main components of HZS35 concrete mixing plant Cement Plant Equipments
|
④ Parameters of batching system (PLD1200 three-bin cumulative metering) |
|||
| The motor | 3kw | 4 | set |
| Flat belt | 1 | set | |
| Roller set | 1 | set | |
| Cleaning device | 1 | set | |
| Weighing hopper | 1.2m³ | 1 | pcs |
| Storage bin | 2.5m³ | 3 | pcs |
| Vibrator | 1 | set | |
| The overall structure | 1 | set | |
| Weighing sensor | 1000Kg | 3 | pcs |

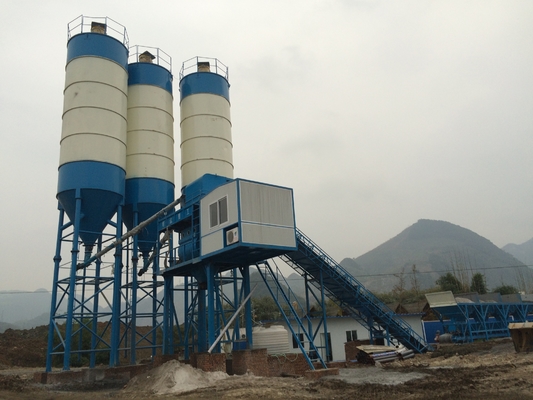

Mining Machine HZS35 Concrete Mixing Plant Of Cement Plant Equipments

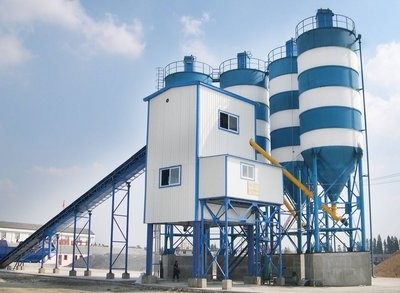

Mining Machine HZS35 Concrete Mixing Plant Of Cement Plant Equipments
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
