| Condition: | New | Product Name: | Raw Material Ball Mill |
|---|---|---|---|
| Drive Mode: | Edge,center | Feed Size(mm): | ≤25 |
| SPEC(m): | φ 2.2x 6.5～φ 4.6 X 14.0 | Classidication: | Ore Grinding Mill |
| Voltage (v): | 6000 | Warranty: | 12 Months |

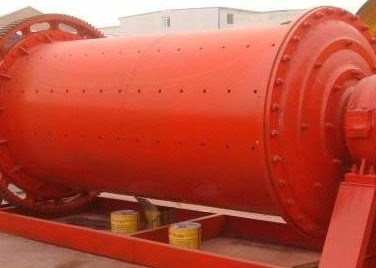

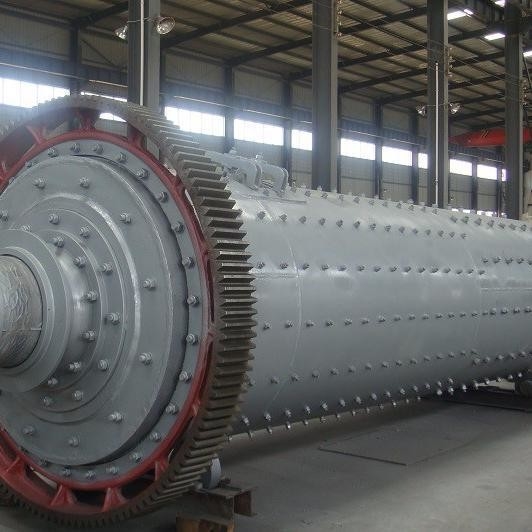

4200 KW High Power Ore Grinding Mill Raw Material Ball Mill
1. Luo Mine raw material mill specifications and Models of ore grinding mill:
Tube mill for cement production: raw material mill and cement mill specifications from φ2.2x6.5 ~ φ4.6 x 14.0m, a total of 46 specifications. Yield 15 ~ 220 t/d.
2. Ore Grinding Mill Raw material ball mill usage:
Raw material ball mill is mainly used for grinding finished products and raw materials in cement factory, and also for grinding various ores and other grindable materials in metallurgical, chemical, electric power and other industrial and mining enterprises. Can be used for open flow grinding, also suitable for circular flow grinding with powder separator.
Raw material ball mill has strong adaptability to materials, continuous production, large crushing ratio, easy to adjust the fineness of grinding products and so on. It can be produced either by dry method or by wet method, or by grinding and drying at the same time.
3. Product parameters of Ore Grinding Mill:
Technical performance table of main machine of raw material mill
| No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | Feeding size (mm) | Load of grinding media (t) | Effective volume |
Production mode
|
Drive mode | Main motor | Overall dimension | Device weight (T) | Note | |||
| Power (kw) | Voltage (V) | L | W | H | |||||||||||
| 1 | Φ2.2×6.5 | 15-16 | 22 | ＜20 | 22 | 18 | Drying | Edge | 320 | 6000 | 12280 | 5390 | 4210 | 52 | |
| 2 | Φ2.2×8 | 30 | 20.8 | ＜25 | 45 | Dry method | 560 | 6000 | 17215 | 5564 | 4540 | 81 | |||
| 3 | Φ2.2×11 | 22-25 | 21 | ＜25 | 56 | 36 | Wet method | Center | 630 | 6000 | 24080 | 4540 | 3229 | 106 | |
| 4 | Φ2.2×11 | 22-25 | 21.5 | ＜25 | 40～45 | 43 | Edge | 500 | 6000 | 20020 | 6512 | 4960 | 105 | ||
| 5 | Φ2.2×13 | 29-30 | 21.5 | ＜25 | 60 | 43 |
Center
|
630 | 6000 | 26183 | 4540 | 3229 | 118.4 | ||
| 6 | Φ2.2×13 | 24-25 | 21.5 | ＜25 | 60 | 43 | Dry method | 630 | 6000 | 26079 | 4540 | 3520 | 113 | ||
| 7 | Φ2.2×13 | 40-46 | 19 | ＜25 | 65 | 50 | Wet method | 800 | 6000 | 27540 | 4540 | 3415 | 134 | ||
| 8 | Φ2.2×13 | 40 | 18.9 | ＜25 | 65 | 50 | Dry method | 800 | 6000 | 27345 | 6040 | 3620 | 145 | ||
| 9 | Φ2.6×13 | 43-50 | 19.4 | ≤20 | 80 | 60 | Wet method | Edge | 1000 | 10000 | 20973 | 5616 | 5675 | 152.3 | |
| 10 | Φ2.6×13 | 43-50 | 19.4 | ≤20 | 80 | 60 | 1000 | 10000 | 20973 | 6507 | 5675 | 153 | |||
| 11 | Φ3×9 | 36-42 | 17.8 | ＜15 | 70-80 | Dry method | 1000 | 6000 | 23285 | 5965 | 3878 | 136.6 | |||
| 12 | Φ3×11 | 60-65 | 17.4 | ＜25 | 90-100 | 69 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | ||
| 13 | Φ3×12 | 55-58 | 17.7 | ＜20 | 95-100 | 76 | Wet method | 1250 | 6000 | 30800 | 5720 | 3900 | 198.6 | ||
| 14 | Φ3.2×7 1.8 | 48-53 | 18 | ＜20 | 55-58 | 44.5 | Drying | 1000 | 6000 | 24700 | 5120 | 4230 | 167.5 | ||
| 15 | Φ3.2×10 | 55 | 17.83 | ＜20 | 65 | 44.5 | 1000 | 6000 | Removing the middle | 5300 | 186.9 | Middle unloading | |||
| 16 | Φ3.4×7 1.8 | 54 | 16.9 | ＜20 | 65 | 51.5 | 1000 | 6000 | 22075 a | 5120 | 4230 | 184.4 | Motor length | ||
| 17 | Φ3.4×7.5 1.8 | ～60 | 16.9 | ＜20 | 70 | 54.58 | 1250 | 6000 | 27180 | 5720 | 4230 | 214～217.5 | |||
| 18 | Φ3.5×10 | 75 | 16.69 | ＜20 | 80 | 64.6 | 1250 | 6000 | 25382 | 5802 | 4830 | 170 | Middle unloading | ||
| 19 | Φ3.8×9 | 90-95 | 16.5 | ＜15 | 130 | 94 | 2000 | 6000 | 28521 | 550 | 5600 | 256.3 | |||
| 20 | Φ3.8×8.5 3.5 | ～90 | 16.5 | ＜20 | 100 | 89.4 | 1600 | 6000 | 32504 | 6770 | 6030 | 305.6 | |||
| 21 | Φ4.6×8.5 3.5 | 150 | 15 | ＜20 | 150 | 89.4 | 2800 | 21739 | 6990 | 9000 | 310.7 | ||||
| 22 | Φ4.6×10 3.5 | 190 | 15 | ＜25 | 190 | 157 | 3500 | 23599 | 6900 | 4630 | 352** | ||||
| 23 | Φ4.6×9.5 3.5 | 185 | 15.2 | ＜25* | 175-180 | 148 | 3550 | 6000 | 22939 | 5239 | 7550 | 298** | |||
| 24 | Φ4.6×14 | 185-220 | 15 | 210 | 185 | Dry method | Edge | 4200 | 23200 | 11934 | 6370 | 310** | End unloading | ||
| * 95% through; ** does not include transmission and grinding weight. | |||||||||||||||
