| Name: | Slewing Bearing | Outer Diameter Mm: | 50-10000 |
|---|---|---|---|
| Cage Materials: | Nylon/ Steel /copper | Hardness H: | 229-269H/Customized |
| Bore Size Mm: | 50-10000 | Classification: | Slewing Ring Bearing |
| Warranty: | 12 Months | Ports: | QingDao,ShangHai,TianJin |

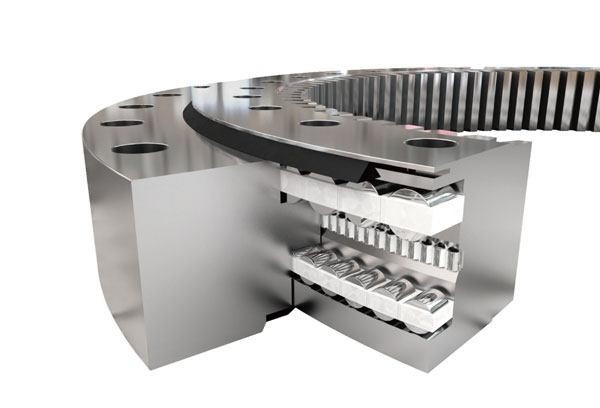

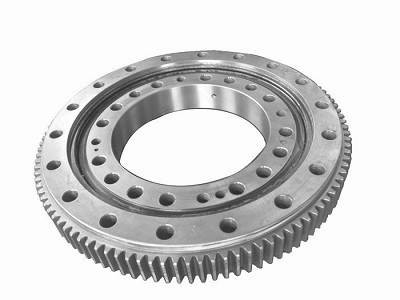

Slewing Ring Bearing And Cylindrical Roller Combined Slewing Bearing
1. Product parameters of Slewing Ring Bearing
Four point contact ball rotary bearings Our four point contact ball rotary bearings consist of two seat rings. In this rotary bearing, the ball makes contact with the circular raceway at four points. Bearing can withstand axial force, radial force and resultant torque at the same time. Double row ball four Point contact rotary bearing with different diameters Our double row ball four point contact rotary bearing with different diameters is a rotary table bearing designed with three seat rings. Steel balls and isolation blocks can be arranged between the inner raceway and the outer raceway. According to the bearing condition, the diameter of the steel balls in the upper and lower rows is different.
2. Product description of Slewing Ring Bearing
Supporting wheel supports rotary kiln operation, and supporting wheel bearing is the key to support rotary kiln normal operation. The babbitt alloy used by the rotary kiln bearing bears all the load of the machine, so good lubrication has a great relationship with the life of the bearing, which directly affects the service life and operation rate of the machine, so the lubricating oil injected must be clean and the seal must be good. Lack of lubrication will cause the bearing to burn out because of high temperature.
Slewing Ring Bearing And Cylindrical Roller Combined Slewing Bearing
| Type |
Single row four point contact ball slewing bearing Double row crossed cylindrical roller slewing bearings Double row ball slewing bearings Wind power bearings Non-standard customized slewing bearing with inner/ outer gear |
| Rollng elements | Steel ball / Cylinder Roller |
| Bearing Material | 50Mn/42CrMo/42CrMo4V /Customized |
| Cage Material | Nylon/ steel /copper |
| Structure | taper pin, Mounting holes, Inner ring, grease fitting, load plug, seals, roller, spacer balls or separators |
| Outer diameter | 50-10000mm |
| Bore size | 50-10000mm |
| Mounting hole | Through hole/Tapped hole |
| Raceway hardness | 55-62HRC |
| Inner and outer ring modulation hardness |
229-269HB/Customized |
| Gear type | No gear, Internal gear, External gear |
| Certificate | SGS, ISO9001 |
| Application area | Ladle turret, Stacker crane, Bucket wheel machine, Solar heliostat Tracking System, port crane, Cabling machine, tower crane, offshore platform, ferris wheel, Palletizing robot, Rotary metallurgical furnace, can packing machine, Wind blade transporter, shield tunneling machine, tube push bench, excavator |
