Name: | Gear Reducer | Power (KW): | 630-4500 |
---|---|---|---|
Product: | Planetary Gear Reducer | Coupling Device (GICLA): | GICLA1,2,3,4,5,6,7 |
Main Reducer Type: | ZJA Type, JGF Type, MGF Type, MB Type | Thin Oil Lubrication Station: | KXH-63,KXH-100 |
Warranty: | 12 Months | Classification: | Gear Reducer Gearbox |
High Light: | Mining Equipment Gear Reducer Gearbox,Planetary Gear Reducer Gearbox,Mining Equipment Planetary Gear Reducer |

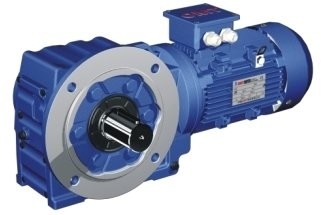

Mining Equipment Gear Reducer Gearbox And Planetary Gear Reducer
1. Introduction of high-power reducer and gear reducer gearbox
Since 1970s, our institute has introduced a variety of complete sets of reducer design, manufacturing, installation and maintenance technology from RENK Company of Germany, F.L. Mid-th Company of Denmark, CITROEN of France and other companies. Over the years, we have absorbed advanced technology from SIEMAG, MAAG, DANIELI, KHI and other companies. The advanced technology mentioned above and the new technology developed through improvement and innovation over the years have been integrated into product design and development, forming their own intellectual property rights, developed a number of characteristic technical products, such as 2000kW planetary reducer; The largest 4×5000kN ship lift reducer; The first MB25 hard tooth surface, large torque, multi-point meshing, double split edge transmission device for cement mill in China; And KF300 reducer with the largest φ 1100mm punch in China, its rated output torque is 3000kN. M, the actual up to 4500kN. M.
2. Case introduction of characteristic reducer and gear reducer gearbox
(1) Sugar pressing equipment supporting a series of planetary gear reducer and a series of parallel shaft cylindrical gear reducer;
(2) Power generation, coal grinding equipment supporting series of reducer, and 200 ~ 2000kW series of planetary gear accelerating device;
(3) Series parallel shaft cylindrical gear reducer for lifting and transporting equipment;
(4) Universal equipment supporting series of planetary gear reducer, and a series of parallel shaft cylindrical gear reducer;
Cement production line mill transmission device is a typical high-power, low-speed and heavy-duty transmission device, which can also be used in mechanical transmission under similar working conditions. The input revolution of the transmission device is not more than 1000r/min, and the ambient temperature is -10 ~ 5℃ (if the temperature is lower than -5℃ or higher than 30℃, lubricating oil heating or cooling device shall be attached). The device can be used for positive and negative operation.
3. Matching selection table of mill transmission device and mill
Planetary Gear Reducer And Gear Reducer Gearbox Product parameters
No. | Power(kw) | Main reducer | High speed coupling | Coupling device | Slow drive | Thin oil lubrication station | ||||||||
ZJA Type | JGF Type | MGF Type | MB Type | KL Type | ML Type | GCZ Type | TLL Type | ZL Type | MJ Type | MJW Type | ||||
1 | 630 | ZJA1250 | KL1 | ML1 | GCZ1 | GICLA1 | MJ1 | MJW1 | KXH-63 | |||||
2 | 800 | ZJA1400 | MGF80 | KL2 | ML2 | GCZ2 | GICLA2 | KXH-100 | ||||||
3 | 1000 | ZJA1600 | MGF100 | KL3 | ML3 | GCZ3 | GICLA3 | MJ2 | KXH-125 | |||||
4 | 1250 | ZJA1820 | MGF125 | KL4 | ML4 | GCZ4 | GICLA4 | KXH-160 | ||||||
5 | 1600 | ZJA2060 | MGF160 | KL5 | ML5 | GCZ5 | GICLA5 | MJ3 | MJW2 | KXH-200 | ||||
6 | 2000 | ZJA2240 | MGF200 | KL6 | ML6 | GCZ6 | GICLA6 | XHZ-315LK | ||||||
JGF200 | TLL3 | MLK6 | XHZ-315LK | |||||||||||
MB22 | ZL12 | XHZ-315LK | ||||||||||||
7 | 2500 | ZJA2560 | MGF250 | KL7 | ML7 | GCZ7 | GICLA7 | MJ4 | MJW3 | XHZ-350LK | ||||
JGF250 | TLL4 | MILK7 | MJ4 | XHZ-350LK | ||||||||||
MB25 | ZL13 | MJ3 | XHZ-315LK | |||||||||||
8 | 2800 | ZJA2560 | MGF280 | KL7 | ML7 | GCZ7 | GICLA7 | MJ4 | MJ23 | XHZ-350LK | ||||
JGF280 | TLL4 | MILK7 | MJ4 | XHZ-350LK | ||||||||||
MB25 | MJ3 | XHZ-315LK | ||||||||||||
9 | 3200 | JGF320 | GCZ8 | TLL5 | MILK8 | MJ4 | XHZ-400LK | |||||||
MB25A | ZL13 | MJ3 | XHZ-350LK | |||||||||||
10 | 3550 | ZJA2800 | MGF355 | KL8 | ML8 | GCZ8 | GICLA8 | MJ4 | MJW4 | XHZ-400LK | ||||
JGF355 | TLL5 | MILK8 | XHZ-400LK | |||||||||||
MB26 | ZL14 | XHZ-350LK | ||||||||||||
11 | 4000 | JGF400 | GCZ9 | MILK9 | MJ5 | XHZ-400LK | ||||||||
MB26 | ZL14 | MJ4 | XHZ-350LK | |||||||||||
12 | 4500 | MGF450 | KL9 | ML9 | GCZ9 | GICLA9 | MJ5 | MJW5 | XHZ-500LK | |||||
MB28 | MJ5 | XHZ-400LK |
