| Product Name: | Cement Ball Mill | Condition: | New |
|---|---|---|---|
| Type: | Ore Grinding Mill | Application: | Stones And Bulk Materials |
| Warranty: | 12 Months | Uasge: | Building Materials, Chemical |
| Application Industry: | Cement Plant, Steel Mill, Chemical Plant & Incinerator | Port: | QingDao,TianJian,ShangHai |
| High Light: | PLC Control Cement Ball Mill,AGMA Standard Cement Ball Mill,PLC Control Ore Ball Mill |
||
Cement Ball Mill Ore Grinding Mill PLC Control American AGMA Standard
1. Technical characteristics of large cement mill
(1) The transmission forms used by the drum mill include edge leaflet, center drive, multi-point meshing edge drive, etc.; the drive forms include asynchronous motor + reducer + pinion + large gear and synchronous motor + air clutch + pinion + large gear;
(2) Generally, the support method of static and dynamic pressure bearings at both ends is adopted, and a fully enclosed self-aligning 1200 line contact 'rocker type' bearing is used. Full static pressure support;
(3) The large open gear is designed according to the American AGMA standard, equipped with a sealed and reliable gear cover, and equipped with a glycerin automatic spray lubricating device;
(4) The cylinder is the key part of the mill, and a computer is used to carry out finite element analysis on it to ensure the reliability of its use;
(5) The large and medium-sized mills are equipped with slow drive devices;
(6) Large and medium-sized mills are equipped with high and low pressure lubrication stations;
(7) The control and protection system adopts PLC control.
2.Ore grinding mill technical parameters
| NO. | Model(m) | Capacity (t/h) | RPM(r/min) | Abrasive body loading (t) | Effective volume | Main motor | Dimensions(mm) | Weight(T) | |||
| Power(kw) | Voltage(V) | L | W | H | |||||||
| 1 | Φ2.2×6.5 | 13-14 | 22 | 31 | 21.4 | 380 | 6000 | 12385 | 5390 | 4210 | 53 |
| 2 | Φ2.2×11 | 15-16 | 21 | 50 | 36 | 630 | 6000 | 21559 | 4540 | 3520 | 109 |
| 3 | Φ2.2×13 | 16-18 | 21.5 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 |
| 4 | Φ2.4×8 | 15 | 20.8 | 45 | 30 | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 |
| 5 | Φ2.4×13 | 20-23 | 19 | 65 | 51.7 | 800 | 6000 | 27580 | 4540 | 3620 | 138 |
| 6 | Φ2.6×13 | 30-32 | 19.6 | 80 | 60 | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 |
| 7 | Φ3×9 | 28-32 | 17.8 | 70-80 | 55 | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 |
| 8 | Φ3×11 | 36-40 | 18.9 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 |
| 9 | Φ3×11 | 36 | 17.69 | 100 | 69 | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 |
| 10 | Φ3.2×11 | 40-45 | 17.4 | 90-100 | 78 | 1250 | 6000 | 28000 | 5720 | 3672 | 180 |
| 11 | Φ3.5×9.5 | 40 | 18 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 |
| 12 | Φ3.5×11 | 45 | 17.2 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 |
| 13 | Φ3.6×8.5 | 60 | 16.5 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* |
| 14 | Φ3.8×9 | 70-80 | 16.5 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 |
| 15 | Φ3.8×12.5 | 55 | 16.4 | 167 | 123.5 | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 |
| 16 | Φ3.8×13 | 60 | 16.3 | 173 | 128 | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* |
| 17 | Φ4.2×11 | 120 | 15.75 | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | |
| 18 | Φ4.2×11.5 | 130 | 15.99 | 199 | 138 | 2800 | 10000 | 18002 | 8962 | 7520 | 219** |
| 19 | Φ4.2×11.5 | 130 | 16 | 199 | 138 | 2800 | 17259 | 4960 | 5600 | 220** | |
| 20 | Φ4.2×12.5 | 85 | 16 | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | |
| 21 | Φ4.2×12.5 | 145 | 16 | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | |
| 22 | Φ4.2×13 | 75 | 15.6 | 209 | 157 | 3150 | 174450 | 4880 | 8000 | 255** | |
| 23 | Φ4.2×13 | 150 | 15.6 | 209 | 157 | 3150 | 17445 | 4880 | 8000 | 256** | |
| 24 | Φ4.2×13.5 | 80-85 | 15.8 | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |
| 25 | Φ4.2×14 | 95 | 15.6 | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |
| 26 | Φ4.2×14.5 | 95 | 15.8 | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |
| 27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | 4200 | 6000 | 23200 | 11054 | 6370 | 310** |

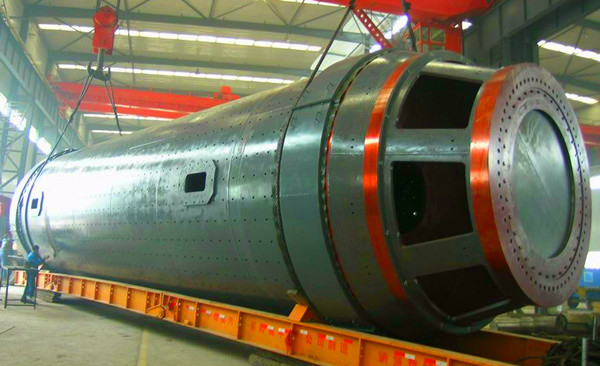

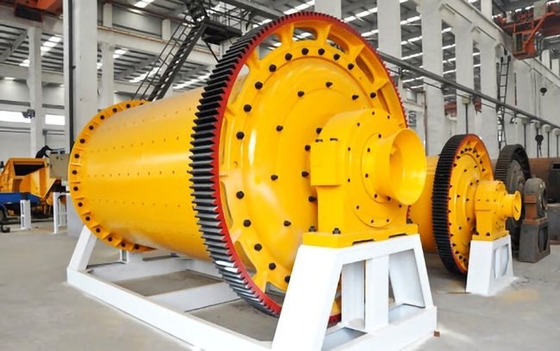

3.Ore grinding mill photo explanation
