Beneficiation Ball Mill Ore Grinding Mill PLC Control American AGMA Standard
1. Ball mill specifications and models
(1) Overflow ball mill: various specifications with various configurations ranging from φ1.5x3.0 to φ8x13m and effective volume of 7.5 to 194.3m3;
(2) Lattice type ball mill: various specifications with various configurations ranging from φ1.2x2.4 to φ4x14m and effective volume of 2.2 to 157m3.
2. Ore grinding mill technical parameters
| Model | Cylinder diameter (mm) | Cylinder length(mm) | Effective volume(m3) | Mill speed(r/min) | Electric motor | Dimensions (L×W×H)(m) | |
Power | RPM(r/min) | ||||||
| MQS12×24 | 1500 | 3000 | 5 | 26.6 | 95 | 742 | 6.4×2.9×2.6 |
| MQS15×15 | 1500 | 1500 | 2.3 | 29.2 | 60 | 725 | 5.7×3.2×2.8 |
| MQS15×24 | 1500 | 2400 | 3.7 | 29.2 | 90 | 730 | 6.9×3.3×2.8 |
| MQS15×30 | 1500 | 3000 | 4.6 | 26.6 | 90 | 742 | 7.6×3.4×2.8 |
| MQS21×30 | 2100 | 3000 | 9.4 | 22.1 | 220 | 740 | 8.5×4.65×3 |
| MQS24×30 | 2400 | 3000 | 12.2 | 21 | 250 | 980 | 8.8×4.7×4.4 |
| MQS24×70 | 2400 | 7000 | 26.66 | 21 | 475 | 740 | 14.3×5.8×4.4 |
| MQS27×21 | 2700 | 2100 | 10.6 | 19.7 | 280 | 733 | 9.7×6.5×4.8 |
| MQS27×36 | 2700 | 3600 | 18.5 | 20.5 | 400 | 187.5 | 12×5.8×4 |
| MQS27×40 | 2700 | 4000 | 20.5 | 20.24 | 400 | 187.5 | 12.4×5.8×4.7 |
| MQS27×60 | 2700 | 6000 | 34.34 | 19.5 | 630 | 589 | 12×5.7×4.5 |
| MQS29×41 | 2900 | 4100 | 26 | 19.34 | 450 | 740 | 9.9×6.1×5.1 |
| MQS31×64 | 3100 | 6400 | 43.7 | 18.3 | 1000 | 167 | 15.2×6.98×5.8 |
| MQS32×31 | 3200 | 3100 | 22.65 | 18.3 | 500 | 167 | 13.9×7.3×6.0 |
| MQS32×36 | 3200 | 3600 | 26.3 | 18.3 | 630 | 167 | 14.3×7.3×6.0 |
| MQS32×40 | 3200 | 4000 | 29.2 | 18.2 | 710 | 980 | 14.7×7.3×6.0 |
| MQS32×45 | 3200 | 4500 | 32.9 | 18.3 | 800 | 167 | 15.2×7.3×5.9 |
| MQS32×54 | 3200 | 5400 | 39.4 | 18.3 | 1000 | 167 | 16.6×7.3×6.1 |
| MQS36×45 | 3600 | 4500 | 41.4 | 17.25 | 1000 | 167 | 13.5×7.3×6.3 |
| MQS36×60 | 3600 | 6000 | 54 | 17.3 | 1400 | 167 | 15.5×8.3×6.3 |
| MQS36×85 | 3600 | 8500 | 79 | 17.4 | 1800 | 743 | 20×8.2×7.1 |
| MQS40×60 | 4000 | 6000 | 69.8 | 16.0 | 1500 | 200 | 17.4×9.34×7.5 |
| MQS40×67 | 4000 | 6700 | 76 | 16.0 | 1600 | 980 | 16×8.43×7.5 |
| MQS40×13.5 | 4000 | 13500 | 157 | 16.5 | 3300 | 980 | 24.2×9.9×7.8 |
3. Technical characteristics of ball mill
(1) The transmission forms used by the drum mill include edge leaflet, center drive, multi-point meshing edge drive, etc.; the drive forms include asynchronous motor + reducer + pinion + large gear and synchronous motor + air clutch + pinion + large gear;
(2) Generally, the support method of static and dynamic pressure bearings at both ends is adopted, and a fully enclosed self-aligning 1200 line contact 'rocker type' bearing is used. Full static pressure support;
(3) The large open gear is designed according to the American AGMA standard, equipped with a sealed and reliable gear cover, and equipped with a glycerin automatic spray lubricating device;
(4) The cylinder is the key part of the mill, and a computer is used to carry out finite element analysis on it to ensure the reliability of its use;
(5) The large and medium-sized mills are equipped with slow drive devices;
(6) Large and medium-sized mills are equipped with high and low pressure lubrication stations;
(7) The control and protection system adopts PLC control.

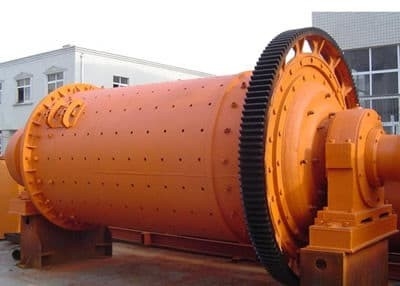

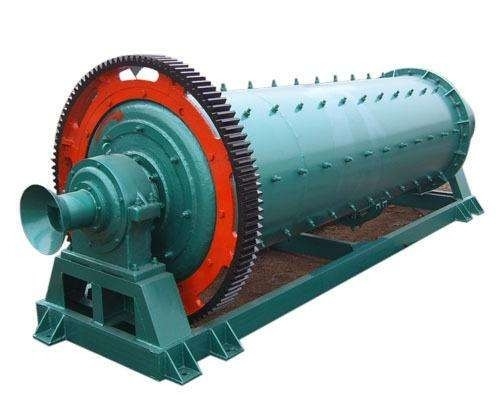

4. Ore grinding mill photo explanation
