| Name: | Pinion Gear, Big Ring Gear | Main Material: | GS42CrMo4Alloy Steel |
|---|---|---|---|
| Applicable Equipment: | Rotary Kiln, Ball Mill | Toothed Face Width: | 1700 Mm |
| Classification: | Mill Girth Gear | Maximum Diameter:: | 16000 Mm |
| Port: | QingDao,ShangHai,TianJian | Warranty: | 12 Months |
| High Light: | Mining Mill Girth Gear,Diameter 16m Mill Girth Gear,Diameter 16m Kiln Girth Gear |
||

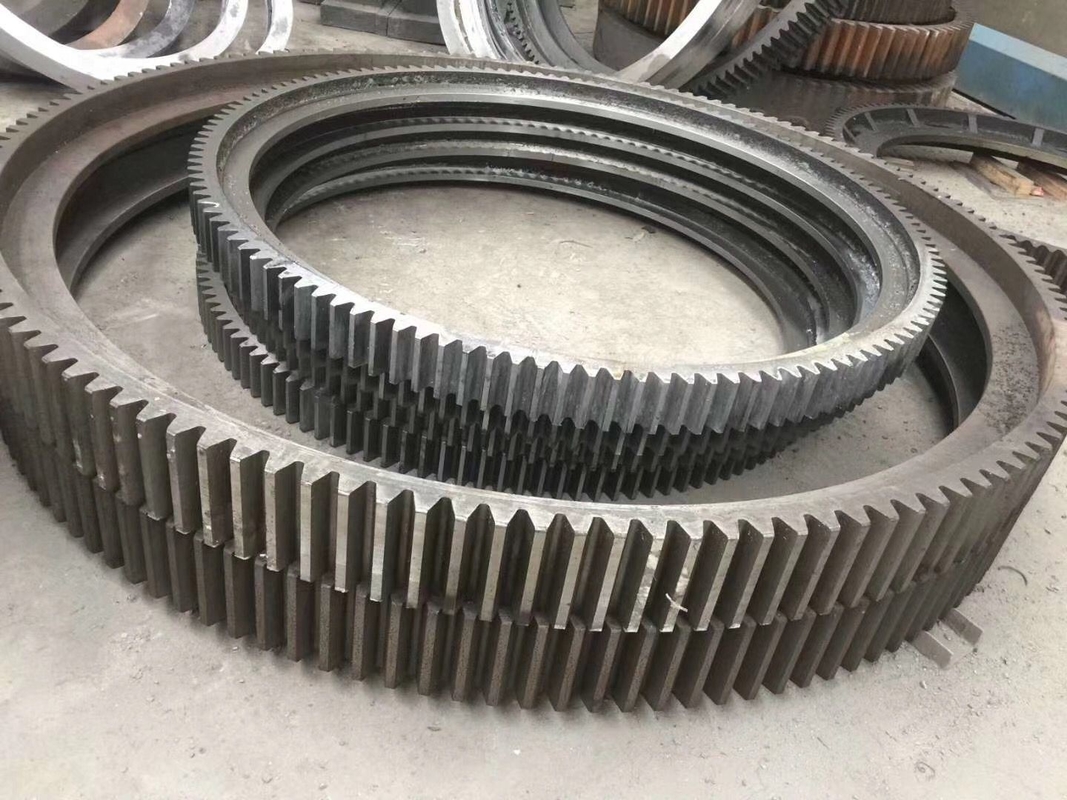

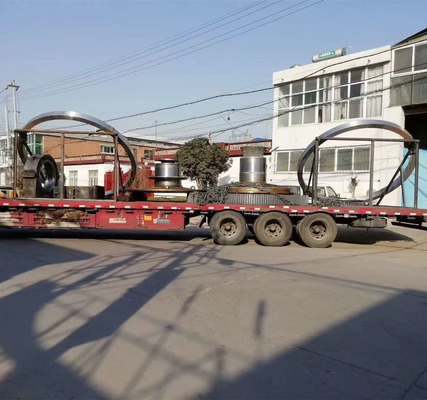

Mining Mill Girth Gear, Pinion Gear, Big Ring Gear With Maximum Diameter 16m
1. Girth Gears: Rotary kiln Girth Gear,ball mill Girth Gear
Girth Gears offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors. These are made available in module range of 10 Module to 70 Module and in minimum diameters of 100 mm to 15000 mm. Further, these comprise maximum weight of 70 MT single pieces. Here the range of hardened & ground gear boxes/gears comprise Worm gear boxes, Helical / Double helical gears/gearboxes, Helical-Bevel gearboxes, Planetary Gearboxes and others.
2. Product parameters of big ring for mill girth gear
| Item | Structural features | Processing measure | Test content |
| Girth Gear |
(1)GS42CrMo4Alloy Steel (corporate proprietary standards) HB 220~240 (2)semi-structured, Y-Spoke |
(1) outer steel refining (R-H argon and vacuum treatment) (4)rough hobbing, release time, repair the joint surface, then fine roll |
(1)castings mechanical properties and chemical composition (internal standard) (2) roughing after sonic testing (3)semi-finishing, finishing after ultrasonic testing and magnetic particle inspection (4) tooth surface magnetic particle inspection, hardness test (5)tooth tolerance check (6) the factory assembly load test to check the accuracy of the size of gear |
3. We provide girth gears in three different designs
Fabricated steel
- forged ring
- rolled plate
Cast steel
Ductile (Nodular) cast iron
Fabricated gears became more common in the past and are constructed with forged steel gear rim materials and electro welded body structure. The rings are manufactured from a whole block of high resistance alloy steel. After the rough machining of the ring, we carry out hardening and tempering heat treatment in order to improve the mechanical characteristic and therefore its relevant performance.
External teeth
Maximum diameter: 16000 mm
Toothed face width: 1700 mm
Maximum module: 45 by hob
Maximum module: 65 gear finishing cutter
Internal teeth
Maximum Diameter: 6500 mm
Maximum module: 25.4
Toothed face width: 400 mm
Forging material process
Forging
Final rolling
Furnace cooling
Control on production
Water quenching
Hardness testing
Rough machining
Ultrasonic testing and dimensional inspection
Final inspection certification
Applications
Our girth gears are applied in the cement and minerals industries:
Various types of horizontal mills
Rotary dryers
Rotary kilns
Any other large gear ring application
