Product Details:
Payment & Shipping Terms:
|
| Materials: | GS42CrMo4 Alloy Cast Steel | Pinion Material: | 17CrNiMo6 Alloy Cast Steel |
|---|---|---|---|
| Used In: | Ball Mill,cement Mill,Raw Material Ball Mill | Advance: | High Bearing Capacity, Smooth Operation And Low Noise |
| Heat Treatment Hardness（HB）: | HB260 ~ 300 | SPEC: | Customize |
| Technology: | Carburizing And Hardening + Grinding Process | Keyword: | Gear Ring,ring Gear,girth Gear,big Gear,large Gear |
| Warranty: | 12 Months | Classification: | Mill Girth Gear |
| High Light: | Customize Ball Mill Girth Gear,Cast Steel Ball Mill Girth Gear,Cast Steel Pinion Gear |
||

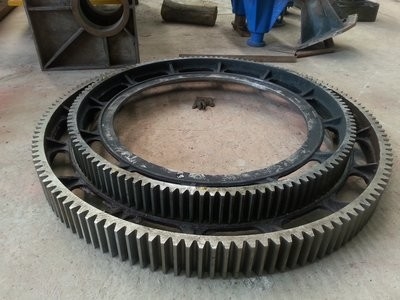

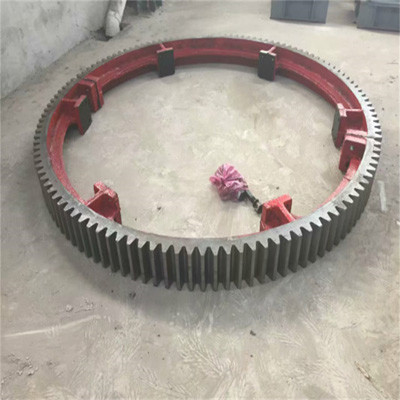

Alloy Cast Steel Customize Ball Mill Girth Gear / Pinion Gear For Mining Equipment
1. Features of mill girth gear customize ball mill gear ring
The helical gear has the characteristics of high bearing capacity, smooth operation and low noise.
The big gear is divided into two halves, and the tooth width is y-shaped to ensure the good rigidity of the gear. Both sides of big gear flange are machined, both can match with cylinder flange, and can be used by turning around. Pinion and shaft are forged as a whole, both ends of shaft are symmetrical, both milling has keyway, can also be used for turning.
2. Introduction of big gear and small gear of mill girth gear
The gear is made of ZG35CrMo alloy cast steel with heat treatment hardness OF HB260 ~ 300. Pinion material is 17CrNiMo6, carburizing and hardening + grinding process, tooth surface hardness HRC57 ~ 61.
(1) Pinion gear
A. Vacuum arc smelting, ladle refining, vacuum degassing materials;
B. Forging in accordance with international standards, ultrasonic inspection forgings;
(2) Big gear
A. Casting adopts full ring riser technology;
B. Use the simulation program to determine the appropriate curing process, determine the appropriate size of the gate, slope and riser, improve casting quality, reduce defects and reduce costs;
C. Precision gear processing equipment, improve the accuracy and gear surface roughness;
D. Finite element analysis of structural stress and deflection deflection of large gear, so as to determine the shape modification of pinion;
E. When the big gear is processed on the machine tool, check the meshing of the pinion after finishing to ensure that the tooth shape and tooth direction of the two are completely consistent.
3. Processing technology measures of mill girth gear customize ball mill gear ring and pinion
| The big gear ring |
⑴ GS42CrMo4 alloy cast steel (enterprise standard) HB 220 ~ 240 The half structure, Y type plate (3) Oblique tooth (4) Reasonable sealing and alignment structure |
⑴ Outside refining of molten steel furnace (argon blowing and R-H vacuum treatment) The special cold mold sand hanging technology is adopted to ensure the density of casting and tooth (3) Normalizing treatment (proprietary technology) to ensure tooth surface hardness (4) After rough hobbing, release aging, repair the joint surface, and then fine rolling ⑸ Homemade hob precision hobbing |
⑴ Mechanical properties and chemical composition of casting blank (internal control standard) The ultrasonic crack detection after rough machining ⑶ half finishing, finishing ultrasonic inspection and magnetic particle inspection (4) Tooth surface magnetic particle inspection, hardness inspection ⑸ Check tolerance of tooth profile ⑹ No-load test of general assembly before delivery, check the meshing accuracy of large and small gears |
| pinion |
⑴ 40CrMnMo alloy forged steel, hard tooth surface The spherical roller bearing (3) Two-way shaft structure |
(1) Hydraulic press forging, ingot utilization rate ≤56% forging ratio ≥3 ⑵ Surface hardening (3) Special self-made grinding hob precision hobbing
|
⑴ Mechanical properties and chemical composition of forging blank ⑵ Ultrasonic inspection after rough machining and half finishing machining The tooth surface magnetic particle inspection, hardness inspection (4) Tooth shape tolerance inspection ⑸ No-load test of general assembly before delivery, check meshing accuracy of big and small gears |
Company Information Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
