Product Details:
Payment & Shipping Terms:
|
| Product Name: | Micro Powder Production System | Model: | MW880 |
|---|---|---|---|
| Roller Number: | 21 | Diameter (mm): | Φ800 |
| Ring Number: | 1 | Main Unit Speed(mm): | 235 |
| Classification: | Ore Grinding Mill | Warranty: | 12 Months |
| High Light: | Micro Powder Ore Grinding Mill,ZincPowder Ore Grinding Mill,Zinc Powder Raymond Mill |
||

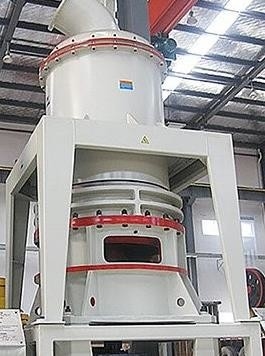

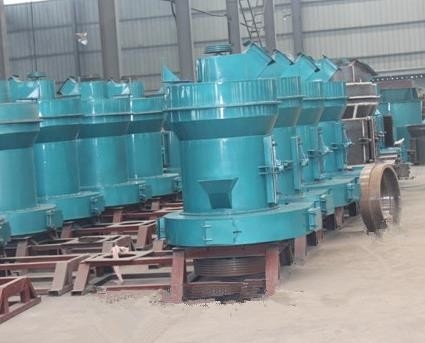

Micro Powder Mill Of Ore Grinding Mill Zinc Powder Raymond Mill
1. Introduction of micro powder grinding mill Ore Grinding Mill
Micro powder grinding mill is an efficient milling equipment which is made by improving fineness classification technology of finished products on the basis of high pressure mill.
2. Application scope of micro powder grinding machine Ore Grinding Mill
Micro powder grinding mill mainly for conventional materials, such as kaolin, limestone, calcite, talc, marble, barite, gypsum, iron oxide red, iron oxide green, aluminum hydroxide, pigment, bentonite, clay, carbon black, such as coal, activated carbon humidity less than 8%, below the mohs hardness at level 6 non flammable material of ultrafine powder processing.
3. Structural characteristics of micro powder grinding mill Ore Grinding Mill
According to user needs can be equipped with hoist, storage bin, electric control cabinet, powder feeder, crusher and other auxiliary equipment. In micro powder mill grinding indoor, roller assembly through the cross arm shaft mounted on the roller hanger, roller hanger and spindle and shovel head fixed connection, pressure spring by pull rod tightly in roller bearing chamber on the outside of the cantilever end, cross arm shaft, for support, by spring pressure roller tightly pressed in the inside of ring circle on the surface, when the motor through a transmission device rotation, The cutter mounted on the tool rest rotates synchronously with the roller, and the roller rotates around itself while rolling on the inner surface of the grinding ring. The analytical machine drives the impeller of the analytical machine to rotate through the motor transmission device, and the speed adjustment of the analytical machine determines the fineness of the powder.
4. Technical Data of micro powder grinding mill Ore Grinding Mill
| Model | MW880 |
| Roller number | 21 |
| Diameter (mm) | Φ800 |
| Ring number | 1 |
| Main unit speed(mm) | 235 |
| Max. feeding size(mm) | 10 |
| Final size (mesh) | 325-2500 |
| Capacity (kg/h) | 4500-400 |
| Overall dimension (m) | 13.9×4×6.5 |
5. Main configuration of micro powder grinding mill Ore Grinding Mill
| No. | Product Name | Spec |
| 1 |
MW880 micro powder grinder |
Main frame(Power:75kw) Separator(Power:18.5kw frequency conversion) Blower(Power:45kw) Cyclone Collector Air Conduit |
| 2 | Hammer crusher |
Model:PC400x600 Power:18.5kw |
| 3 | Elevator |
Model:TH200 Power:3kw |
| 4 | The belt feeder |
Model:300*60*1.8M Power:1.5kw frequency conversion |
| 5 | Party bin | |
| 6 | Piston air compressor |
Model:LGY-2.8/8 Power:15kw |
| 7 | Screw conveyer |
Model:SC219x4m Power:4kw |
| 8 | Packing machine |
Model:JKF-159CH Power:15kw |
| 9 | Electrical control cabinet | Model:Ⅳ |
