Product Details:
Payment & Shipping Terms:
|
Name: | Micro Powder Mill | Type: | MW880 |
---|---|---|---|
Roller Number: | 21 | Diameter: | Φ800 (mm) |
Ring Number: | 1 | Main Unit Speed: | 235 (mm) |
Classification: | Ore Grinding Mill | Warranty: | 12 Months |
High Light: | CE Micro Powder Grinding Mill,Mining Machine Ore Grinding Mill,MW880 Micro Powder Grinding Mill |

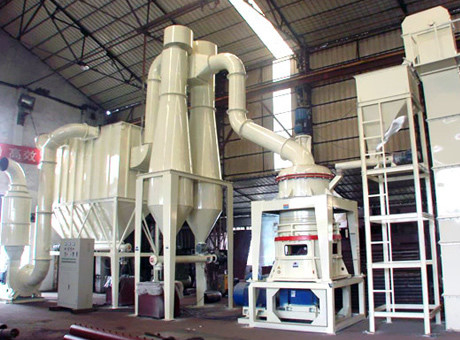

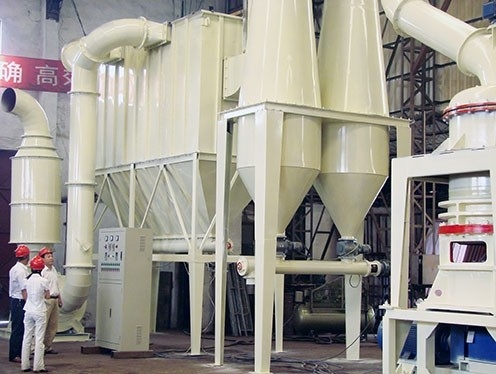

MW880 Micro Powder Grinding Mill Ore Grinding Mill For Mining Machine
1. Introduction of micro powder grinding mill Ore Grinding Mill
Micro powder grinding mill is an efficient milling equipment which is made by improving fineness classification technology of finished products on the basis of high pressure mill.
2. Application scope of micro powder grinding machine Ore Grinding Mill
Micro powder grinding mill mainly for conventional materials, such as kaolin, limestone, calcite, talc, marble, barite, gypsum, iron oxide red, iron oxide green, aluminum hydroxide, pigment, bentonite, clay, carbon black, such as coal, activated carbon humidity less than 8%, below the mohs hardness at level 6 non flammable material of ultrafine powder processing.
3. Technical Data of micro powder grinding mill Ore Grinding Mill
Model | MW880 |
Roller number | 21 |
Diameter (mm) | Φ800 |
Ring number | 1 |
Main unit speed(mm) | 235 |
Max. feeding size(mm) | 10 |
Final size (mesh) | 325-2500 |
Capacity (kg/h) | 4500-400 |
Overall dimension (m) | 13.9×4×6.5 |
4. Main characteristics of micro powder grinding mill Ore Grinding Mill
(1) The high pressure micro powder mill has a large application range compared with the airflow mill.
(2) High pressure micro powder mill compared with the grinding roller on the material of the grinding pressure under the action of high pressure spring to provide 800-- 1200Kg. Energy saving, with the same output and fineness, the system energy consumption is only one third of the airflow mill.
(3) The investment is small, the benefit is high, in the output and fineness of the same case, its price is only one eighth of the airflow mill.
(4) the production process is less, compared with the air flow mill, the air flow mill must first crush the 20mm material to 100 mesh to be processed into ultrafine powder, and the high pressure micro powder mill directly from the feed size below 20mm, can reach the average particle size at one time; 6.5μm to 12.5μm ultrafine powder.
(5) The grinding device adopts the overlapping multistage seal, with good sealing performance.
(6) The dust removal effect of the mill completely meets the national dust emission standard.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
