| Product Name: | Micro Powder Production System | Type: | MW880 Micro Powder Grinder |
|---|---|---|---|
| Main Frame Power: | 75kw | Diameter (mm): | Φ800 |
| Separator Power: | 18.5 Kw | Blower Power: | 45 Kw |
| Classification: | Ore Grinding Mill | Warranty: | 12 Months |
| High Light: | 75kw Grinding Mill Machine,Limestone Micro Powder Grinding Mill,75kw Limestone Powder Grinding Mill |
||

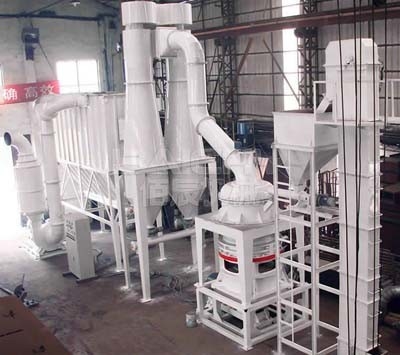

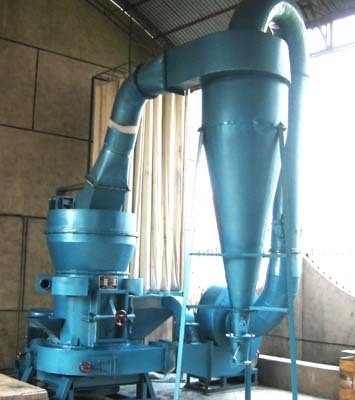

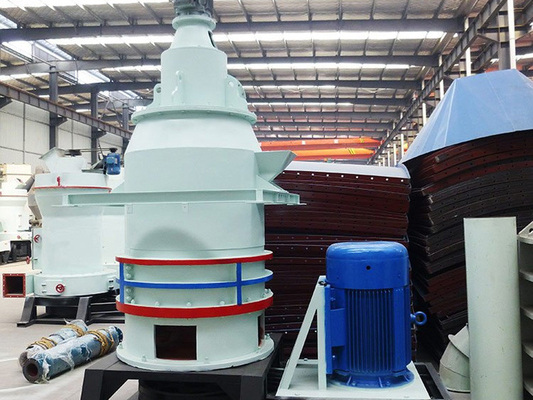

Limestone Micro Powder Grinding Mill Machine Ore Grinding Mill
1. Structural characteristics of micro powder grinding mill Ore Grinding Mill
According to user needs can be equipped with hoist, storage bin, electric control cabinet, powder feeder, crusher and other auxiliary equipment. In micro powder mill grinding indoor, roller assembly through the cross arm shaft mounted on the roller hanger, roller hanger and spindle and shovel head fixed connection, pressure spring by pull rod tightly in roller bearing chamber on the outside of the cantilever end, cross arm shaft, for support, by spring pressure roller tightly pressed in the inside of ring circle on the surface, when the motor through a transmission device rotation, The cutter mounted on the tool rest rotates synchronously with the roller, and the roller rotates around itself while rolling on the inner surface of the grinding ring. The analytical machine drives the impeller of the analytical machine to rotate through the motor transmission device, and the speed adjustment of the analytical machine determines the fineness of the powder.
2. Technical Data of micro powder grinding mill Ore Grinding Mill
| Model | MW880 |
| Roller number | 21 |
| Diameter (mm) | Φ800 |
| Ring number | 1 |
| Main unit speed(mm) | 235 |
| Max. feeding size(mm) | 10 |
| Final size (mesh) | 325-2500 |
| Capacity (kg/h) | 4500-400 |
| Overall dimension (m) | 13.9×4×6.5 |
3. Main configuration of micro powder grinding mill Ore Grinding Mill
| No. | Product Name | Spec |
| 1 |
MW880 micro powder grinder |
Main frame(Power:75kw) Separator(Power:18.5kw frequency conversion) Blower(Power:45kw) Cyclone Collector Air Conduit |
| 2 | Hammer crusher |
Model:PC400x600 Power:18.5kw |
| 3 | Elevator |
Model:TH200 Power:3kw |
| 4 | The belt feeder |
Model:300*60*1.8M Power:1.5kw frequency conversion |
| 5 | Party bin | |
| 6 | Piston air compressor |
Model:LGY-2.8/8 Power:15kw |
| 7 | Screw conveyer |
Model:SC219x4m Power:4kw |
| 8 | Packing machine |
Model:JKF-159CH Power:15kw |
| 9 | Electrical control cabinet | Model:Ⅳ |
4. Main characteristics of micro powder grinding mill Ore Grinding Mill
(1) The high pressure micro powder mill has a large application range compared with the airflow mill.
(2) High pressure micro powder mill compared with the grinding roller on the material of the grinding pressure under the action of high pressure spring to provide 800-- 1200Kg. Energy saving, with the same output and fineness, the system energy consumption is only one third of the airflow mill.
(3) The investment is small, the benefit is high, in the output and fineness of the same case, its price is only one eighth of the airflow mill.
(4) the production process is less, compared with the air flow mill, the air flow mill must first crush the 20mm material to 100 mesh to be processed into ultrafine powder, and the high pressure micro powder mill directly from the feed size below 20mm, can reach the average particle size at one time; 6.5μm to 12.5μm ultrafine powder.
(5) The grinding device adopts the overlapping multistage seal, with good sealing performance.
(6) The dust removal effect of the mill completely meets the national dust emission standard.
