| Type: | Girth Gear, Ring Gear | Hardness: | 210~250 HB |
|---|---|---|---|
| Effective Hardening Depth: | 3-5 Mm | Manufacturing Process: | Blank, Rough Machining, Agent Injury, Normalizing Pretreatment |
| Specification: | Customization | Warranty: | 12 Months |
| Classification: | Mill Girth Gear | Advanced: | High Carrying Capacity And Smooth Operation |
| High Light: | Mill Girth Gear With Oblique Tooth,Rotary Kiln Mill Girth Gear,Mining Mill Ring Gear |
||
Ring Gear Mill Girth Gear With Oblique Tooth For Mining Mill And Rotary Kiln
1. Technical requirements of large gear ring for mill girth gear
(1) The surface pretreatment before quenching is normalized, and the hardness should be HB210~250; Mechanical properties are strength limit Rb690MPa, yield limit Rs490MPa, elongation d511%, area reduction w25%, impact toughness value Ak30J. Tooth induction hardening, hardness of HRC50~55; Effective hardening depth 3~5mm.
(2) Ultrasonic inspection shall be carried out on the whole, and the internal quality shall meet the secondary requirements stipulated in GB7233-87 standard; Gear tooth and transition fillet magnetic particle inspection, quality should meet GB/T9444-88 standard requirements.
(3) Uncast rounded corners R5~R10.
(4) Chamfering of both ends and edges along the tooth width. Big gear ring by two half gear ring connected with high strength bolts into a whole gear ring, the joint surface must be in the center of the tooth bottom.
2. Product parameters of big ring for mill girth gear
| The big gear ring |
⑴GS42CrMo4 alloy cast steel (enterprise standard) HB 220 ~ 240 The half structure, Y type plate. (3) oblique tooth. (4) Reasonable sealing and alignment structure. |
⑴ Outside refining of molten steel furnace (argon blowing and R-H vacuum treatment). (2) The special cold mold sand hanging technology is adopted to ensure the density of casting and tooth. (3) Normalizing treatment (proprietary technology) to ensure tooth surface hardness. (4) After rough hobbing, release aging, repair the joint surface, and then fine rolling ⑸ homemade hob precision hobbing. |
⑴ Mechanical properties and chemical composition of casting blank (internal control standard). (2)The ultrasonic crack detection after rough machining. ⑶ half finishing, finishing ultrasonic inspection and magnetic particle inspection. (4) Tooth surface magnetic particle inspection, hardness inspection. ⑸ Check tolerance of tooth profile. ⑹ No-load test of general assembly before delivery, check the meshing accuracy of large and small gears. |
3. Case introduction of large ring gear mill girth gear
On December 14, 2013, workers in the steel making workshop of CITIC Heavy Industries Co., LTD., Luoyang, Henan Province, are using two packages of 226 tons of steel hydrating mill large ring gear.
On the same day, in the first special mill order for the Laos gold mine project of CITIC Heavy Industries in Luoyang, Henan Province, the first large ring gear piece was smoothly cast in the casting steel workshop of the company, which was the first batch of large-scale mining equipment of CITIC Heavy Industries to explore the Laos market in Southeast Asia.
On January 12, 2014, CITIC Heavy Industries successfully processed AGMAQ10 precision large gear ring. "Q10" is an AGMA Grade 10 precision measure of the state of THE art in the manufacture of large gear rings for today's transmissions.

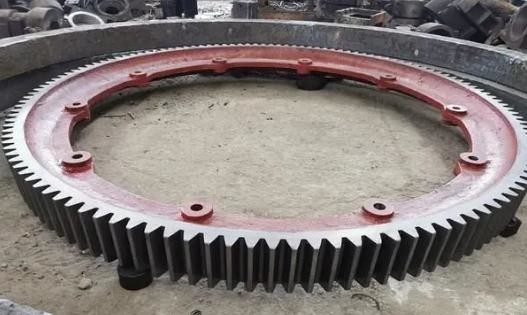

girth gear

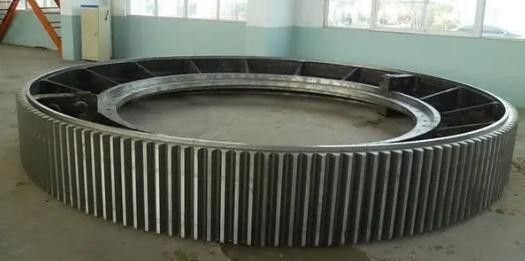

girth gear

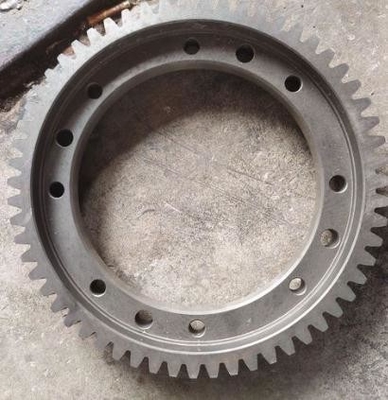

girth gear
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
