Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Cement Ball Mill |
|---|---|---|---|
| Drive Mode: | Center | Capacity(T/H): | 28-32 |
| Motor Power(KW): | 630 | Spec (m): | Φ3×9 |
| Classification: | Ore Grinding Mill | Warranty: | 12 Months |
| High Light: | cement ball mill,cement mill grinding ball |
||

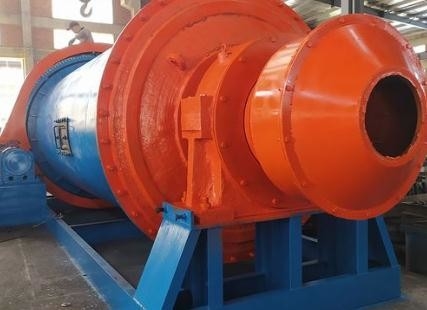

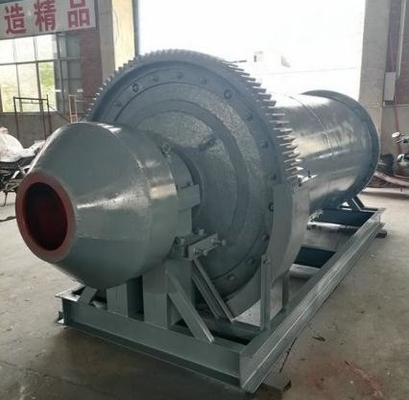

Energy-saving Cement ball mill Ore Grinding Mill For Mining Parts
1. The technical characteristics of large cement mill ore grinding mill

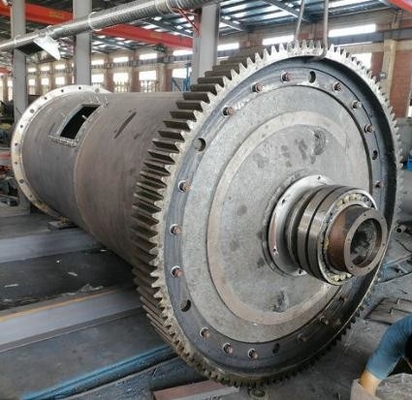

(1) The transmission forms of the drum mill are edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The support mode of static and dynamic pressure bearings at two ends is generally adopted, and fully enclosed self-allocating 1200 line contact "rocker type" bearings are adopted. Single-slide track, double-slide track static and dynamic pressure support mode or full static pressure support can also be adopted.
2. Product parameters of ore grinding mill Cement mill | cement ball mill
| No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note | |||
| Power (kw) | Voltage (V) | L | W | H | ||||||||||
| 1 | Φ2.2×6.5 | 13-14 | 22 | ＜25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
| 2 | Φ2.2×11 | 15-16 | 21 | ＜25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
| 3 | Φ2.2×13 | 16-18 | 21.5 | ＜25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | ||
| 4 | Φ2.4×8 | 15 | 20.8 | ＜25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
| 5 | Φ2.4×13 | 20-23 | 19 | ＜25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
| 6 | Φ2.6×13 | 30-32 | 19.6 | ＜25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
| 7 | Φ3×9 | 28-32 | 17.8 | ＜25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
| 8 | Φ3×11 | 36-40 | 18.9 | ＜25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | ||
| 9 | Φ3×11 | 36 | 17.69 | ＜25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
| 10 | Φ3.2×11 | 40-45 | 17.4 | ＜15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
| 11 | Φ3.5×9.5 | 40 | 18 | ＜20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | ||
| 12 | Φ3.5×11 | 45 | 17.2 | ＜15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | ||
| 13 | Φ3.6×8.5 | 60 | 16.5 | ＜20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output | |
| 14 | Φ3.8×9 | 70-80 | 16.5 | ＜20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | ||
| 15 | Φ3.8×12.5 | 55 | 16.4 | ＜25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
| 16 | Φ3.8×13 | 60 | 16.3 | ＜25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
| 17 | Φ4.2×11 | 120 | 15.75 | ≤3 80% pass | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | With roller press and O-Sepa | ||
| 18 | Φ4.2×11.5 | 130 | 15.99 | ≤3 80% pass | 199 | 138 | Single side double drive | 2800 | 10000 | 18002 | 8962 | 7520 | 219** | With roller press |
| 19 | Φ4.2×11.5 | 130 | 16 | ≤3 80% pass | 199 | 138 | Center | 2800 | 17259 | 4960 | 5600 | 220** | With roller press | |
| 20 | Φ4.2×12.5 | 85 | 16 | ≤25 90% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | with efficient powder separator | ||
| 21 | Φ4.2×12.5 | 145 | 16 | ≤3 80% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | With roller press | ||
| 22 | Φ4.2×13 | 75 | 15.6 | ≤25 90% | 209 | 157 | Edge | 3150 | 174450 | 4880 | 8000 | 255** | with efficient powder separator | |
| 23 | Φ4.2×13 | 150 | 15.6 | ≤3 80% | 209 | 157 | Center | 3150 | 17445 | 4880 | 8000 | 256** | With roller press and O-Sepa | |
| 24 | Φ4.2×13.5 | 80-85 | 15.8 | ≤25 90% | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |||
| 25 | Φ4.2×14 | 95 | 15.6 | ≤25 90% | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |||
| 26 | Φ4.2×14.5 | 95 | 15.8 | ≤25 80% | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |||
| 27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | Edge | 4200 | 6000 | 23200 | 11054 | 6370 | 310** | ||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
