Product Details:
Payment & Shipping Terms:
|
| Name: | Cement Ball Mill,ball Mill | Usage: | In Cement, Silicate Products, New Building Materials |
|---|---|---|---|
| Feeding Size: | ≤25 Mm | Motor Voltage: | 6000 V |
| Drive Mode: | Center | Classification: | Ore Grinding Mill |
| Warranty: | 12 Months | Color: | Custom |
| High Light: | cement ball mill,cement mill grinding ball |
||

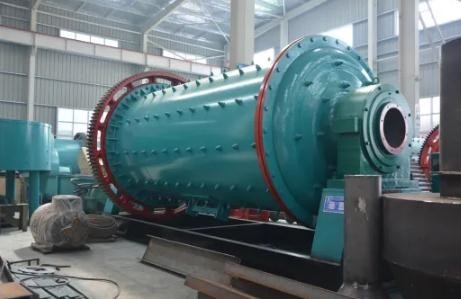

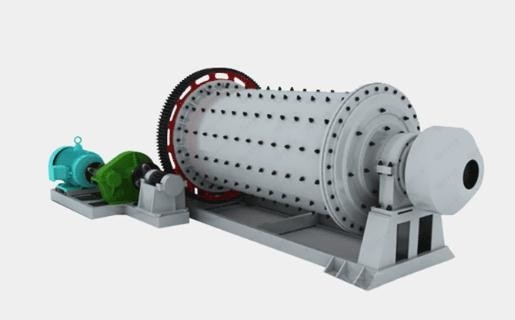

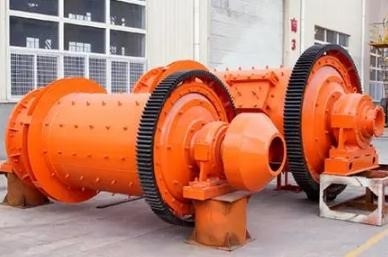

Cement Ball Mill Ore Grinding Mill With Efficient Powder Separator
1. Product parameters of cement mill cement ball Mill ore grinding mill
Luo mine cement mill | cement ball mill :
| No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note | |||
| Power (kw) | Voltage (V) | L | W | H | ||||||||||
| 1 | Φ2.2×6.5 | 13-14 | 22 | ＜25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
| 2 | Φ2.2×11 | 15-16 | 21 | ＜25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
| 3 | Φ2.2×13 | 16-18 | 21.5 | ＜25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | ||
| 4 | Φ2.4×8 | 15 | 20.8 | ＜25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
| 5 | Φ2.4×13 | 20-23 | 19 | ＜25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
| 6 | Φ2.6×13 | 30-32 | 19.6 | ＜25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
| 7 | Φ3×9 | 28-32 | 17.8 | ＜25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
| 8 | Φ3×11 | 36-40 | 18.9 | ＜25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | ||
| 9 | Φ3×11 | 36 | 17.69 | ＜25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
| 10 | Φ3.2×11 | 40-45 | 17.4 | ＜15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
| 11 | Φ3.5×9.5 | 40 | 18 | ＜20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | ||
| 12 | Φ3.5×11 | 45 | 17.2 | ＜15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | ||
| 13 | Φ3.6×8.5 | 60 | 16.5 | ＜20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output | |
| 14 | Φ3.8×9 | 70-80 | 16.5 | ＜20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | ||
| 15 | Φ3.8×12.5 | 55 | 16.4 | ＜25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
| 16 | Φ3.8×13 | 60 | 16.3 | ＜25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
| 17 | Φ4.2×11 | 120 | 15.75 | ≤3 80% pass | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | With roller press and O-Sepa | ||
| 18 | Φ4.2×11.5 | 130 | 15.99 | ≤3 80% pass | 199 | 138 | Single side double drive | 2800 | 10000 | 18002 | 8962 | 7520 | 219** | With roller press |
| 19 | Φ4.2×11.5 | 130 | 16 | ≤3 80% pass | 199 | 138 | Center | 2800 | 17259 | 4960 | 5600 | 220** | With roller press | |
| 20 | Φ4.2×12.5 | 85 | 16 | ≤25 90% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | with efficient powder separator | ||
| 21 | Φ4.2×12.5 | 145 | 16 | ≤3 80% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | With roller press | ||
| 22 | Φ4.2×13 | 75 | 15.6 | ≤25 90% | 209 | 157 | Edge | 3150 | 174450 | 4880 | 8000 | 255** | with efficient powder separator | |
| 23 | Φ4.2×13 | 150 | 15.6 | ≤3 80% | 209 | 157 | Center | 3150 | 17445 | 4880 | 8000 | 256** | With roller press and O-Sepa | |
| 24 | Φ4.2×13.5 | 80-85 | 15.8 | ≤25 90% | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |||
| 25 | Φ4.2×14 | 95 | 15.6 | ≤25 90% | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |||
| 26 | Φ4.2×14.5 | 95 | 15.8 | ≤25 80% | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |||
| 27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | Edge | 4200 | 6000 | 23200 | 11054 | 6370 | 310** | ||
Cement Ball Mill Ore Grinding Mill With Efficient Powder Separator
2. Company profile
Company Information Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
Cement Ball Mill Ore Grinding Mill With Efficient Powder Separator
Cement Ball Mill Ore Grinding Mill With Efficient Powder Separator
