Product Details:
Payment & Shipping Terms:
|
| Product Name: | SAG Mill\Autogenous Mill | Specifications: | 2.4 X1.0 ~ 12 X11. 0 M |
|---|---|---|---|
| Motor Power: | 240-27000 Kw | Drive Mode: | Edge |
| Working Speed: | 9.2-16.2 R/min | Suitable: | Mining, Construction, Machinery |
| Port: | Qingdao, Shanghai, Tianjin | Classification: | Ore Grinding Mill |
| Color: | Custom | ||
| High Light: | Luo Mine AG Mill,216 M3 Autogenous Grinding Mill,5.6 M3 Autogenous Grinding Mill |
||

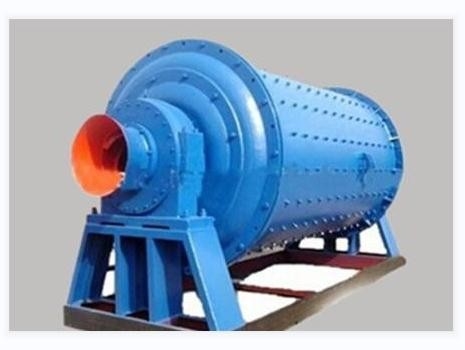

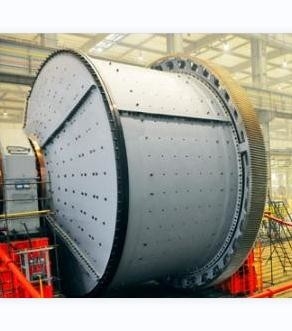

Ore Grinding Mill Of Effective Volume 5.6 ~ 216 M³ Autogenous Mill And SAG Mill
1. Luo mine AG Mill | SAG Mill of ore grinding mill products is introduced

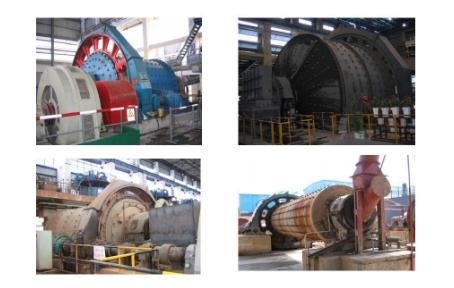

Luo mine AG Mill | semi autogenous grinding machine typical products: complete cooperation with Fuller company to make 1992 Ф 5.5 x 8.5 m the overflow type ball mill; With the diameter of 5.03×6.4m export ball mill completed in 1993; In 2001, the diameter of 4.27×6.1m export large mine mill was developed. In 2004, we cooperated with Metso to manufacture the largest semi-autogenous mill with Φ8.53×3.96. In August 2005, it was contracted by Jinchuan Group with the diameter of 5.5×8.5m overflow ball mill. In May 2006, the company contracted a Φ5.49×8.8m overflow ball mill for Anshan Steel Group. In 2006, it cooperated with Meizuo to manufacture Kunsteel Dahongshan autogenous mill. In July 2006 for Ling Steel Group contracted Φ8.0 ×2.8 m automill.
2. Luo mine AG Mill | semi autogenous grinding machine specifications:(Ore Grinding Mill)
Taken from the mill | semi autogenous grinding machine: specifications from 2.4 x1.0 ~ phi phi 12 x11. 0 m, the effective volume of 5.6 ~ 216 m3 of various configurations of a variety of specifications;
3. Product parameters of ore grinding mil
Technical parameters of Luomine semi-autogenous mill
|
Diameter of cylinder |
Length of cylinder |
Effective volume (m3) |
Working speed (r/min) |
Main motor power (kw) |
| 4000 | 1600-3600 | 19-42 | 16.2 | 240-540 |
| 4500 | 1800-4100 | 27-61 | 15.3 | 360-830 |
| 5000 | 2000-4500 | 38-83 | 14.5 | 530-1200 |
| 5500 | 2200-5000 | 51-112 | 13.8 | 740-1700 |
| 6100 | 2400-5500 | 69-152 | 13.1 | 1050-2400 |
| 6700 | 2700-6000 | 93-201 | 12.5 | 1500-3300 |
| 7300 | 2900-6600 | 120-264 | 12 | 2000-4500 |
| 8000 | 3200-7200 | 160-347 | 11.4 | 2800-6200 |
| 8600 | 3400-7700 | 197-429 | 11 | 3500-7900 |
| 9200 | 3700-8300 | 246-530 | 10.7 | 4500-10000 |
| 9800 | 3900-8800 | 296-640 | 10.3 | 5600-12500 |
| 10400 | 4200-9400 | 359-770 | 10 | 7000-15400 |
| 11000 | 4400-9900 | 422-909 | 9.8 | 8400-19000 |
| 11600 | 4600-10400 | 492-1064 | 9.5 | 10000-22000 |
| 12200 | 4900-11000 | 580-1246 | 9.2 | 12000-27000 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
