Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product: | Laterite Nickel-Iron Rotary Kiln |
|---|---|---|---|
| Classification: | Metallurgy Machine | SPEC: | φ4.4×100m, φ5.2×118m, φ 4.5×110, φ 4.5×110. |
| Kiln Body: | High Quality Carbon Steel Or Alloy Steel Plate | Suitable: | Laterite Nickel Iron |
| Keyword: | China Rotary Kiln | Warranty: | 12 Month |
| High Light: | Rotary Kiln Metallurgy Machine,Laterite Nickel Iron Rotary Kiln |
||

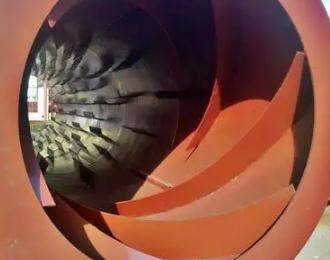

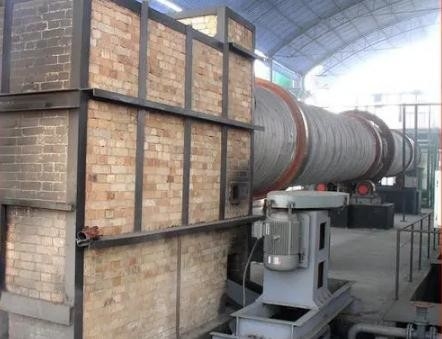

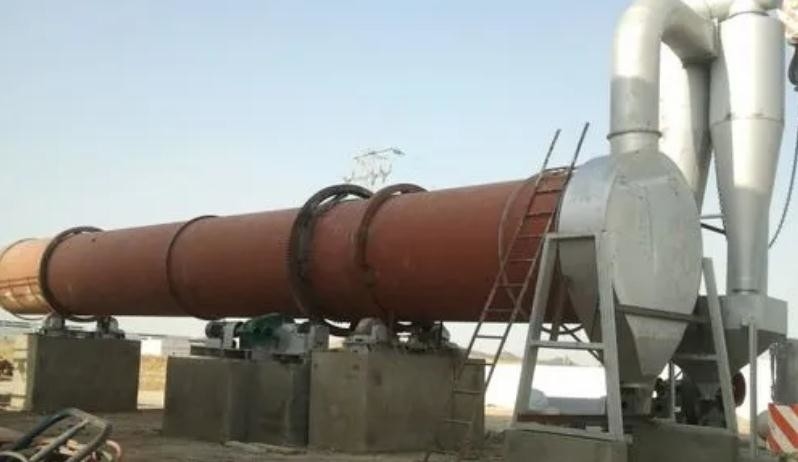

Metallurgy Machine Laterite Nickel-Iron Rotary Kiln production line
1. Introduction of rotary kiln metallurgy machine
Luo mine adopts domestic advanced technology to develop large laterite nickel-iron rotary kiln series products, which can meet the supporting production line of large laterite nickel smelting project. Company has the domestic first-class laterite nickel iron rotary kiln wu development research and design team, perfect test and detection methods of laterite nickel iron rotary kiln and superior laterite nickel iron manufacturing equipment and manufacturing technology of rotary kiln, has shaped into a complete laterite nickel iron rotary kiln design, manufacture, installation and commissioning services for the integration of technology and the production system.
2. Luo Mine laterite nickel-iron rotary kiln common specifications and models of metallurgy machine
φ4.4×100m, φ5.2×118m, φ 4.5×110, φ 4.5×110.
3. Technical parameters of laterite nickel-iron rotary kiln of metallurgy machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×110 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
Company Information Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
