| Name: | Laterite Nickel Ore Rotary Kiln | Thrust Roller Form: | Hydraulic Pressure |
|---|---|---|---|
| SPEC: | φ4.4×100m, φ5.2×118m, φ 4.5×110, φ 4.5×110. | Slope: | 3.5 % |
| Production Capacity: | 1400 Tpd | Motor Power KW: | 2X200KW |
| Warranty: | 12 Month | Classification: | Metallurgy Machine |
| High Light: | 1400Tpd Ore Rotary Kiln,Hydraulic Pressure Ore Rotary Kiln |
||

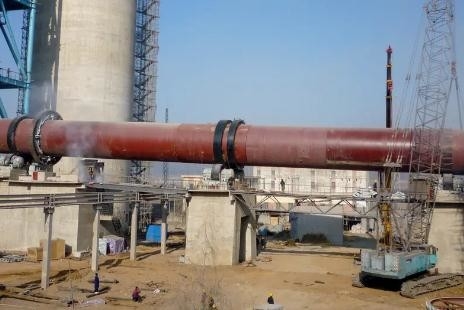

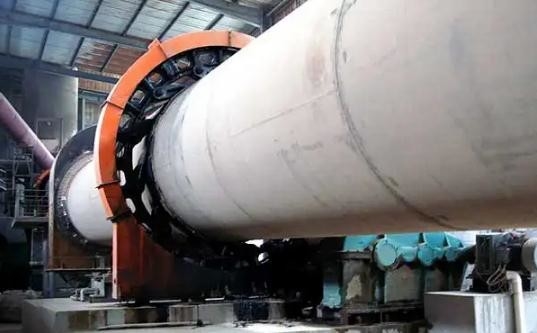

1400Tpd Laterite Nickel Ore Rotary Kiln Metallurgy Machine Mining Machine
1. Introduction of laterite nickel rotary kiln metallurgy machine
Large-scale roastery reduction rotary kiln is one of the key equipment in the whole laterite nickel smelting process. The ore enters the rotary kiln after drying, and is heated to 800℃ in the rotary kiln to remove the surface moisture and water of crystallization, and partially reduce the iron, nickel and cobalt oxides in the ore, and then enter the electric furnace for melting.
2. Advantages of laterite nickel rotary kiln metallurgy machine
(1) The main source of energy for smelting is coal, not expensive coke or electricity.
(2), the free choice of raw materials, available in Southeast Asia all kinds of laterite nickel ore.
(3), the production of high nickel ferric nickel quality (containing Ni20% or so), can be directly used as stainless steel production material.
(4), at the same time can be used as molten steel melting coolant.
3. Technical parameters of laterite nickel-iron rotary kiln metallurgy machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×110 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
