| Condition: | New | Product Name: | Laterite Nickel-Iron Rotary Kiln |
|---|---|---|---|
| Power: | 2x200 Kw | Slope: | 3.5 % |
| Production: | 1400 Tpd | Rev: | 0.857-2.57 R/min |
| Warranty: | 12 Months | Classification: | Metallurgy Machine |
| High Light: | Ore Rotary Kiln 1400 Tpd,2x200 KW Ore Rotary Kiln |
||
Power 2×200 KW Metallurgy Machine Laterite Nickel Ore Rotary Kiln
1. Structure of laterite nickel rotary kiln metallurgy machine

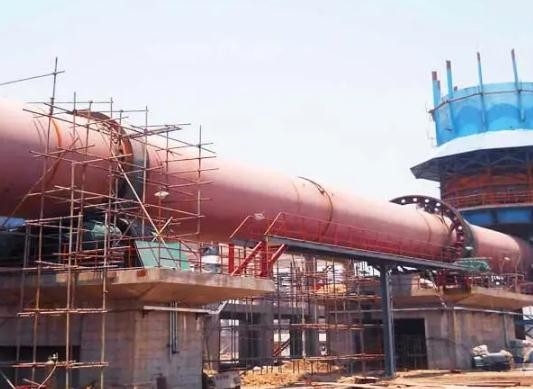

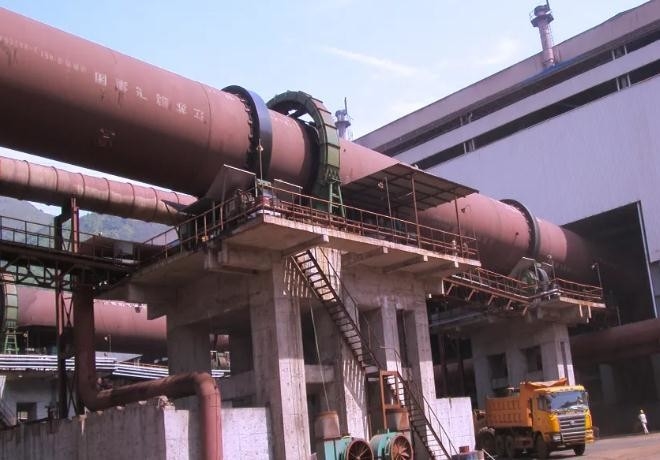

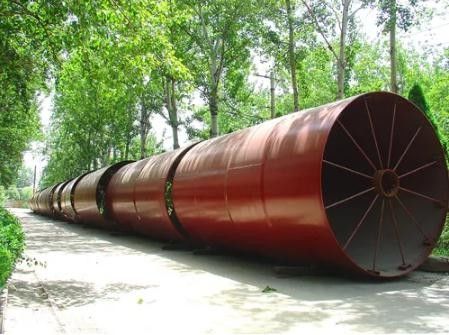

Nickel ore rotary kiln is composed of cylinder body, rotating device, support, retaining wheel supporting device, kiln lining, kiln tail, kiln seal, kiln head cover and fuel device. The kiln cylinder is a heated rotating part, made of high quality carbon steel plate coil welding, the cylinder is supported on the supporting rotating device through the wheel belt, and one or several supporting devices are provided with a mechanical or hydraulic retaining wheel to control the axial movement of the cylinder; The transmission decoration makes the cylinder rotate at the speed required by the process through the tooth ring located in the middle of the cylinder; Due to the need of installation and maintenance, the large rotary kiln of Jinyang Nickel mine is equipped with an auxiliary transmission device for the kiln body to turn at a very low speed. In order to prevent cold air from entering and flue gas and dust from spilling out of the cylinder, reliable sealing devices for kiln tail and kiln head are provided at the feed end and discharge end of the cylinder.
2. Advantages of laterite nickel rotary kiln metallurgy machine
(1) The main source of energy for smelting is coal, not expensive coke or electricity.
(2), the free choice of raw materials, available in Southeast Asia all kinds of laterite nickel ore.
(3), the production of high nickel ferric nickel quality (containing Ni20% or so), can be directly used as stainless steel production material.
(4), at the same time can be used as molten steel melting coolant.
3. Technical parameters of laterite nickel-iron rotary kiln metallurgy machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | Velocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ4.5×110 | SBYH206.0 | 0.857～2.57 | 3.5 | 1400 | 2×200 | hydraulic pressure | slide | 903.1 | twin drive | ||||
| 2 | Φ4.5×100 | SBYH241.0G | 0.857～2.57 | 3.5 | 1510 | 2×200 | hydraulic pressure | slide | 884 | twin drive | ||||
| 3 | Φ4.5×110 | SBYH56.0 | 0.857～2.57 | 4 | 1680 | 2×200 | hydraulic pressure | slide | 912 | twin drive | ||||
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
