Product Details:
Payment & Shipping Terms:
|
| Name: | Oxidation Pellet Rotary Kiln | Bearings Type: | Roll |
|---|---|---|---|
| Condition: | New | Type: | Two Sides Hydraulic Drive |
| Warranty: | 12 Month | Support Block: | 2 |
| Color: | Negotiable | Classification: | Metallurgy Machine |
| High Light: | Oxidized Pellets Calcination Machine,Roasting Calcination Machine |
||

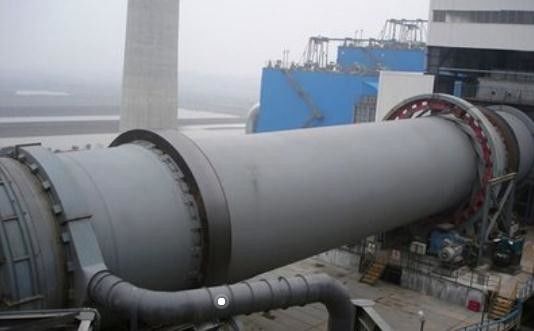

Metallurgy Machine Iron Oxidized Pellets Roasting Calcining Machine
1. Case: The first 3 million ton oxidation pellet production line in China successfully reached the standard and reached production
The first stage production line of Yangzhou Taifu 2×3 million tons oxidized pellets project contracted by Luo Mine successfully reached the standard and reached production.
This project is the first 3 million ton pelletizing production line in China. The smooth production line of the first phase reached the standard and reached the production, which set a new benchmark in the complete pelleting field and laid a foundation for the company to further strengthen the complete pelleting project.

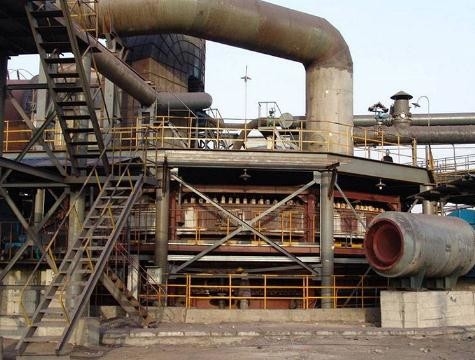

It is estimated that the production capacity of the first phase of the production line reaches 9,600 tons after 24 hours of continuous operation, exceeding the designed capacity of 9,200 tons, which is highly appraised by the owner. In this project, the main equipment of oxidizing pellet production line includes grate 5.2×57 m, rotary kiln 6.4×43 m in diameter, ring cooler 22 m in diameter, disk pelletizer 7.5 m in diameter, rotary drum dryer 4.0×30 m in diameter, 500t/h strong mixer and so on, which fully shows the company's core manufacturing and total package capacity.
2. Oxidation pellet rotary kiln product parameters of Metallurgy Machine
| No. | Model | Figure number | SPEC | Drive | Support |
Thrust Roller form |
Tyre (max) Φ×b(m)(t) |
big gear ring m Φ×(m)G(t) | Weight (t) | |||||||||||||
| Slope (%) | Rev (r/min) |
Production capacity Ten thousand tons t/a (t/h) |
Type | Machine |
Multipoint hydraulic type
|
Block number | Bearings type | |||||||||||||||
| Motor (kW ) | Reducing gear | hydraulic pressure points | Rpm kNm | |||||||||||||||||||
| 1 | Φ4.0×30m | J973A | 3.5 | 0.47～1.4 | 60 (90) |
One side mechanical drive
|
ZSN4-315-092 190KW | ZSY630 Velocity ratio:63 |
2 | roll |
Single hydraulic gear
|
Φ4.81×0.65/0.692 G=22.5 | m=28 Φ6.16×0.4 G=11.74 |
329 | ||||||||
| 2 | Φ5.0×33m | J987 | 4.36 | 0.95 max1.27 |
110 (152) | One side flexible drive | YZP400L2-6 330KW | ZSY630 Velocity ratio:40 |
One side two points | 144 | 2 | roll |
Double hydraulic gear
|
Φ6.1×0.766/0.85 G=50 | m=32 Φ7.296×0.7 G=38 |
646 | ||||||
| 3 | Φ5.0×35m | J987A | 4.25 | 0.3～1.3 | 120 (165) | One side hydraulic drive | Two sides four points | 82.5×4 | 2 | roll |
Single hydraulic gear
|
Φ6.1×0.76/0.87 G=47.7 | m=36 Φ7.343×0.6 G=37.7 |
635 | ||||||||
| 4 | Φ5.9×38m | J991 | 4.25 | 0.5～1.5 | 200 (268) |
Two sides hydraulic drive |
Two sides four points | 87.5×4 | 2 | roll |
Single hydraulic gear
|
Φ7.2×0.96/1.0 G=81.46 | m=40 Φ8.8×0.68 G=46.4 | 960 | ||||||||
| 5 | Φ6.1×40m | J992 | 4.25 | 0.45～1.35 | 220 (305) |
Two sides hydraulic drive |
2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 988 | ||||||||||
| 6 | Φ6.4×45m | 4.25 | 0.45～1.5 | 240 (333) |
Two sides machine drive |
YP2-450L2-6 400×2 | ZSY800 velocity ratio:63 | 2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 1084 | |||||||||
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
