Product Details:
Payment & Shipping Terms:
|
| Product Name: | Oxidation Pellet Rotary Kiln | Application: | For Cement , Lime , Iron Ore Pellets |
|---|---|---|---|
| Condition: | New | Thrust Roller Form: | Single Hydraulic Gear |
| Warranty: | 12 Months | Big Gear Ring M Φ×(m)G(t): | M=28 Φ6.16×0.4 G=11.74 |
| Color: | Negotiable | Classification: | Metallurgy Machine |
| High Light: | Advanced Metallurgy Rotary Kiln,Cement Metallurgy Rotary Kiln |
||
Advanced Rotary Kiln Metallurgy Machine For Cement , Lime , Iron Ore Pellets

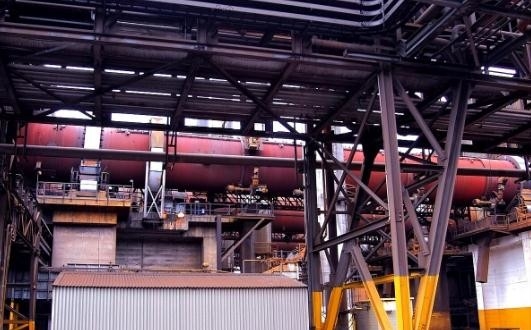

1. Case: The first 3 million ton oxidation pellet production line in China successfully reached the standard and reached production
The first stage production line of Yangzhou Taifu 2×3 million tons oxidized pellets project contracted by Luo Mine successfully reached the standard and reached production.
This project is the first 3 million ton pelletizing production line in China. The smooth production line of the first phase reached the standard and reached the production, which set a new benchmark in the complete pelleting field and laid a foundation for the company to further strengthen the complete pelleting project.
It is estimated that the production capacity of the first phase of the production line reaches 9,600 tons after 24 hours of continuous operation, exceeding the designed capacity of 9,200 tons, which is highly appraised by the owner. In this project, the main equipment of oxidizing pellet production line includes grate 5.2×57 m, rotary kiln 6.4×43 m in diameter, ring cooler 22 m in diameter, disk pelletizer 7.5 m in diameter, rotary drum dryer 4.0×30 m in diameter, 500t/h strong mixer and so on, which fully shows the company's core manufacturing and total package capacity.
2. Oxidation pellet rotary kiln product parameters of Metallurgy Machine
| No. | Model | Figure number | SPEC | Drive | Support |
Thrust Roller form |
Tyre (max) Φ×b(m)(t) |
big gear ring m Φ×(m)G(t) | Weight (t) | |||||||||||||
| Slope (%) | Rev (r/min) |
Production capacity Ten thousand tons t/a (t/h) |
Type | Machine |
Multipoint hydraulic type
|
Block number | Bearings type | |||||||||||||||
| Motor (kW ) | Reducing gear | hydraulic pressure points | Rpm kNm | |||||||||||||||||||
| 1 | Φ4.0×30m | J973A | 3.5 | 0.47～1.4 | 60 (90) |
One side mechanical drive
|
ZSN4-315-092 190KW | ZSY630 Velocity ratio:63 |
2 | roll |
Single hydraulic gear
|
Φ4.81×0.65/0.692 G=22.5 | m=28 Φ6.16×0.4 G=11.74 |
329 | ||||||||
| 2 | Φ5.0×33m | J987 | 4.36 | 0.95 max1.27 |
110 (152) | One side flexible drive | YZP400L2-6 330KW | ZSY630 Velocity ratio:40 |
One side two points | 144 | 2 | roll |
Double hydraulic gear
|
Φ6.1×0.766/0.85 G=50 | m=32 Φ7.296×0.7 G=38 |
646 | ||||||
| 3 | Φ5.0×35m | J987A | 4.25 | 0.3～1.3 | 120 (165) | One side hydraulic drive | Two sides four points | 82.5×4 | 2 | roll |
Single hydraulic gear
|
Φ6.1×0.76/0.87 G=47.7 | m=36 Φ7.343×0.6 G=37.7 |
635 | ||||||||
| 4 | Φ5.9×38m | J991 | 4.25 | 0.5～1.5 | 200 (268) |
Two sides hydraulic drive |
Two sides four points | 87.5×4 | 2 | roll |
Single hydraulic gear
|
Φ7.2×0.96/1.0 G=81.46 | m=40 Φ8.8×0.68 G=46.4 | 960 | ||||||||
| 5 | Φ6.1×40m | J992 | 4.25 | 0.45～1.35 | 220 (305) |
Two sides hydraulic drive |
2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 988 | ||||||||||
| 6 | Φ6.4×45m | 4.25 | 0.45～1.5 | 240 (333) |
Two sides machine drive |
YP2-450L2-6 400×2 | ZSY800 velocity ratio:63 | 2 | roll |
Single hydraulic gear
|
Φ7.4×0.96/1.0 G=83.9 | m=40 Φ9.04×0.68 G=51.5 | 1084 | |||||||||
Advanced Rotary Kiln Metallurgy Machine For Cement , Lime , Iron Ore Pellets
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
