Product Details:
Payment & Shipping Terms:
|
| Model: | Metallurgical Chemical Kiln | Type: | Rotary Kiln |
|---|---|---|---|
| Condition: | New | Application: | Coating, Plastic, Ink |
| Power: | 30kw | Thrust Roller Form: | Hydraulic Pressure |
| Classification: | Metallurgy Machine | Warranty: | 12 Months |
| High Light: | Titanium Dioxide Rotary Kiln,Reasonable Metallurgy Rotary Kiln,Titanium Dioxide Metallurgy Rotary Kiln |
||

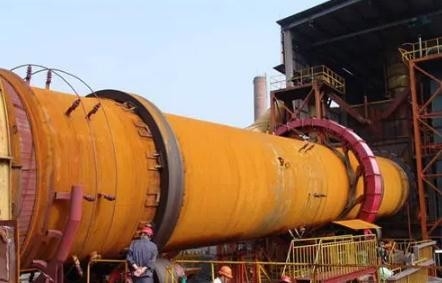

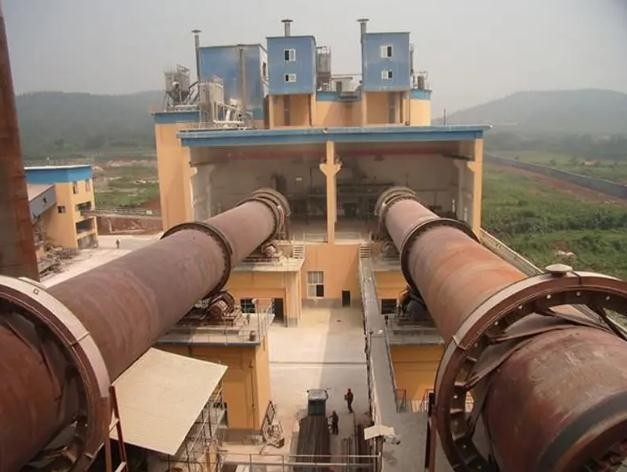

Reasonable Structure Titanium Dioxide Rotary Kiln Metallurgy Machine
1. Metallurgical chemical kiln introduction of Metallurgy Machine
Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in metallurgical industry steel works; Oxidation roasting of chromium and nickel ore; Refractory plant roasted high metallurgical ore and aluminum plant roasted clinker, aluminum hydroxide; Chemical plant roasted chrome ore and chromium ore powder and other minerals.
In the research and development and the application in the field of active lime kiln has achieved fruitful results, with advanced equipment of calcining lab and industrial simulation lab, active lime complete system technology and key equipment technology reached the international advanced level, obtained many achievements of science and technology and patent technology, in various sectors such as steel, alumina, power plant desulfurization has been applied.
2. Titanium dioxide rotary kiln Product parameters of Metallurgy Machine
| No. | Model (m ) | Figure number | SPEC | Main reducing gear | Main motor |
Thrust Roller form |
supporting bearing | Weight (t) | Note | |||||
| Rev r/min | Slope % | Production capacity t/d | Type | iVelocity ratio i | Type | Power kW | Rev r/min | |||||||
| 1 | Φ2.4×38 | (T929) | 0.2 ～0.6 | 2.2 | 30 | Velocity ratio | 30 | Machine | roll | 150 | ||||
| 2 | Φ2.8×53 | J920 | 0.1 ～0.3 | 4 | 50 | 22 | hydraulic pressure | roll | 271 | |||||
| 3 | Φ3.2×55 | J931A | 0.1 ～0.3 | 4 | 67 | 55 | hydraulic pressure | roll | 275.4 | |||||
3. Titanium dioxide rotary kiln Application Scope of Metallurgy Machine
Coating, plastic, ink, paper, rubber, chemical fiber, electronics, ceramics, enamel, welding rod, alloy, glass and other fields.
4. Titanium dioxide rotary kiln Highlight strengths of Metallurgy Machine
(1) Reasonable structure: titanium dioxide rotary kiln is composed of rotary cylinder, supporting device, bearing device with retaining wheel, kiln head, kiln tail sealing device, coal injection pipe device and other parts.
(2) Reliable components: in addition to the main drive, the transmission part of titanium dioxide rotary kiln is also provided with an auxiliary transmission device to ensure that the kiln body can still rotate slowly and prevent the deformation of the kiln body when the main transmission power is interrupted. The head of titanium dioxide rotary kiln is sealed by shell and the tail is equipped with axial contact sealing device to ensure the reliability of sealing.
(3) Stable function: titanium dioxide rotary kiln has the function of heat exchange, and the kiln has a relatively uniform temperature field, which can meet the requirements of heat transfer in each stage of the material formation process.
(4) Excellent sealing performance: titanium dioxide rotary kiln has a reliable combined scale seal at both ends, so that the air leakage coefficient is less than 10%. The use of composite refractory materials, in order to reduce radiant heat loss.
(5) Installation science: the body of titanium dioxide rotary kiln is inclined to a certain level, and the whole kiln body is supported by the supporting wheel device, and there is a retaining wheel device to control the movement of the kiln body up and down.
